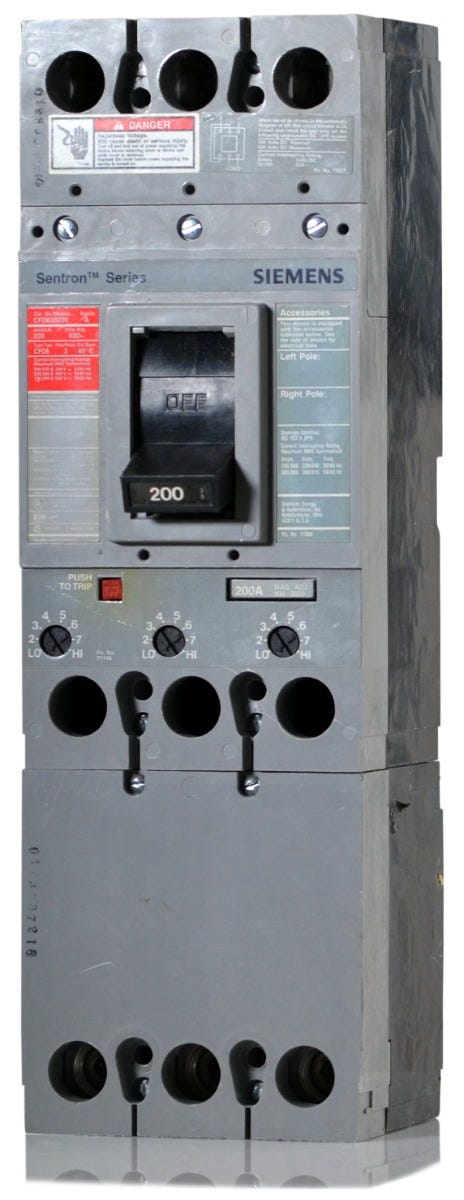

Siemens CFD63B200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Siemens
CFD63B200
Molded Case Circuit Breaker
Brand
Siemens
SKU
CFD63B200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens CFD63B200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens CFD63B200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | CFD63B200 |
| Series | CFD6 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 500VDC |
| Frame Type | CFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs not included (Requires TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Quantity
Siemens CFD63B200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | CFD6 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 500VDC |
| Frame Type | CFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs not included (Requires TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Providing exceptional fault protection, the Siemens CFD63B200 is a 200A, 3-pole current-limiting circuit breaker. Belonging to the Sentron FD frame lineup, this fuseless MCCB restricts let-through energy to safeguard downstream industrial equipment. This unit-mount breaker is compatible with Siemens P1, P2, and P3 panelboards, switchboards, and motor control centers. With a thermal-magnetic trip mechanism, it ensures precise LI response and a 200kAIC rating at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Series | CFD6 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 50kA @ 500VDC |
| Frame Type | CFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs not included (Requires TA1FD350A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
5 answersWhat distribution equipment is compatible with the Siemens CFD63B200?
This unit-mount, bolt-on breaker is designed for installation in Siemens Sentron P1, P2, and P3 panelboards. It can also be integrated into compatible Siemens switchboards, motor control centers, and standalone enclosures.
What wire sizes do the terminal lugs on the CFD63B200 accept?
The standard lugs accommodate copper wire from 6 AWG up to 350 kcmil, and aluminum wire from 4 AWG up to 350 kcmil. Ensure all connections are torqued to the manufacturer specifications printed on the breaker label during installation.
Are the trip settings adjustable on this breaker?
The CFD63B200 features a thermal-magnetic trip unit with a fixed long-time thermal setting for standard overload protection. However, the instantaneous magnetic trip is adjustable, allowing electricians to customize the short-circuit response based on specific load and coordination requirements.
Is the Siemens CFD63B200 a current-limiting breaker?
Yes, it is classified as a current-limiting circuit breaker. During a severe short circuit, it acts rapidly to reduce the peak let-through current and limit let-through energy, which provides enhanced protection for downstream devices and reduces thermal and mechanical stress on the system.
Can the CFD63B200 be installed in direct current (DC) systems?
Yes, this breaker is rated for both AC and DC applications. For DC systems, it supports a maximum voltage of 500VDC and provides an interrupting capacity of 50 kA.
