Siemens CQD335 Molded Case Circuit Breaker
- 35A
- 3 Pole
- DIN Rail
Siemens
CQD335
Molded Case Circuit Breaker
Brand
Siemens
SKU
CQD335
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

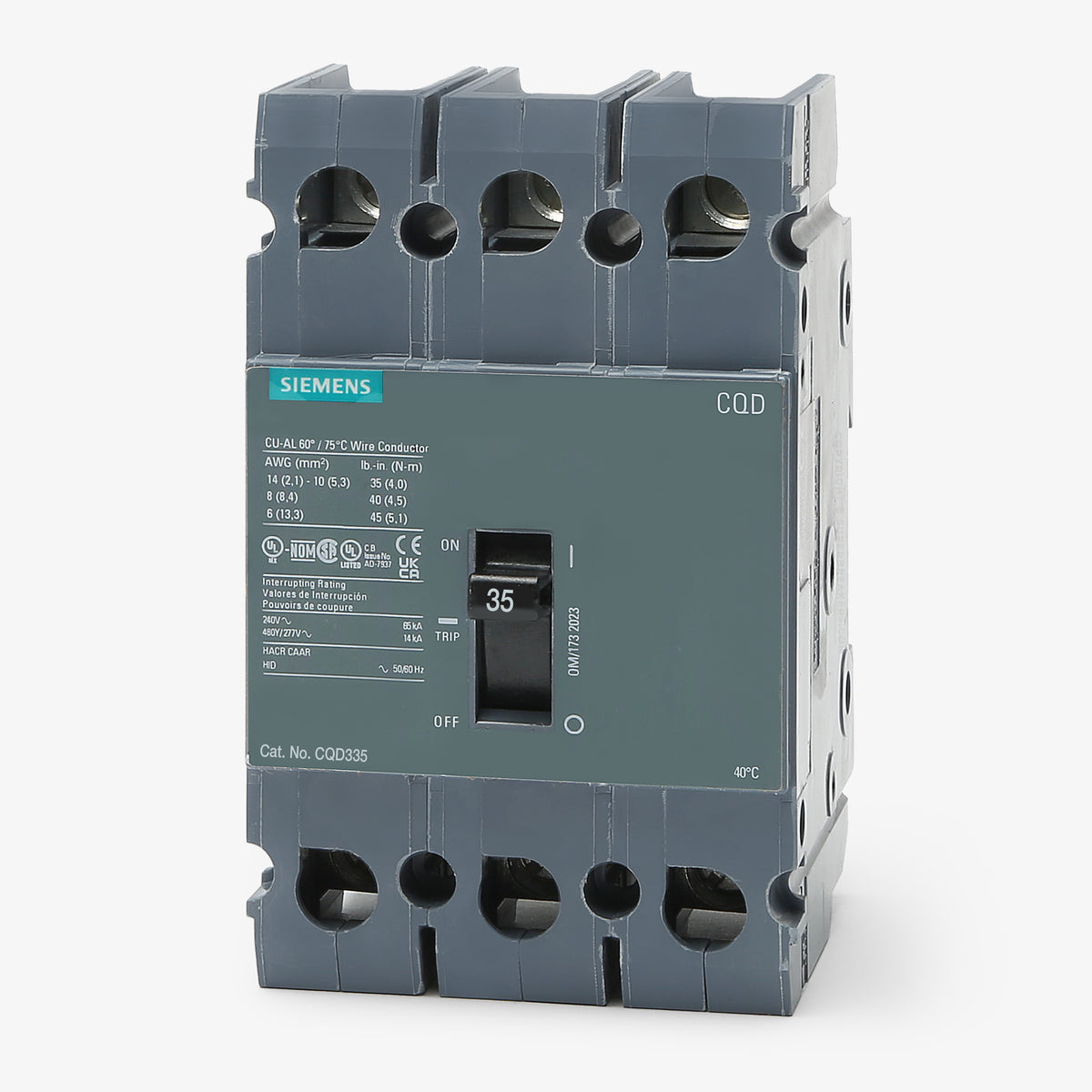

Siemens CQD335 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Built for robust power distribution, this 35A, 3-pole MCCB offers dependable overcurrent protection in a compact DIN-rail format. It utilizes fixed thermal and magnetic trip elements to safeguard commercial and industrial circuits. The Siemens CQD335 installs into DIN rail enclosures and OEM panelboards. It features a feed-thru connection style with included lugs, accommodating a wide range of wire gauges for flexible integration into existing systems.Specifications
| Brand | Siemens |
|---|---|
| Series | CQD |
| Amperage | 35A |
| Poles | 3 |

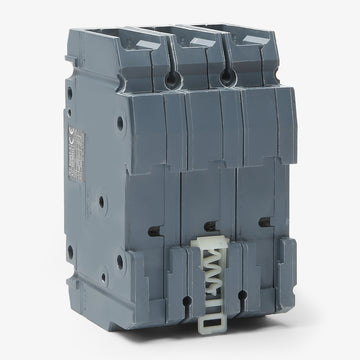

| Mounting Style | DIN Rail |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | CQD |
|---|---|

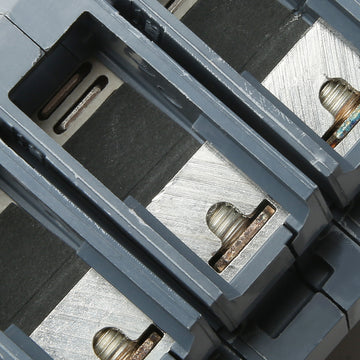

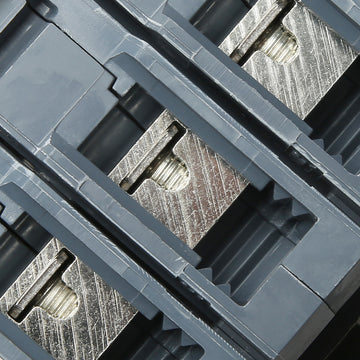

| Terminal Type | Lugs |
| For Use With | DIN Rail Enclosures, OEM Panels |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat is the difference between the Siemens CQD335 and BQD335?
The primary difference is the mounting style. The CQD335 is designed for DIN rail mounting in OEM control panels and enclosures, while the BQD335 is a bolt-on breaker designed for installation in Siemens panelboards.
Is the CQD335 suitable for reverse feed applications?
Yes, Siemens CQD circuit breakers are UL Listed for reverse feed applications. This allows the line and load connections to be wired to either the top or bottom terminals.
Is this breaker HACR rated?
Yes, the Siemens CQD335 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Does the CQD335 provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic circuit breaker that provides overload and short-circuit protection. It does not include ground-fault or arc-fault protection capabilities.
Can I add a shunt trip or auxiliary switch to the CQD335?
Yes, Siemens offers field-installable internal accessories for multi-pole CQD breakers. Options like shunt trips, auxiliary switches, and alarm switches can be attached to the left side of the breaker.
Can the CQD335 be used in DC power systems?
Yes, in addition to its AC ratings, this breaker is rated for use in direct current applications with an interrupting capacity of 14kA at 125/250VDC.
Can this breaker be used on a 3-phase delta 480V grounded B-phase system?
No, Siemens CQD breakers are not suitable for 3-phase delta 480V AC grounded B-phase applications. They are designed for use on solid-grounded wye systems rated up to 480Y/277VAC.
