Siemens CQD325 Molded Case Circuit Breaker
- 25A
- 3 Pole
- DIN Rail
Siemens
CQD325
Molded Case Circuit Breaker
Brand
Siemens
SKU
CQD325
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

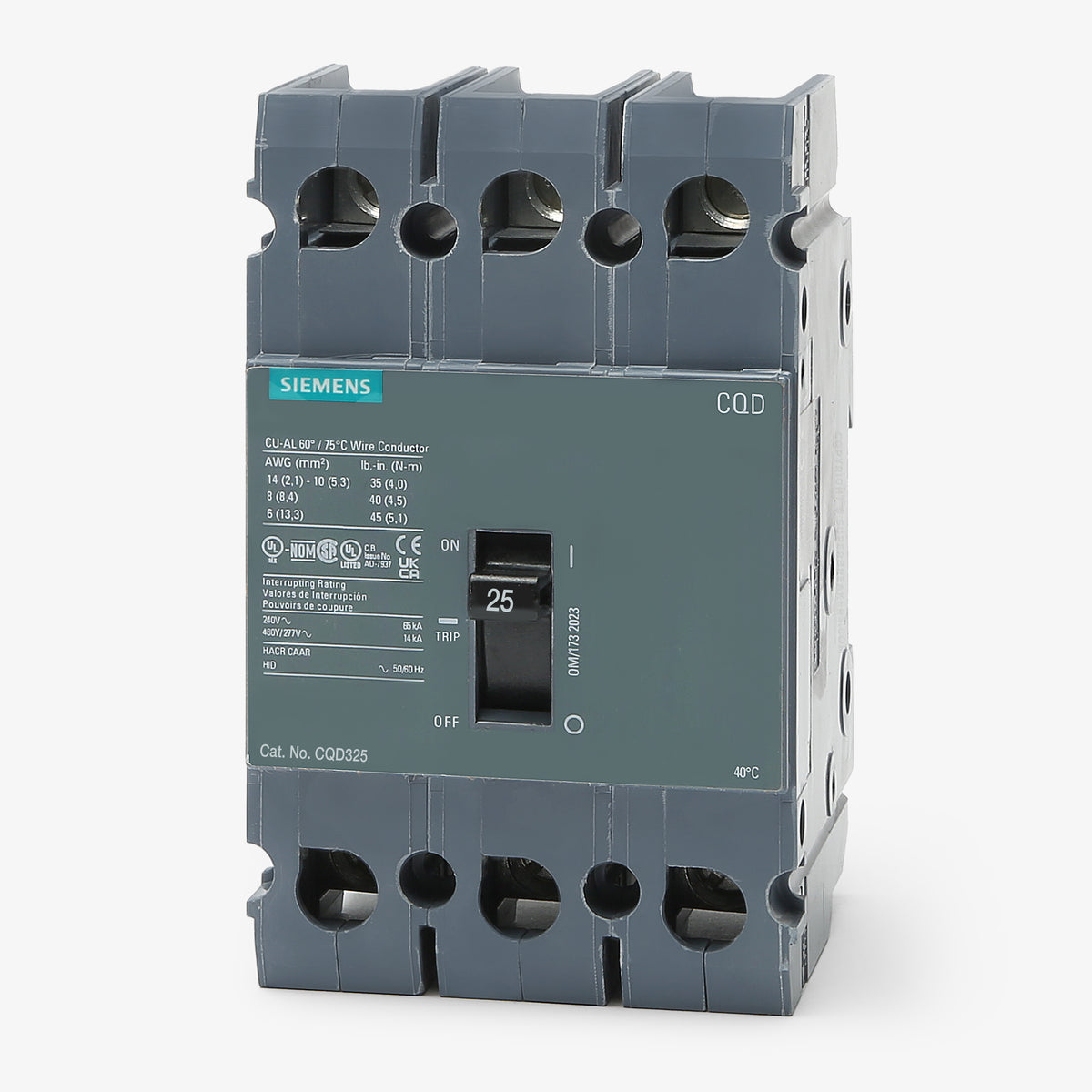

Siemens CQD325 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Engineered for reliable circuit protection, the Siemens CQD325 is a 3-pole, 25A molded case circuit breaker. It uses fixed thermal-magnetic trip functions to safeguard electrical systems. This breaker mounts onto standard DIN rails for straightforward installation. It is perfectly suited for DIN rail enclosures and Siemens P1, P2, and P3 panelboards. Rated 14 kAIC at 480Y/277VAC, the unit is HACR and HID rated. Its reverse feed capability adds wiring flexibility for complex configurations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CQD325 |
| Series | CQD |
| Amperage | 25A |
| Poles | 3 |

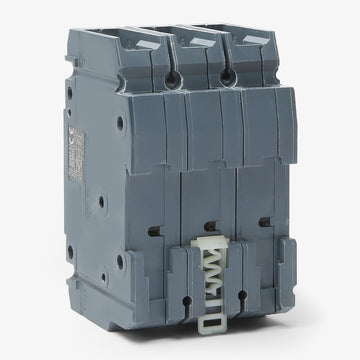

| Mounting Style | DIN Rail |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | CQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Enclosures, Siemens P1, P2, P3 Panelboards |

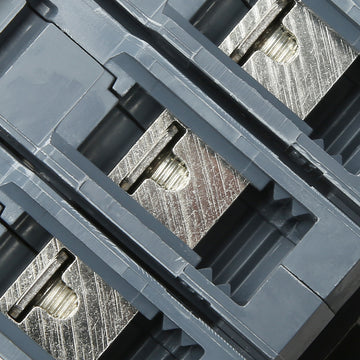

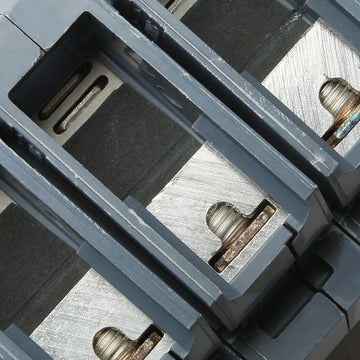

| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, RoHS, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhat is the difference between Siemens CQD and BQD circuit breakers?
While both share the same 1-inch per pole frame size and electrical ratings, they feature different mounting styles. The CQD325 is designed for DIN rail or surface mounting, whereas the BQD series is designed to bolt directly onto panelboard busbars.
Is the Siemens CQD325 suitable for reverse feed applications?
Yes, Siemens CQD series circuit breakers are UL Listed for reverse feed applications. This allows you to wire the incoming power to either the top or bottom terminals without affecting the breaker's protective functions.
Is this 25A CQD breaker HACR rated?
Yes, Siemens CQD breakers from 15A to 100A are HACR rated, making the CQD325 suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Can the CQD325 be used in direct current (DC) systems?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for 125/250VDC systems, providing a 14kAIC interrupting capacity for DC applications.
How does the CQD325 mount inside Siemens P1, P2, or P3 panelboards?
While the CQD325 is primarily a DIN rail mounted breaker, it can be installed in Siemens P1, P2, and P3 panelboards using the appropriate DIN rail mounting kits or chassis adapters designed for those specific panels.
