Siemens CQD360 Molded Case Circuit Breaker
- 60A
- 3 Pole
- DIN Rail
Siemens
CQD360
Molded Case Circuit Breaker
Brand
Siemens
SKU
CQD360
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

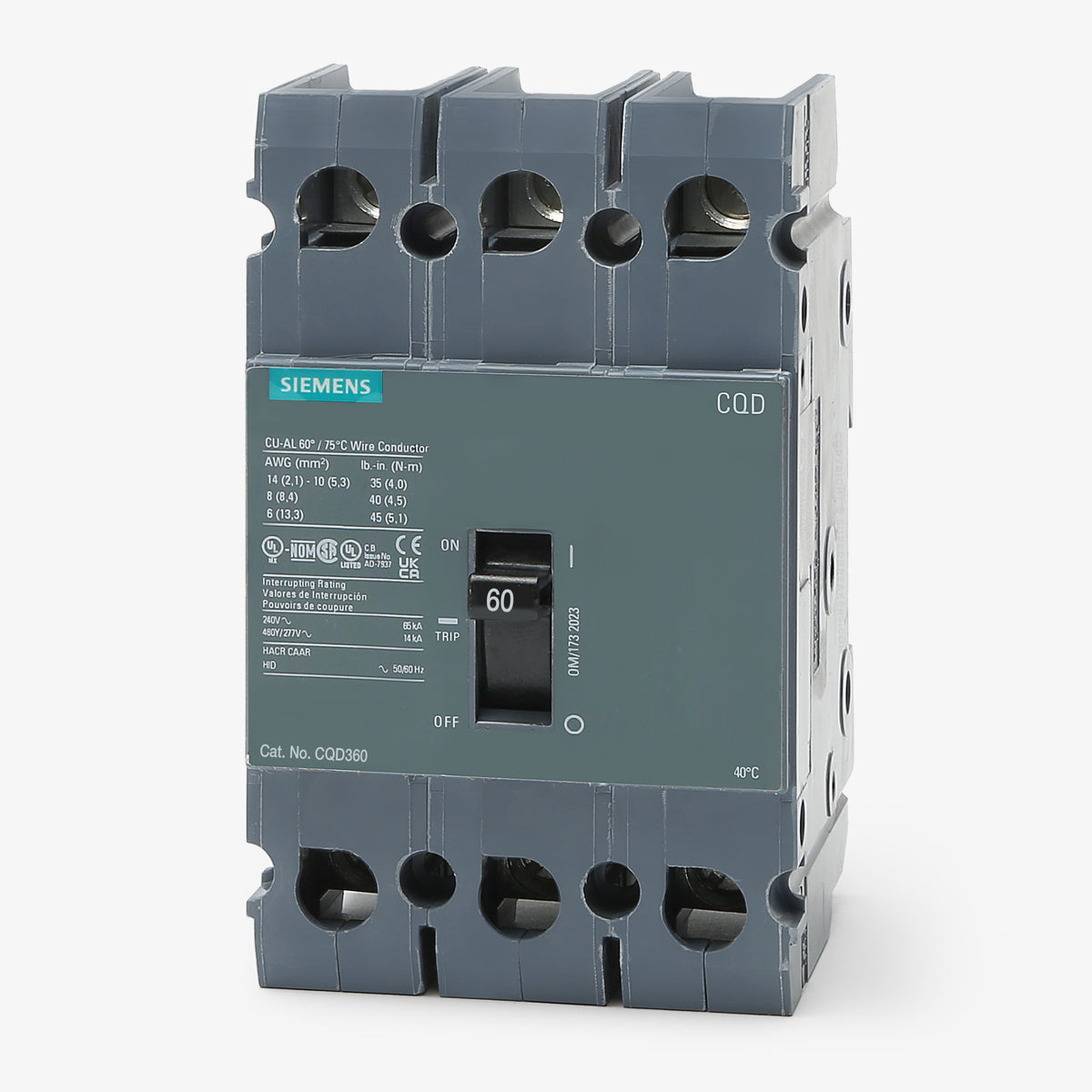

Siemens CQD360 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the Siemens CQD360 delivers reliable thermal-magnetic protection in a compact footprint. This 60-amp, 3-pole breaker is part of the SENTRON BQD/CQD frame group, offering long-time and instantaneous trip functions. Installation is highly adaptable, as the unit mounts onto standard DIN rails or fits seamlessly into Siemens P1, P2, and P3 panelboards. Featuring a 14 kAIC rating at 480Y/277VAC, this breaker is HACR and reverse feed rated for flexibility.Specifications
| Brand | Siemens |
|---|---|
| Part Number | CQD360 |
| Series | CQD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | CQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Enclosures, Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat is the difference between Siemens CQD and BQD circuit breakers?
Both series share the same 1-inch pole spacing and trip characteristics, but their mounting methods differ. The CQD360 is designed for standard DIN rail mounting, whereas the BQD series is built for bolt-on panelboard installations.
Where can I install the CQD360 circuit breaker?

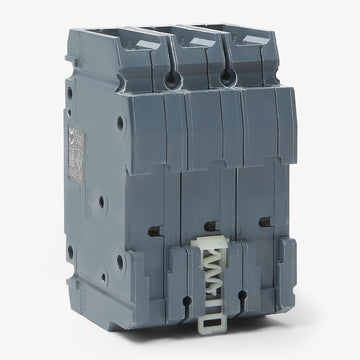

This feed-thru breaker mounts directly onto standard 35mm DIN rails. It is frequently installed in standalone DIN rail enclosures, OEM machine control panels, and compatible Siemens P1, P2, and P3 panelboards.
Is the Siemens CQD360 suitable for reverse feed applications?
Yes, CQD frame molded case circuit breakers are UL Listed for reverse feeding. This provides additional wiring flexibility when designing control panels and specialized distribution setups.
Are line and load lugs included with this breaker?

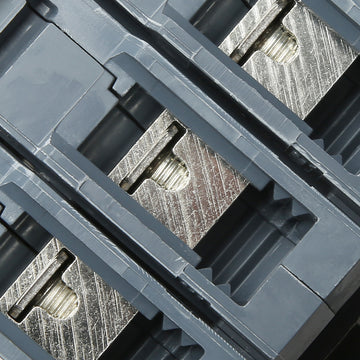

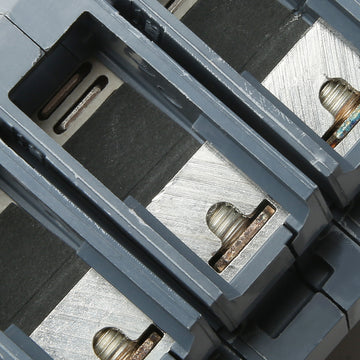

Yes, the CQD360 features a cable-in, cable-out feed-thru design and comes factory-equipped with standard lugs on both the line and load terminals.
Can I add auxiliary switches or shunt trips to the CQD360?
Yes, the CQD frame accommodates operational devices like shunt trips, auxiliary switches, and alarm switches. These internal add-on modules are field-installable and mount on the left side of the breaker.
Is this 60A circuit breaker HACR rated?
Yes, the 3-pole CQD360 carries an HACR rating. It is certified for use in group motor protection for heating, air conditioning, and refrigeration equipment.
Can the CQD360 be utilized in direct current (DC) systems?
Yes, in addition to its standard AC voltage ratings, this thermal magnetic breaker is rated for DC applications up to 125/250VDC, offering a 14kA interrupting capacity for DC loads.
Is this breaker rated for switch duty (SWD) or high-intensity discharge (HID) lighting?
No. In the Siemens CQD and BQD families, SWD ratings are limited to 15A and 20A single-pole breakers, while HID ratings apply only to single-pole breakers up to 50A. This 60A 3-pole breaker does not carry those specific lighting certifications.
