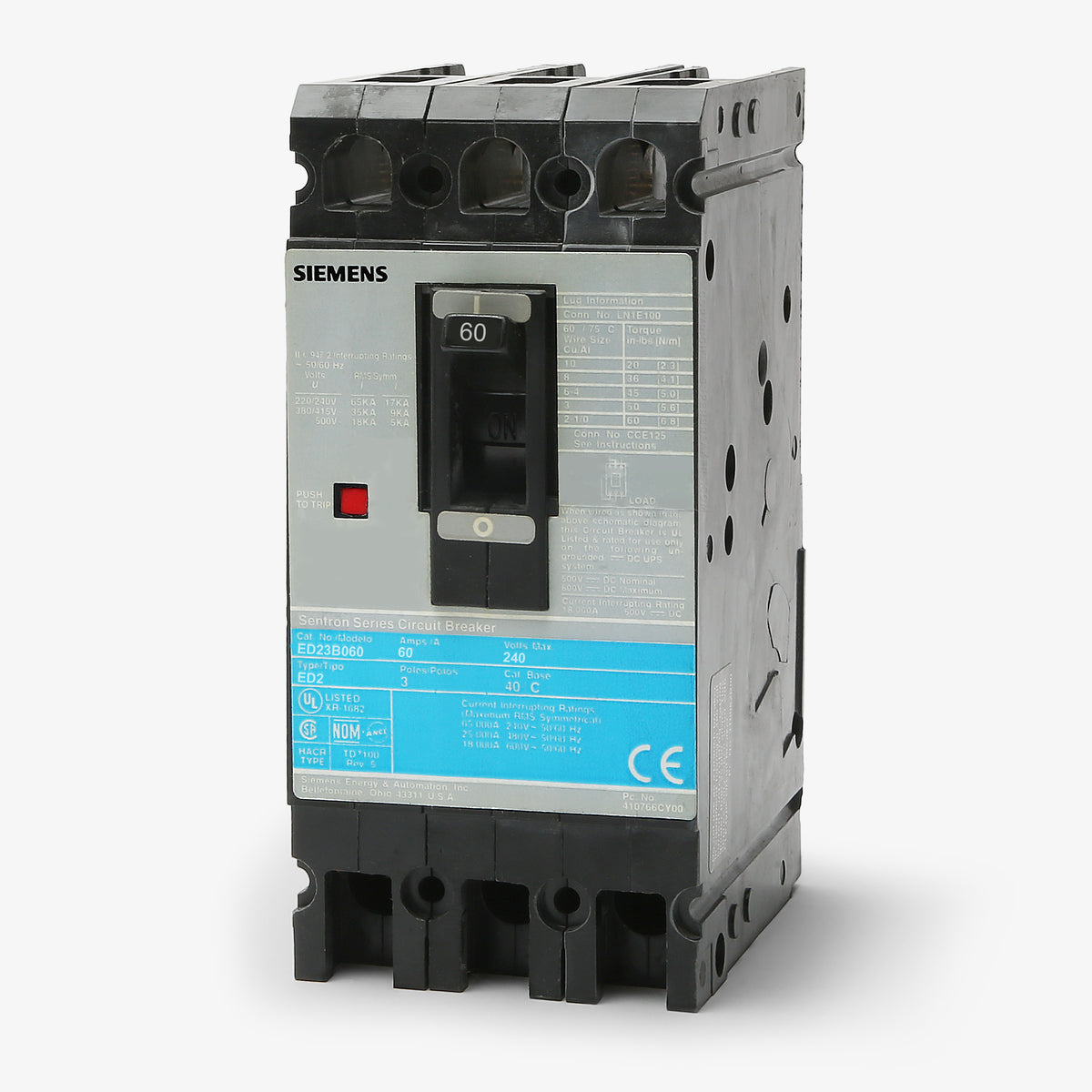

Siemens ED23B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
ED23B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED23B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED23B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED23B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED23B060 |
| Series | ED2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Siemens ED23B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED23B060-R |
| Series | ED2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the ED23B060 is a 3-pole, 60A molded case circuit breaker from the Siemens Sentron family. This ED2 frame device delivers consistent thermal-magnetic trip performance. It installs into Siemens P1, P2, and P3 panelboards, along with SB series switchboards via a secure bolt-on connection. Rated at 10 kAIC at 240VAC, the breaker is HACR rated for HVAC equipment and supports reverse feed capabilities for flexible facility installations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED23B060 |
| Series | ED2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhich Siemens panelboards are compatible with the ED23B060 circuit breaker?
The ED23B060 is designed for installation in Siemens P1, P2, and P3 panelboards, as well as SB series switchboards.
What mounting kit is required to install the ED23B060 in an original Siemens P1 panelboard?
To install this 3-phase ED frame breaker as a main or subfeed in an original Siemens P1 panelboard, you will need the MBKED3 mounting kit.
Can the Siemens ED23B060 replace older ITE or Gould circuit breakers?
Yes, the Siemens ED23B060 is a direct replacement for legacy ITE, Gould, and Siemens-Allis breakers bearing the E23B060 or ED23B060 catalog numbers.
Is the ED23B060 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Is the ED23B060 rated for use in DC electrical systems?
Yes, this breaker is rated for 125/250VDC applications with an interrupting capacity of 5kAIC, making it suitable for specific direct current installations.
