Siemens ED42B060L Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Siemens
ED42B060L
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B060L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

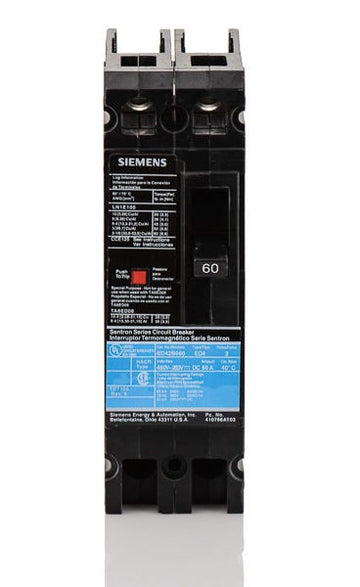

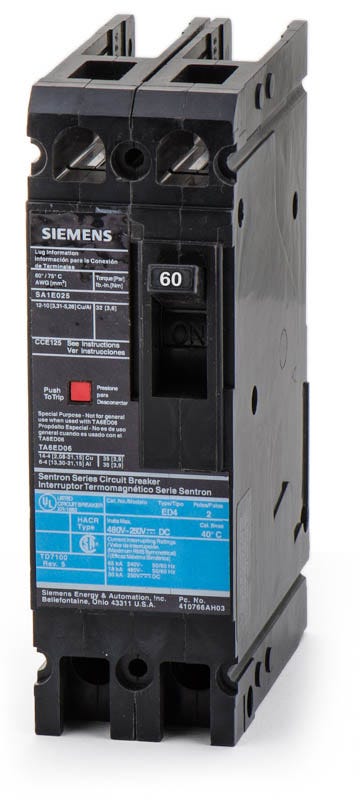

Siemens ED42B060L - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Siemens ED42B060L is a 2-pole, 60A molded case circuit breaker from the Sentron family. It provides robust long-time and instantaneous (LI) thermal-magnetic trip functions to safeguard electrical systems. This unit mount MCCB is designed for individual mounting in enclosures and switchboards. It comes equipped with both line and load lugs, simplifying wiring. The ED4 frame delivers 65kAIC at 240VAC and is replaced by the 3VA5160-4ED26-0AA0.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B060L |
| Series | ED4 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Individual Mounting, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line & Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat enclosures are compatible with the Siemens ED42B060L circuit breaker?
The ED42B060L fits standard Siemens ED-frame enclosures. For a compact indoor NEMA 1 application, use the W53045 enclosure. For harsh environments requiring NEMA 4 or 4X ratings, the ED6SS4 stainless steel enclosure is compatible.
Can the Siemens ED42B060L be reverse fed?
Yes, this ED-frame breaker is suitable for reverse feed applications. You can connect the line power to either the top or bottom terminals without affecting the protective functions of the breaker.
What lug kit is used with the ED42B060L breaker?
This breaker uses the LN1E100 aluminum lug kit, which accommodates wire sizes from 10 AWG to 1/0 AWG for both copper and aluminum conductors.
What is the modern replacement for the ED42B060L?
Siemens has replaced the legacy ED4 frame with the newer 3VA series. The direct replacement for the ED42B060L is catalog number 3VA5160-4ED26-0AA0, which maintains the 60A, 2-pole configuration.
Is the ED42B060L rated for use in HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment branch circuits.
Can this breaker be used in DC applications?
Yes, the ED42B060L is rated for up to 250VDC with a DC interrupting capacity of 30kA, making it suitable for specific industrial DC control and power circuits.
Does the ED42B060L have adjustable trip settings?
No, this breaker features a fixed thermal and fixed magnetic trip unit. Neither the long-time nor the instantaneous trip functions can be adjusted in the field.
Can I install internal accessories like a shunt trip in the ED42B060L?
Yes, the ED4 frame supports field-installable internal accessories, including shunt trips, auxiliary switches, undervoltage releases, and alarm switches.
