Siemens ED42B080L Molded Case Circuit Breaker
- 80A
- 2 Pole
- Unit Mount
Siemens
ED42B080L
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B080L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

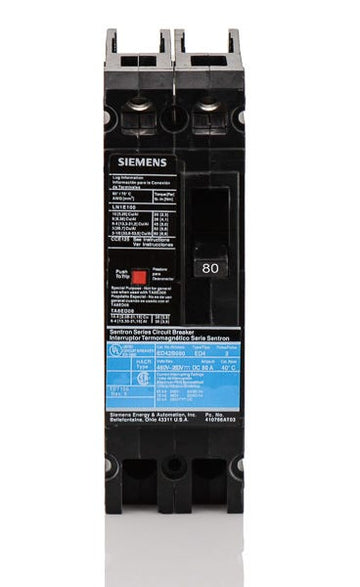

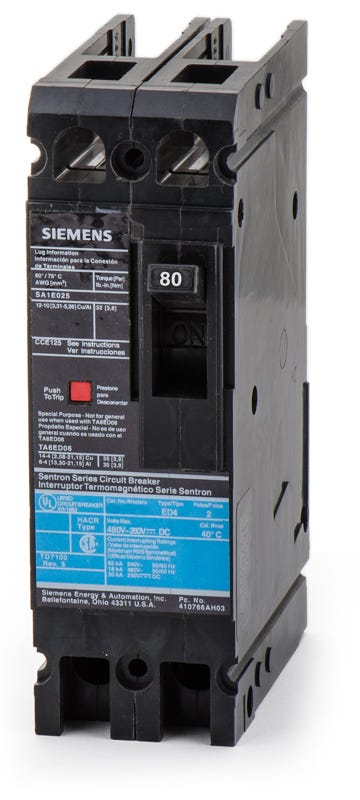

Siemens ED42B080L - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for individual mounting and switchboard applications, this 80A molded case circuit breaker belongs to the robust Siemens Sentron family. It utilizes fixed thermal and magnetic trip elements to deliver dependable long-time and instantaneous (LI) protection for commercial and industrial electrical systems. Featuring a unit-mount design, the ED42B080L comes factory-equipped with LN1E100 line and load lugs to facilitate wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B080L |
| Series | ED4 |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Individual Mounting, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line & Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat does the "L" at the end of the ED42B080L catalog number indicate?
The "L" indicates that the breaker is supplied with factory-installed line and load side lugs. The standard lug kit for this 80A ED-frame breaker is the LN1E100, which accepts 10 to 1/0 AWG copper or aluminum wire.
Is the Siemens ED42B080L HACR rated?
Yes, this ED4 series breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific safety listing.
Does the ED42B080L provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker that provides only long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not include GFCI or AFCI capabilities.
Is the thermal-magnetic trip unit on this breaker suitable for DC circuits?
Yes, the fixed thermal and magnetic trip functions are rated for both AC and DC applications. When used in DC systems, it is rated up to 250VDC with a 30kAIC interrupting capacity.
Can I install the ED42B080L in a standard lighting panelboard?
No, this is a unit-mount, feed-thru breaker designed for individual enclosures, switchboards, or motor control panels. It does not feature the bolt-on or plug-in connections required for standard distribution panelboard chassis.
Are the trip settings adjustable on the ED42B080L?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions.
What frame accessories are compatible with the ED42B080L?
As part of the Siemens Sentron ED frame family, this breaker accepts standard ED-frame internal accessories, such as shunt trips and undervoltage releases, as well as external operating handles.
