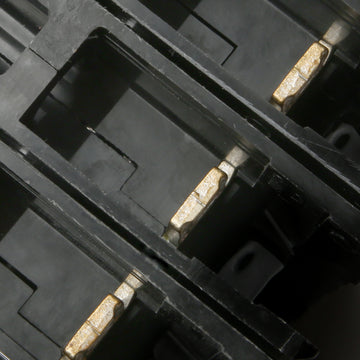

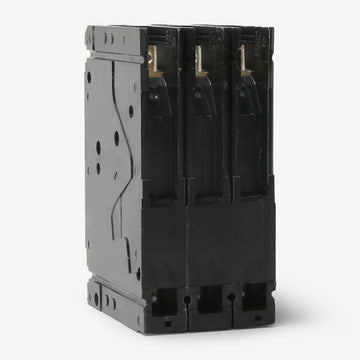

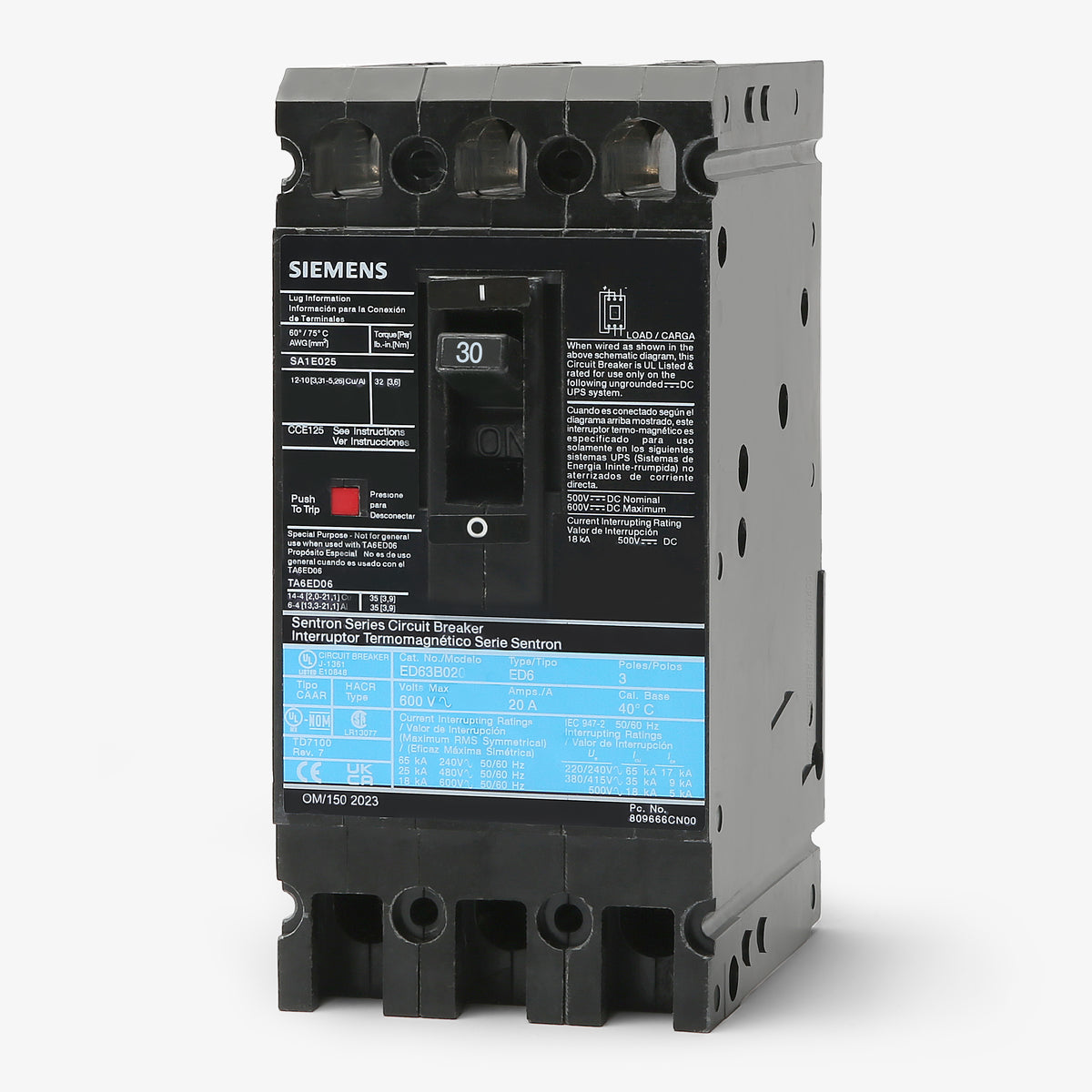

Siemens ED43B030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
ED43B030
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED43B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED43B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED43B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED43B030 |
| Series | ED4 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED43B030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED43B030-R |
| Series | ED4 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
A reliable solution for commercial power systems, the Siemens ED43B030 is a 3-pole, 30A molded case circuit breaker from the Sentron family. It is engineered to bolt into Siemens P1, P2, and P3 panelboards and switchboards. Equipped with fixed thermal-magnetic trip technology, it offers an 18kAIC rating at 480VAC and is HACR rated for HVAC applications. For modern upgrades, this ED4 frame breaker is replaced by the 3VA5130-4ED31-0AA0, which requires an adapter kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED43B030 |
| Series | ED4 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the ED43B030 breaker?
This ED frame breaker bolts directly into Siemens P1, P2, and P3 panelboards, as well as standard Siemens switchboards.
Will the Siemens ED43B030 replace an older I-T-E ED43B030?
Yes. Siemens acquired I-T-E, making this current Siemens Sentron breaker the exact replacement for legacy I-T-E ED43B030 units used in existing panel installations.

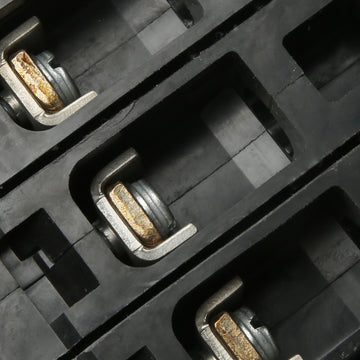

What wire size do the load lugs on the ED43B030 accept?
The standard factory load lugs accommodate 10 AWG through 1/0 AWG copper or aluminum conductors.
What is the modern 3VA series equivalent to the ED43B030?
For 3VA series upgrades, the direct equivalent is catalog number 3VA5130-4ED31-0AA0. Note that installing a 3VA breaker into an existing ED frame space requires a specific adapter kit.
Can I add field-installable accessories to this breaker?
Yes. The ED43B030 supports internal modifications including shunt trips, auxiliary switches, alarm switches, and undervoltage releases.
Is the ED43B030 suitable for reverse-feed applications?
Yes. This thermal magnetic breaker is rated for reverse feed, allowing it to be used safely in back-fed panel configurations.
