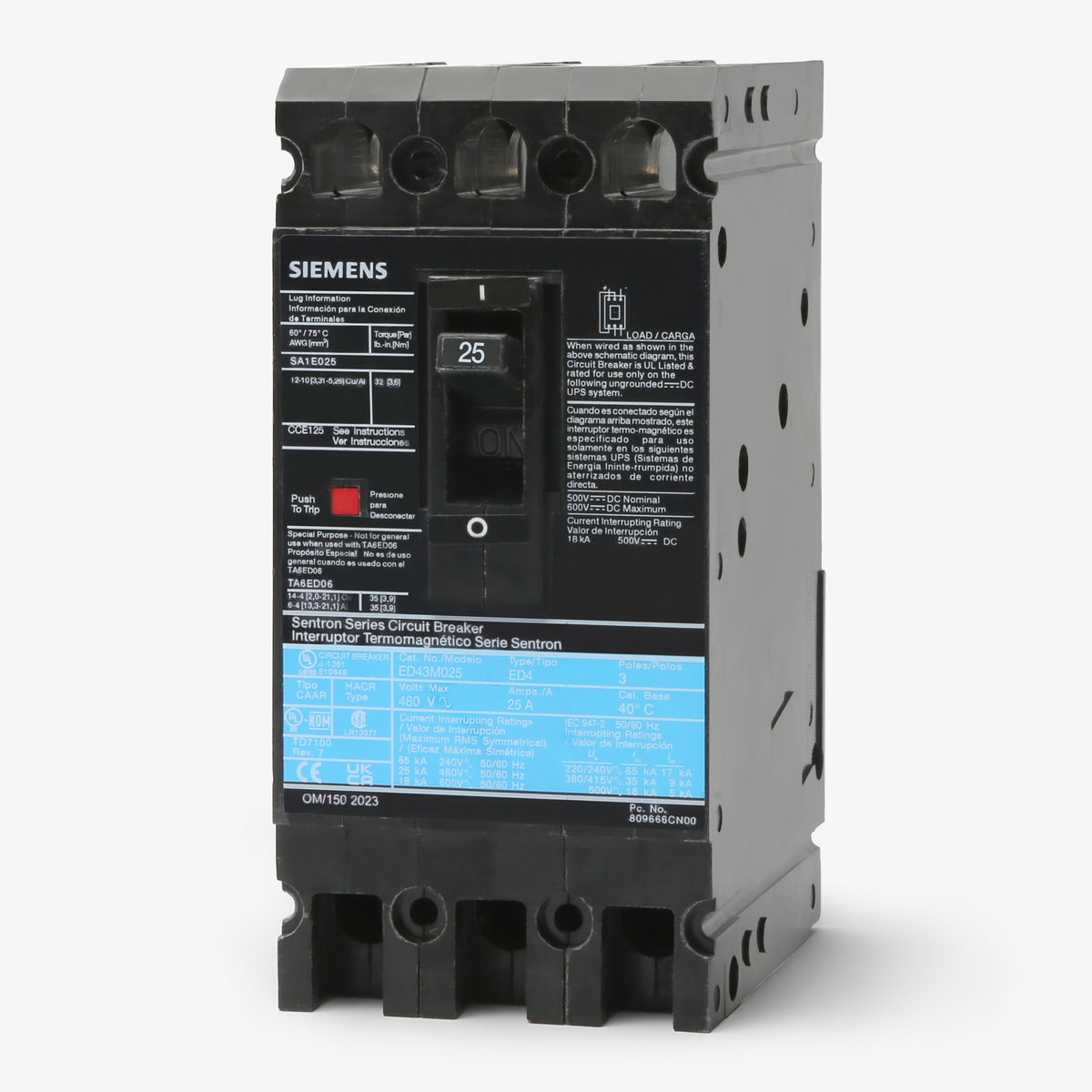

Siemens ED43M025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Siemens
ED43M025
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED43M025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED43M025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for marine and industrial applications, the Siemens ED43M025 is a 3-pole, 25A molded case circuit breaker delivering robust thermal-magnetic protection. This bolt-on breaker installs into Siemens Sentron panelboards and switchboards. It serves as a specialized alternative to the standard ED43B025 for high-temperature environments. Rated 18kA at 480VAC, it features a 50°C ambient calibration. The unit is HACR rated, reverse feed capable, and includes load-side lugs.Specifications
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 50C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, 50C Ambient Calibration |
Product FAQs
6 answersWhat is the difference between the Siemens ED43M025 and the ED43B025?
The ED43M025 features a 50°C ambient calibration specifically engineered for marine and high-temperature industrial environments. The standard ED43B025 is calibrated for standard ambient temperatures.
Which panelboards accept the ED43M025 circuit breaker?
This ED-frame breaker is designed to bolt into Siemens Sentron panelboards and switchboards that are configured to accept ED-frame devices.

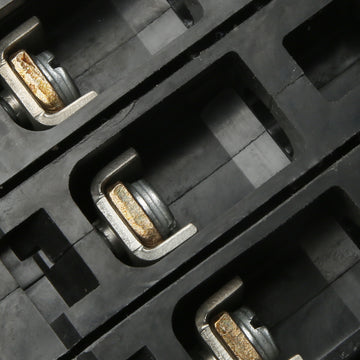

Are load-side lugs included with the ED43M025?
Yes, load-side lugs are included. They accept 14-10 AWG copper or 12-10 AWG aluminum wire.
Can the ED43M025 be reverse fed?
Yes, this circuit breaker is reverse feed capable, allowing flexibility for top or bottom feed wiring configurations.
Is this breaker suitable for HVAC equipment?
Yes, the ED43M025 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Are the trip settings adjustable on the ED43M025?
No, this breaker features a fixed thermal-magnetic trip unit with factory-set long-time and instantaneous (LI) trip functions.
