Siemens ED43B040L Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Siemens
ED43B040L
Circuit Breaker
Brand
Siemens
SKU
ED43B040L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

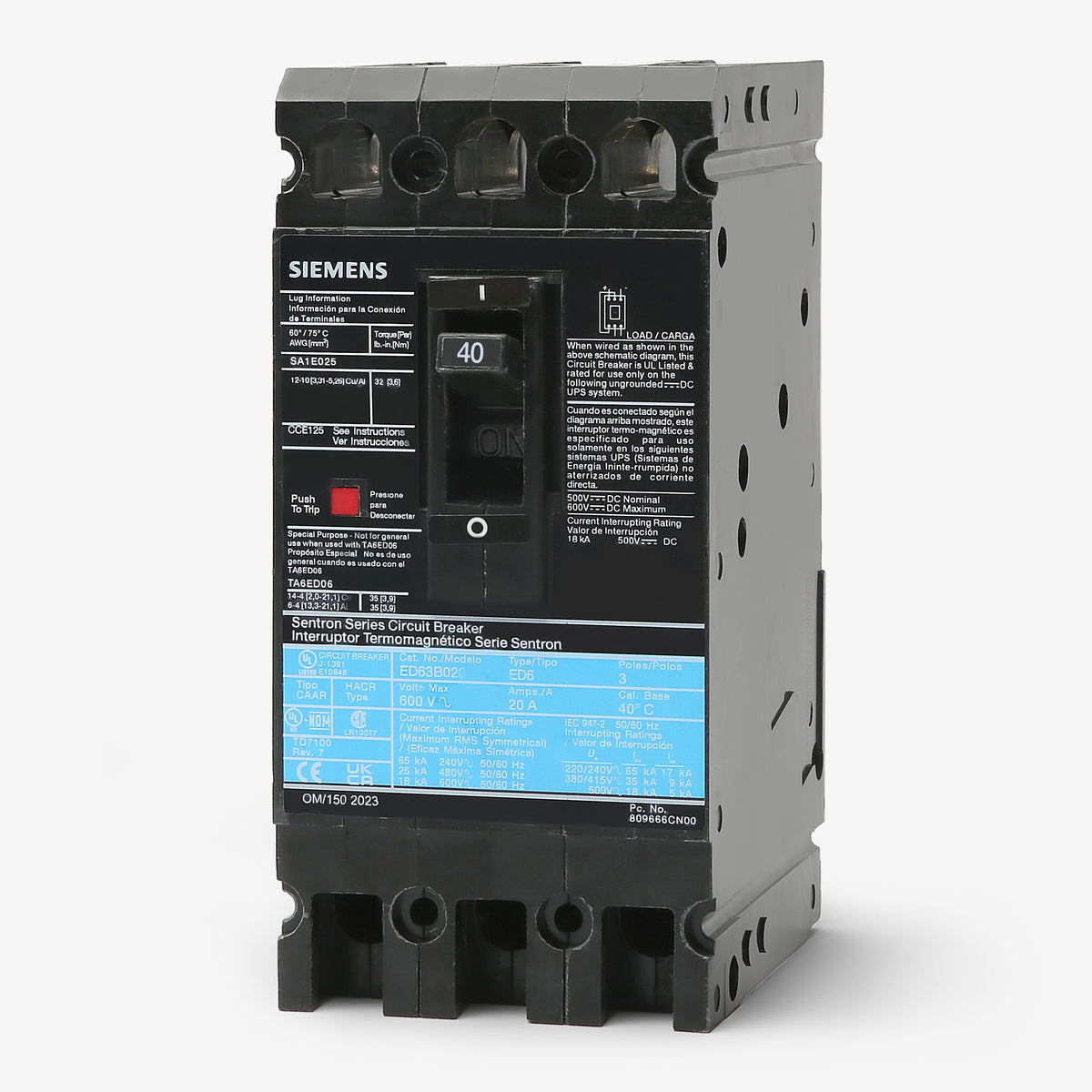

Siemens ED43B040L 3 Pole Circuit Breaker
New
Quantity
Quantity
Siemens ED43B040L 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED43B040L |
| Series | ED4 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards and Switchboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | NEMA |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
Quantity
Siemens ED43B040L 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards and Switchboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | NEMA |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
3 Pole Circuit Breaker
Description
Siemens ED43B040L 3 Pole Circuit Breaker
The Siemens ED43B040L is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 480V. It has an interrupting rating of 18kAIC at 480V. The ED43B040L has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED43B040L |
| Series | ED4 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards and Switchboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | NEMA |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
Product FAQs
6 answersWhich panelboards and switchboards are compatible with the Siemens ED43B040L?
The ED43B040L is designed for use in Siemens Sentron panelboards, SB switchboards, and Sentron Power Centers that accept ED-frame molded case circuit breakers.
What does a feed-thru connection mean for the ED43B040L?

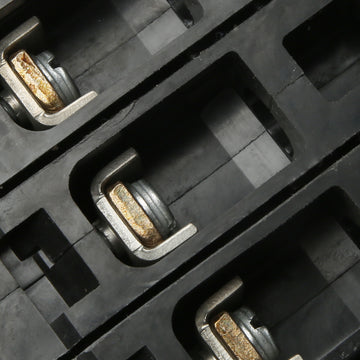

A feed-thru connection indicates that the breaker is designed for cable-in and cable-out installations. It comes equipped with lugs on both the line and load sides, making it suitable for individual enclosures or specific panelboard configurations.
Can the ED43B040L be reverse fed?
Yes, Siemens ED-frame molded case circuit breakers can be reverse connected, allowing power to be supplied to either the line or load side terminals.
Does this breaker have an adjustable trip unit?
No, the ED43B040L features a non-interchangeable, fixed thermal-magnetic trip unit with long-time and instantaneous trip functions.
Can I install this Siemens ED-frame breaker in a panelboard from another manufacturer?
No. To maintain UL listing and ensure safe operation, Siemens circuit breakers should only be installed in Siemens or I-T-E panelboards specifically listed for their use.
Is the ED43B040L a direct replacement for older I-T-E ED4 breakers?
Yes, Siemens acquired I-T-E and continues to manufacture the Sentron ED-frame series. The ED43B040L can directly replace older I-T-E breakers with the exact same catalog number.
