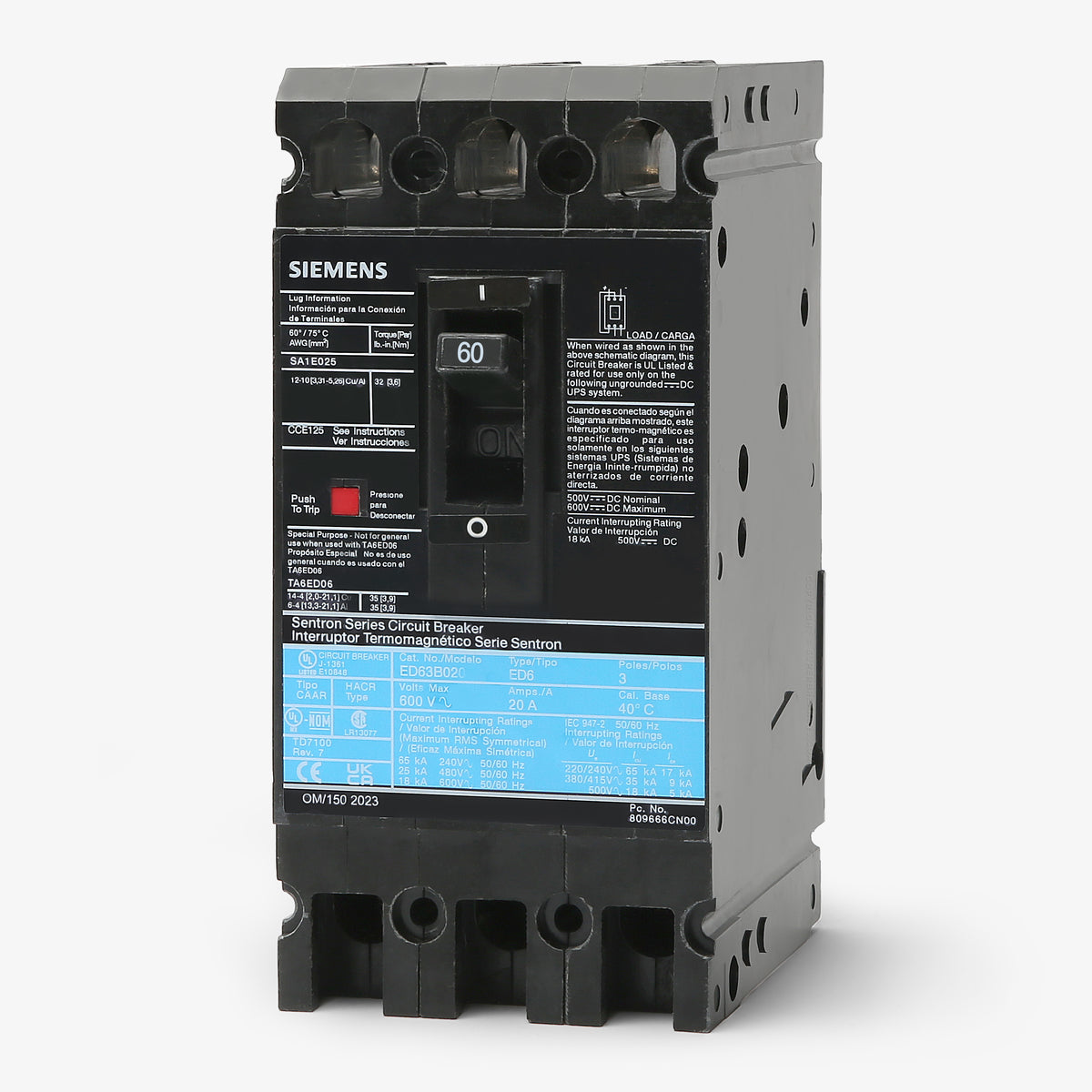

Siemens ED43B060L Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Siemens
ED43B060L
Circuit Breaker
Brand
Siemens
SKU
ED43B060L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

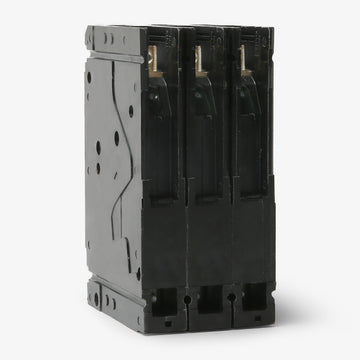

Siemens ED43B060L 3 Pole Circuit Breaker
New
Quantity
Quantity
Siemens ED43B060L 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED43B060L |
| Series | ED4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | NEMA |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
Quantity
Siemens ED43B060L 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | NEMA |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
Similar Items
45A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Siemens ED43B060L 3 Pole Circuit Breaker
The Siemens ED43B060L is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 480V. It has an interrupting rating of 18kAIC at 480V. The ED43B060L has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED43B060L |
| Series | ED4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | NEMA |
|---|---|
| Approval | CSA, IEC, UL |
| Temp Rating | 40 °C |
Product FAQs
5 answersWhich Siemens panelboards accept the ED43B060L circuit breaker?
This ED frame breaker is compatible with Siemens Sentron panelboards, specifically the P1, P2, P3, P4, and P5 series, as well as standard Siemens molded case breaker enclosures.

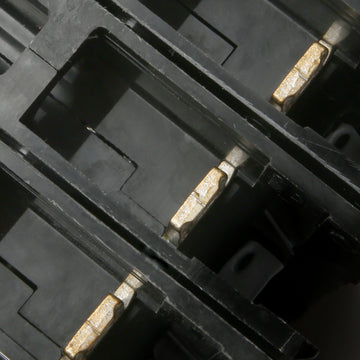

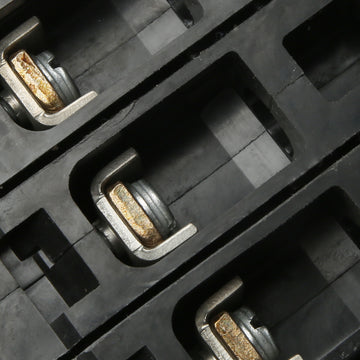

Are line and load lugs included with the ED43B060L?
Yes, the L suffix in the catalog number indicates that factory-installed line and load lugs are included. They accept 10 AWG to 1/0 AWG copper or aluminum conductors.
What type of trip functions does the ED43B060L provide?
It features a fixed, non-interchangeable thermal-magnetic trip unit that provides long-time and instantaneous (LI) overcurrent protection.
How does the ED43B060L mount inside an electrical panel?
It is a bolt-on molded case circuit breaker. It requires bolted connections to the panelboard bus or is used as a feed-thru breaker in standalone enclosures.
What is the standard calibration temperature for this breaker?
The ED43B060L is calibrated for continuous operation in a 40 degrees Celsius (104 degrees Fahrenheit) ambient environment.
