Siemens ED43B090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Siemens
ED43B090
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED43B090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

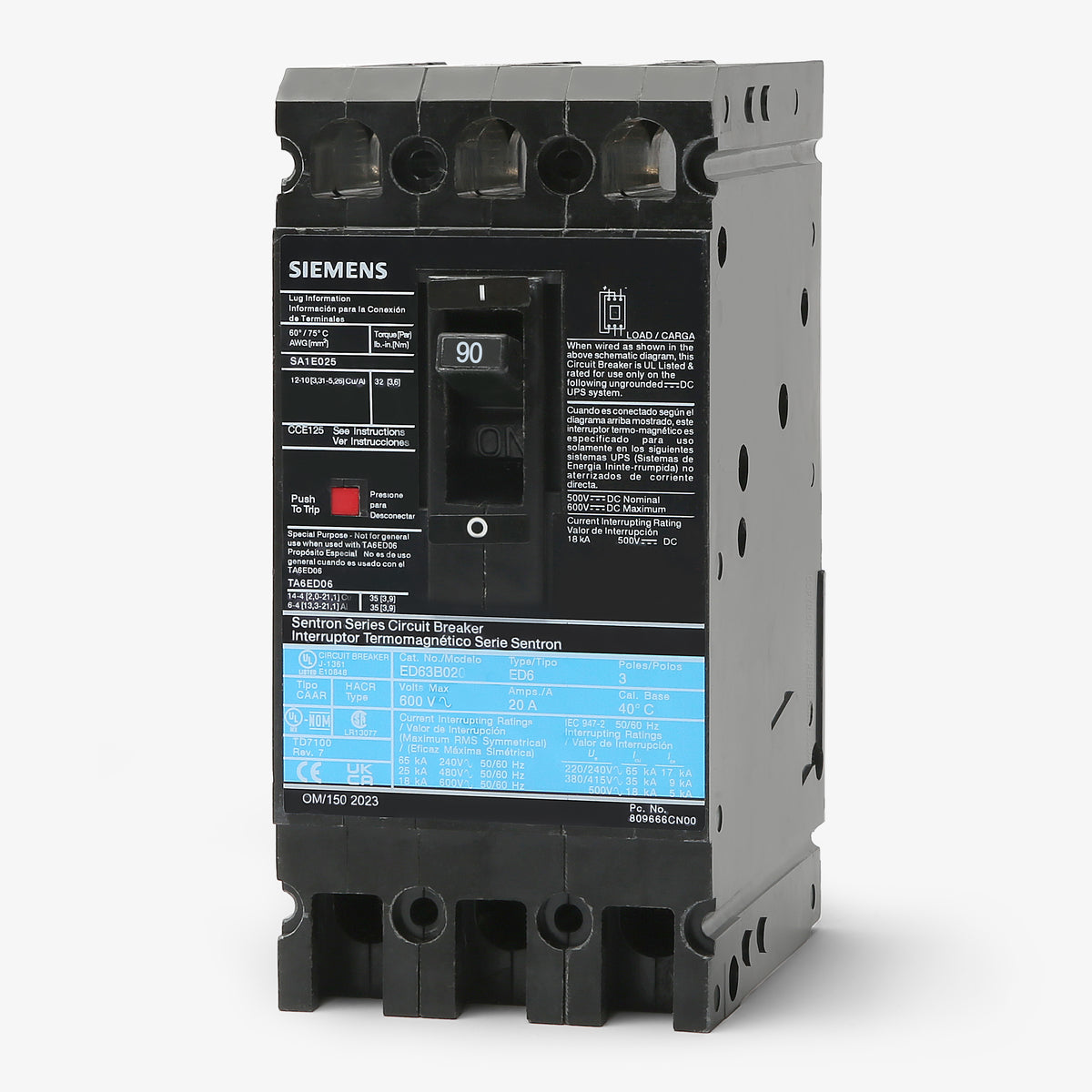

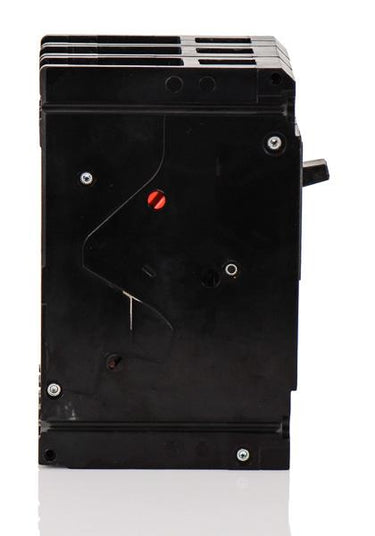

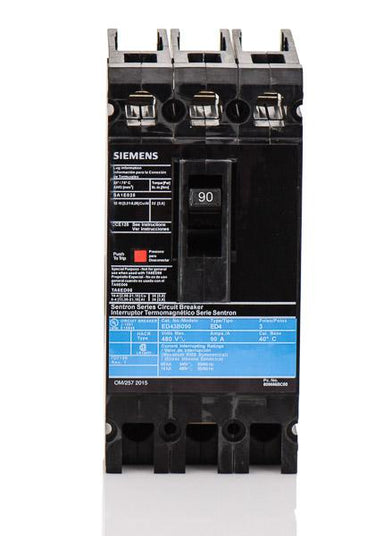

Siemens ED43B090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED43B090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED43B090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens ED43B090 is a 3-pole, 90A molded case circuit breaker. Part of the SENTRON ED frame lineup, it delivers reliable thermal magnetic protection. This bolt-on breaker is designed to fit Siemens P1, P2, and P3 panelboards. It includes load side lugs only and supports reverse feed configurations. With an 18kAIC rating at 480VAC, it safely clears faults and is HACR rated for HVAC equipment.Specifications
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboard series accept the ED43B090 circuit breaker?
This bolt-on breaker is designed for direct installation into Siemens P1, P2, and P3 lighting and distribution panelboards, as well as compatible switchboards.
How does the ED43B090 compare to the ED63B090?
Both breakers share the same 90-amp ED frame and physical dimensions, but the ED63B090 offers a higher 25kA interrupting capacity at 480VAC compared to the 18kA rating of the ED43B090.
Can the ED43B090 be used in direct current (DC) systems?
Yes. In addition to alternating current applications, this 3-pole breaker is rated for up to 250VDC with a 30kA interrupting capacity for use in DC distribution networks.

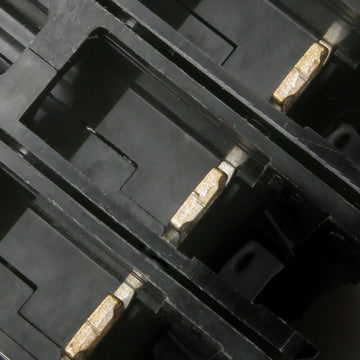

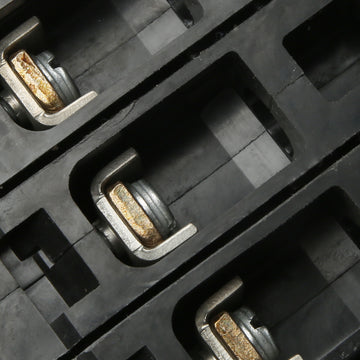

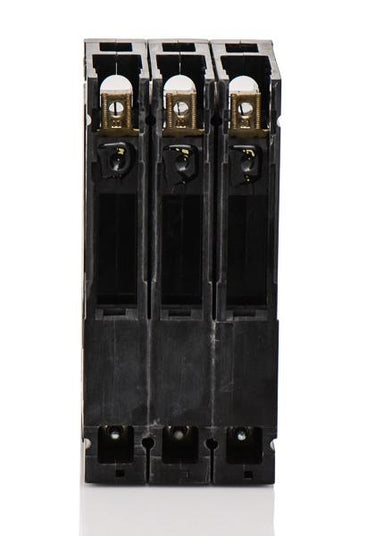

Does the ED43B090 include line and load lugs?
This model comes standard with factory-installed load lugs (part number LN1E100) that accept 10 to 1/0 AWG copper or aluminum wire. Because it is a bolt-on breaker, the line side mounts directly to the panelboard bus and does not include lugs by default.
Are shunt trips and auxiliary switches field-installable on this breaker?
Yes. The ED frame design allows for the field installation of internal accessories, including shunt trips and auxiliary contacts.
Are the thermal and magnetic trip elements adjustable on the ED43B090?
No. This breaker features a fixed thermal and fixed magnetic trip unit (LI function). The overcurrent and instantaneous short-circuit parameters cannot be field-adjusted.
Is the ED43B090 suitable for reverse-feed installations?
Yes. All Siemens ED-frame circuit breakers can be reverse connected, allowing electricians to feed power from either the top or bottom terminals without derating the breaker.
Is the ED43B090 rated for HVAC equipment?
Yes. This breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires specialized motor group protection.
