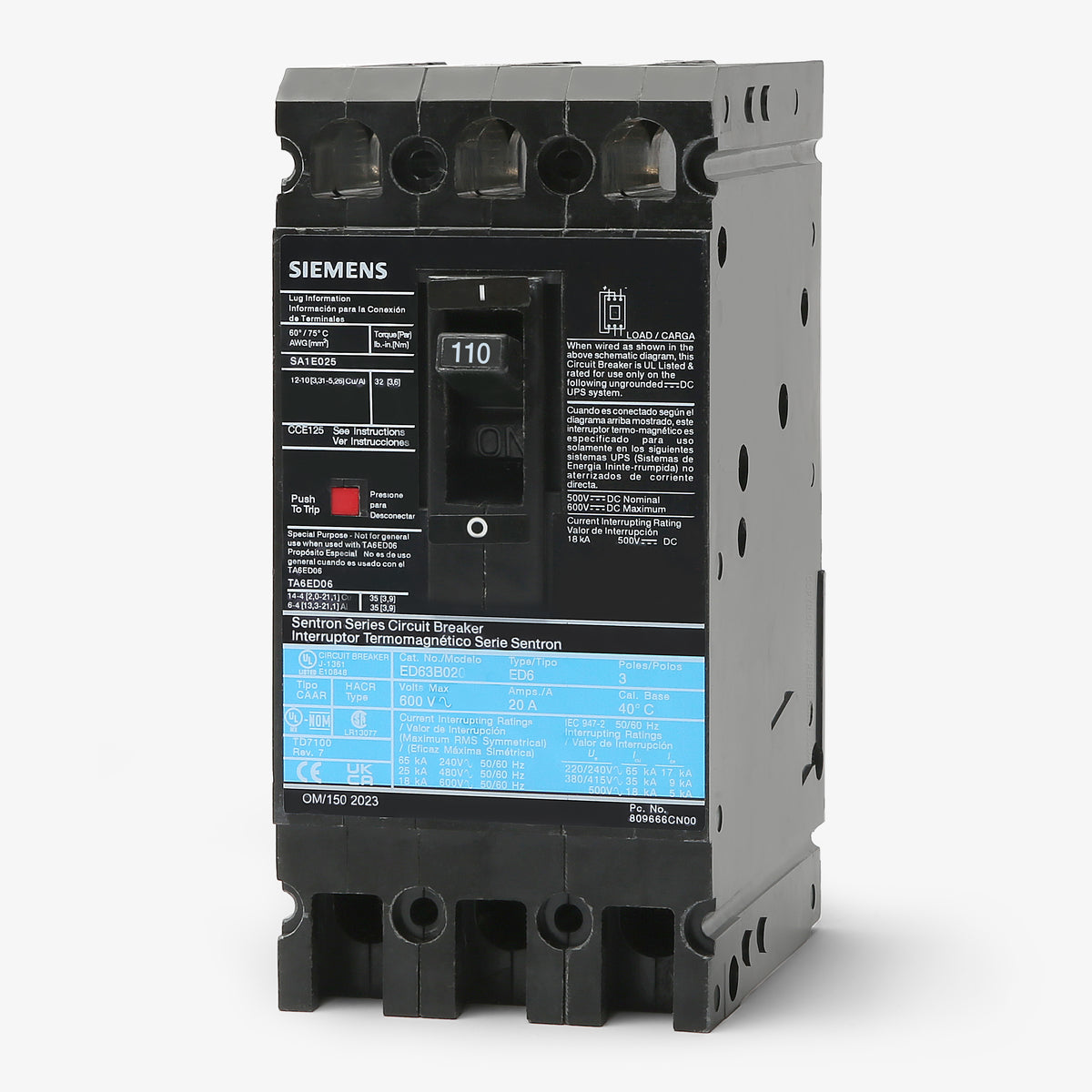

Siemens ED43B110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
ED43B110
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED43B110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED43B110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED43B110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED43B110 |
| Series | ED4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED43B110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED43B110-R |
| Series | ED4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Built specifically for commercial power distribution, this 110A SENTRON breaker offers dependable thermal-magnetic trip functionality. The bolt-on design ensures a secure, high-conductivity connection within Siemens P1, P2, and P3 panelboards or compatible switchboards. It features load-side lugs only, as the line side bolts to the panel bus. Although transitioning to the newer 3VA5111-4ED36-0AA0 model, this ED4 frame remains essential for expanding existing legacy distribution systems.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED43B110 |
| Series | ED4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the ED43B110 circuit breaker?
This breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards.
Can the Siemens ED43B110 replace an older ITE ED43B110?
Yes. Siemens acquired ITE, and the Siemens ED43B110 is the direct replacement for the legacy ITE ED43B110 circuit breaker.
Are lugs included with this breaker?

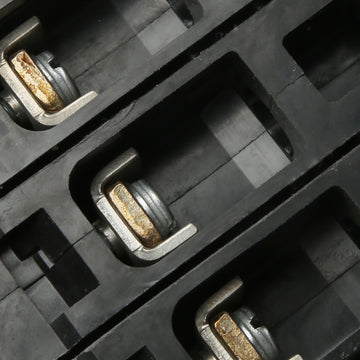

Yes, load-side lugs are included. The terminals accept 3 to 3/0 AWG copper wire or 1 to 2/0 AWG aluminum wire.
Can the ED43B110 be reverse fed?
Yes, all Siemens ED frame molded case circuit breakers can be reverse connected for use in back-fed applications.
Is this breaker rated for DC voltage applications?
Yes, the ED43B110 is rated for up to 250VDC with an interrupting capacity of 30kAIC.
How does this breaker mount into the panel?

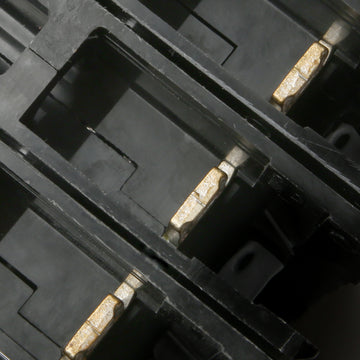

The ED43B110 is a bolt-on circuit breaker that fastens directly to the panelboard bus.
