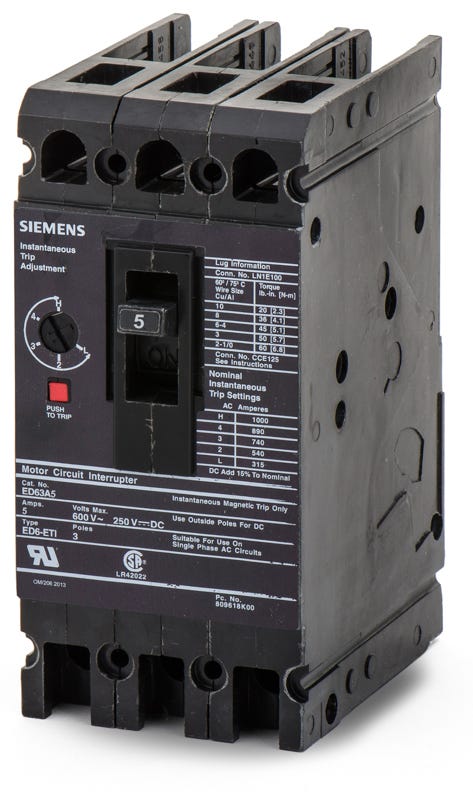

Siemens ED63A005 Motor Circuit Protector
- 5A
- 3 Pole
- Bolt-On
Siemens
ED63A005
Motor Circuit Protector
Brand
Siemens
SKU
ED63A005
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED63A005 - 5A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Siemens ED63A005 - 5A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63A005 |
| Series | ED6 |
| Amperage | 5A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 16-54A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Control Centers, Combination Motor Starters |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Reverse Feed |
Quantity
Siemens ED63A005 - 5A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63A005-R |
| Series | ED6 |
| Amperage | 5A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 16-54A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Control Centers, Combination Motor Starters |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Reverse Feed |
Similar Items
2A 3 Pole Motor Circuit Protector
10A 3 Pole Motor Circuit Protector
25A 3 Pole Motor Circuit Protector
Description
Designed specifically for motor branch circuits, the Siemens ED63A005 is a 3-pole, 5A instantaneous-trip protector. As an ETI (Electronic Trip Instantaneous) device, it handles short circuits while relying on an external starter for thermal overloads. This unit mounts into Siemens motor control centers and features standard load side lugs. Rated for 25kAIC at 480VAC, it includes an adjustable magnetic trip dial ranging from 16 to 54 amps to precisely match your motor's inrush current profile.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED63A005 |
| Series | ED6 |
| Amperage | 5A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 16-54A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Control Centers, Combination Motor Starters |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Reverse Feed |
