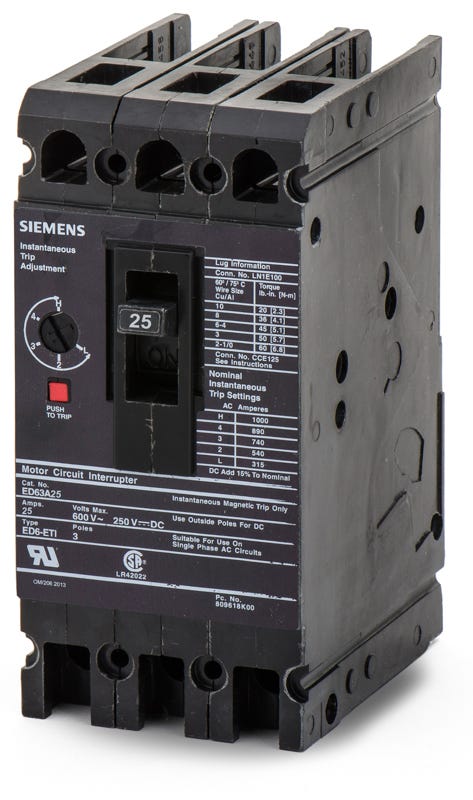

Siemens ED63A025 Motor Circuit Protector
- 25A
- 3 Pole
- Bolt-On
Siemens
ED63A025
Motor Circuit Protector
Brand
Siemens
SKU
ED63A025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED63A025 - 25A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Siemens ED63A025 - 25A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Siemens |
|---|---|
| Series | ED6 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 55-180A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Starters, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Reverse Feed, HACR Rated, Non-Interchangeable Trip |
Quantity
Siemens ED63A025 - 25A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | ED6 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 55-180A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Starters, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Reverse Feed, HACR Rated, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Motor Circuit Protector
40A 3 Pole Motor Circuit Protector
10A 3 Pole Motor Circuit Protector
Description
Designed to handle motor inrush currents, this 25A Sentron ED-frame motor circuit protector offers precise magnetic-only protection. It mounts into Siemens motor control centers and starters, working alongside overload relays to provide complete motor defense. The instantaneous trip setting is adjustable from 55A to 180A, allowing customization for specific motor loads. Note that this legacy unit has been replaced by the 3VA5125-1MH31-0AA0, which requires a retrofit kit for installation.Specifications
| Brand | Siemens |
|---|---|
| Series | ED6 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 55-180A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Starters, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Reverse Feed, HACR Rated, Non-Interchangeable Trip |
