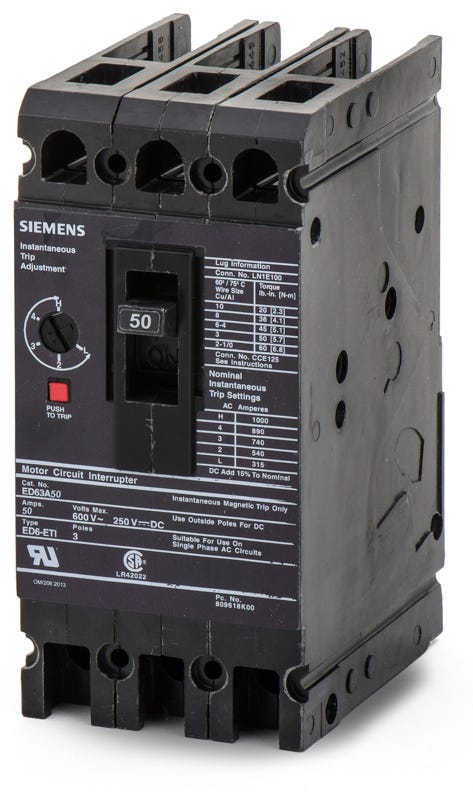

Siemens ED63A050 Motor Circuit Protector
- 50A
- 3 Pole
- Bolt-On
Siemens
ED63A050
Motor Circuit Protector
Brand
Siemens
SKU
ED63A050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED63A050 - 50A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Siemens ED63A050 - 50A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63A050 |
| Series | ED6 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 180-600A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Starters, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Motor Circuit Protector, Non-Interchangeable Trip |
Quantity
Siemens ED63A050 - 50A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63A050-R |
| Series | ED6 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 180-600A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Starters, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Motor Circuit Protector, Non-Interchangeable Trip |
Similar Items
5A 3 Pole Motor Circuit Protector
40A 3 Pole Motor Circuit Protector
30A 3 Pole Motor Circuit Protector
Description
Built for heavy-duty industrial environments, this 50A Sentron ED-frame device utilizes Electronic Trip Instantaneous (ETI) technology for precise magnetic-only protection. It mounts into Siemens combination motor starters and control centers, coordinating with separate overload relays. With an adjustable trip range of 180 to 600 amps and a 65kAIC rating at 240V, this reverse-feed capable unit is frequently replaced by the 3VA5150-1MH31-0AA0 using a retrofit kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED63A050 |
| Series | ED6 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 180-600A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Starters, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Motor Circuit Protector, Non-Interchangeable Trip |
