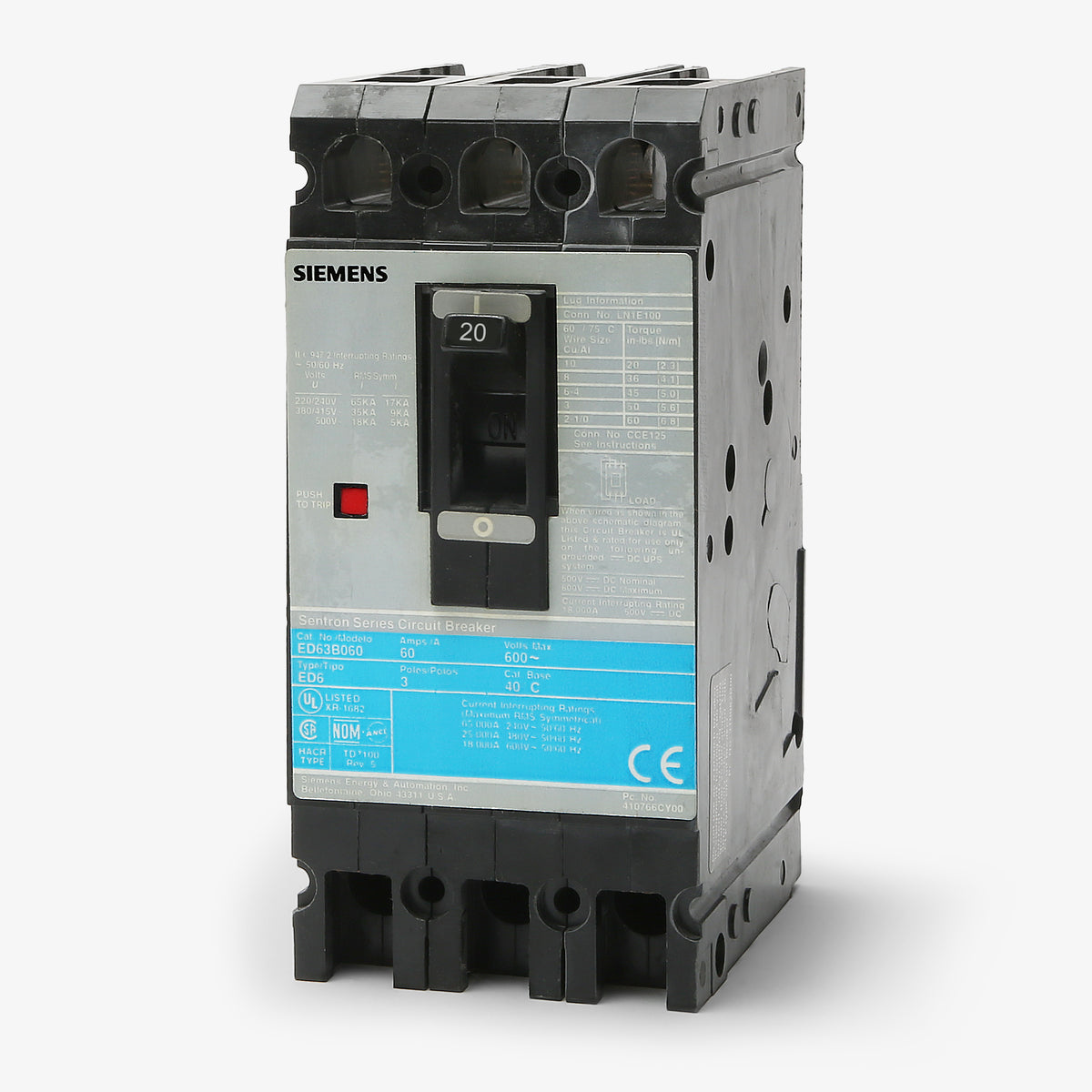

Siemens ED63B020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Siemens
ED63B020
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED63B020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED63B020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED63B020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63B020 |
| Series | ED6 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED63B020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63B020-R |
| Series | ED6 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial distribution, the Siemens ED63B020 is a 3-pole, 20A molded case circuit breaker from the Sentron series. It delivers reliable thermal-magnetic protection for 240V, 480V, and 600VAC electrical systems. This ED frame breaker bolts securely into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards. It features standard load side lugs for 14-10 AWG copper wire. With a 65kA interrupting capacity at 240V, this HACR-rated unit supports reverse feed setups.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED63B020 |
| Series | ED6 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
9 answersWhat panelboards accept the ED63B020 circuit breaker?
This breaker is engineered to bolt directly onto the bus bars of Siemens P1, P2, and P3 distribution panelboards, as well as compatible Siemens switchboards.
Can this breaker be installed in a standard residential load center?
No. The ED63B020 is a commercial-grade bolt-on breaker for distribution panels and switchboards. It will not fit into standard residential load centers that require plug-on styles like QP or QT breakers.
Can the ED63B020 be reverse fed?
Yes. Like all standard Siemens ED-frame circuit breakers, this model can be reverse connected. This allows you to wire the line side to either the top or bottom terminals depending on your specific panel layout.
Are the load terminals included with the breaker?
Yes, it comes equipped with standard load lugs (part number SA1E025). The lugs accept 14 to 10 AWG copper and 12 to 10 AWG aluminum conductors, which covers typical 20-amp branch circuit wiring.
What does the LI trip function indicate?
The LI designation means the breaker provides Long-Time (thermal) overload protection and Instantaneous (magnetic) short-circuit protection.
Are the thermal and magnetic trip points adjustable?
No, this breaker utilizes a fixed thermal-magnetic trip unit. Both the continuous current and instantaneous trip settings are factory calibrated for 20 amps and cannot be modified in the field.
How does the interrupting capacity scale across different system voltages?
As a standard capacity ED-frame breaker, the fault-clearing ability decreases as system voltage increases. It provides 65kAIC at 240VAC, drops to 25kAIC at 480VAC, and offers 18kAIC at 600VAC.
Is this breaker suitable for direct current (DC) applications?
Yes, the thermal-magnetic trip mechanism is tested and rated for DC systems. It carries a 30kAIC interrupting rating for DC applications up to 250VDC.
What frame footprint does this use for replacement purposes?
It belongs to the Siemens SENTRON ED Frame family. It shares the standard ED physical footprint, making it a direct bolt-in replacement for older I-T-E and Siemens ED6 20-amp units in existing equipment.
