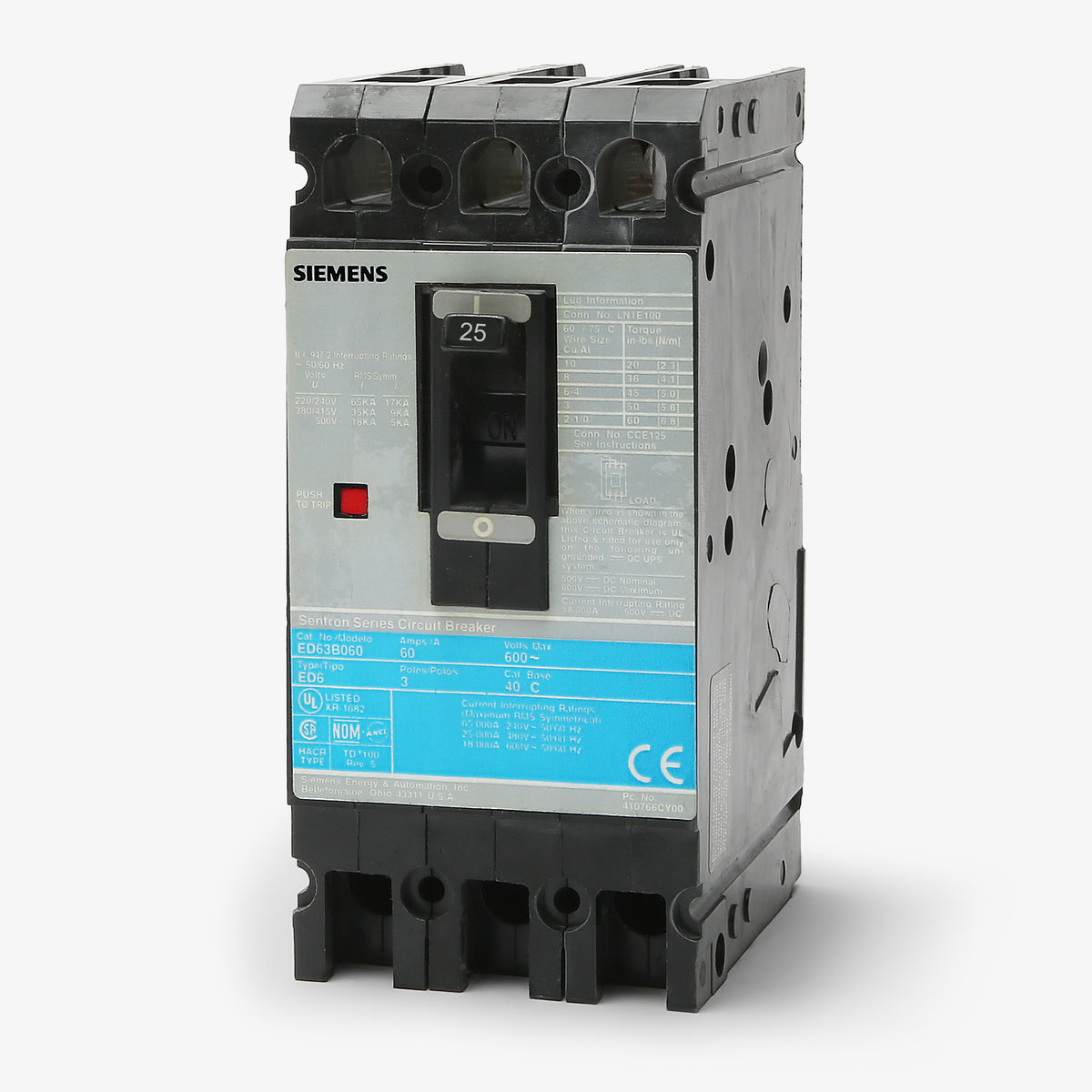

Siemens ED63B025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Siemens
ED63B025
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED63B025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED63B025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED63B025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63B025 |
| Series | ED6 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED63B025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63B025-R |
| Series | ED6 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
The ED63B025 is a reliable 3-pole, 25A molded case circuit breaker designed for commercial power distribution. As part of the Sentron ED frame series, it mounts into Siemens P1, P2, and P3 panelboards, along with SB switchboards. This bolt-on MCCB provides fixed thermal and magnetic trip functions with a 25kAIC rating at 480VAC and 65kAIC at 240VAC. It is HACR rated, supports reverse feeding, and comes equipped with load lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED63B025 |
| Series | ED6 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersCan the Siemens ED63B025 be used to replace an older ITE breaker with the same catalog number?
Yes. Siemens acquired ITE, and the current Sentron ED frame breakers are direct, backwards-compatible replacements for legacy ITE ED63B025 circuit breakers.
Which Siemens panelboards are compatible with the ED63B025 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as Siemens SB switchboards.
Are the factory lugs on this breaker rated for aluminum conductors?
Yes, the standard load lugs are dual-rated for both copper and aluminum (Cu/Al) wire, accepting conductor sizes from 10 AWG up to 1/0 AWG.
Is this ED frame breaker suitable for direct current (DC) systems?
Yes, the ED63B025 is rated for DC applications and provides a 30kA interrupting capacity at 250VDC.
Does the ED63B025 feature adjustable trip settings for coordination?
No, this breaker is equipped with a non-interchangeable thermal magnetic trip unit that has fixed thermal and fixed magnetic (LI) trip points.
