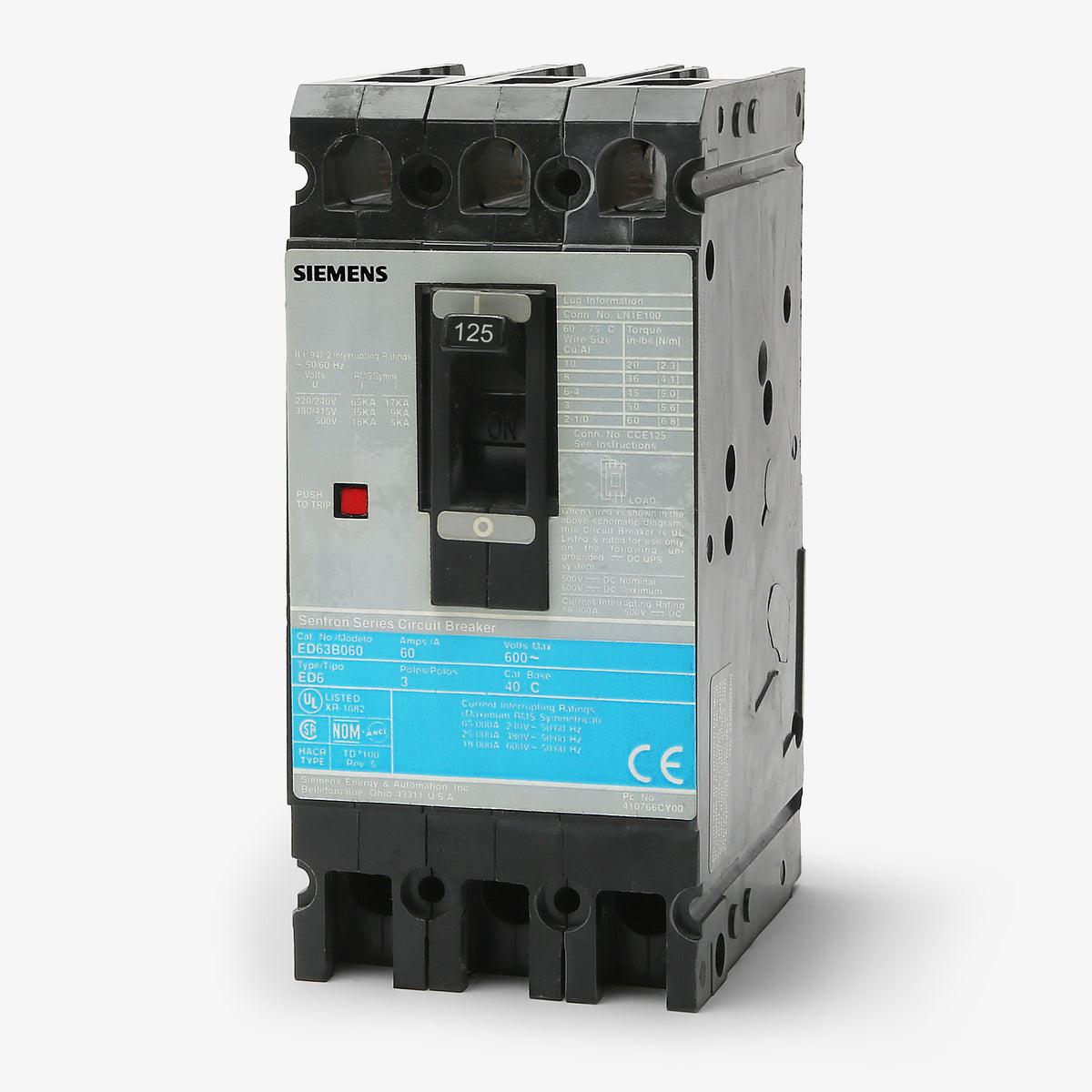

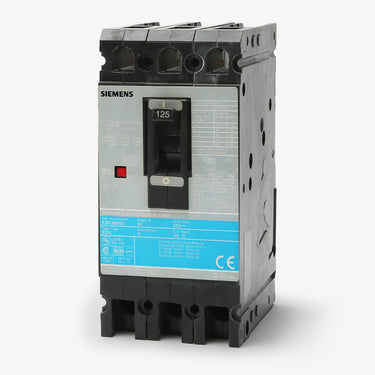

Siemens ED63B125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Siemens
ED63B125
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED63B125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED63B125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED63B125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63B125 |
| Series | ED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED63B125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63B125-R |
| Series | ED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron ED family, this 125A, three-pole MCCB delivers robust power distribution for commercial facilities. It features a fixed thermal-magnetic trip unit. The bolt-on design installs into Siemens P1, P2, and P3 panelboards or switchboards. It serves as a reliable legacy solution, replaceable by the 3VA5 series. Rated for 65kAIC at 240VAC and 25kAIC at 480VAC, it includes load-side lugs and reverse feed capabilities for versatile wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED63B125 |
| Series | ED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 2/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the ED63B125?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards and motor control centers.
Can this breaker be used in DC electrical systems?
Yes, it is rated for direct current applications up to 250VDC, where it provides an interrupting rating of 30kAIC.
Can I use the Siemens ED63B125 as a replacement for an ITE ED63B125?
Yes. Siemens acquired the ITE brand and continued manufacturing the ED frame. The current Siemens model is a direct physical and electrical replacement for the legacy ITE breaker of the same catalog number.
Is the ED63B125 rated for reverse feed installations?
Yes, standard Siemens ED frame thermal magnetic breakers feature fixed trip units and are approved for reverse feed or back-fed applications.
Is this circuit breaker HACR rated?
Yes, this model carries a Heating, Air Conditioning, and Refrigeration (HACR) rating, making it suitable for protecting HVAC branch circuits.
Are the trip settings adjustable on this breaker?
No, the ED63B125 features a non-interchangeable, fixed thermal and fixed magnetic trip unit. The Long-Time and Instantaneous (LI) trip functions cannot be adjusted in the field.
