Siemens EE2B015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Siemens
EE2B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
EE2B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

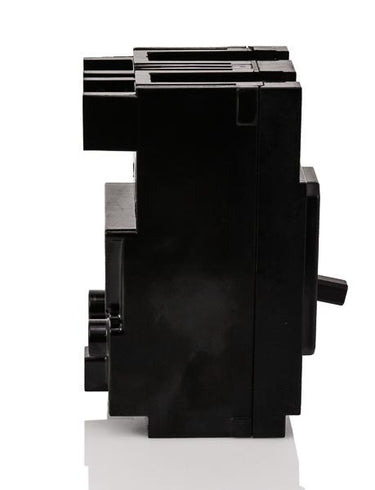

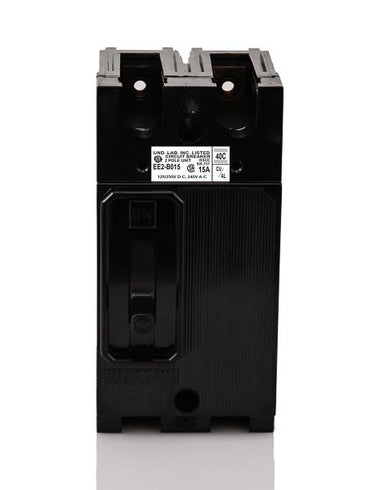

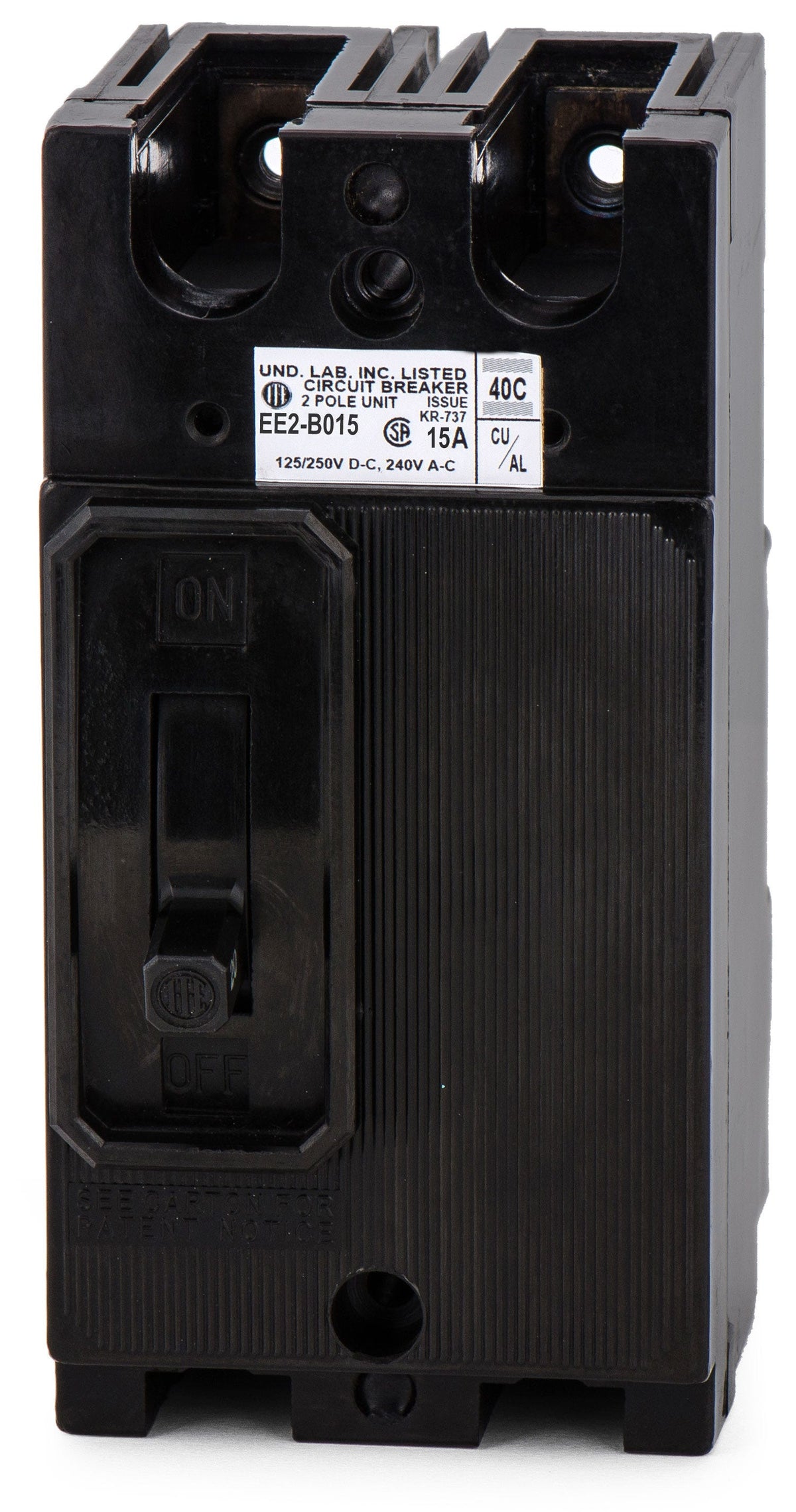

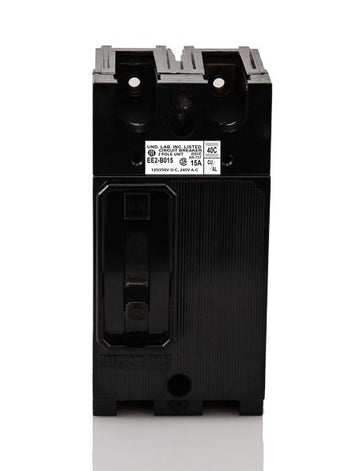

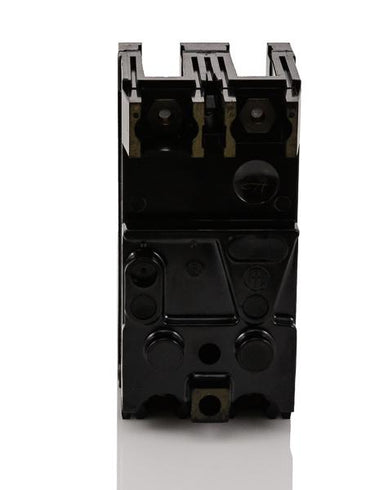

Siemens EE2B015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial use, this 15A, 2-pole molded case circuit breaker belongs to the Siemens EE series. It delivers reliable thermal-magnetic protection for heavy-duty electrical systems. The breaker features a bolt-on design that fits seamlessly into Siemens FC, FE, CDP, P2, and P3 panelboards. When upgrading, the ED22B015 serves as the replacement. It offers a 10kAIC rating at 240VAC, standard LI trip functions, and comes HACR rated for heating and cooling loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EE2B015-R |
| Series | EE |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhich Siemens panelboards accept the EE2B015 circuit breaker?
The EE2B015 is a bolt-on E-frame breaker compatible with Siemens FC, FE, CDP, P2, and P3 series panelboards. Always verify your specific panel labeling to ensure E-frame compatibility before installation.
What is the modern replacement for the Siemens EE2B015?
The Siemens ED22B015 serves as the direct modern replacement for the EE2B015. It shares the same 15A, 2-pole configuration and bolt-on mounting for E-frame panelboards.
Can the EE2B015 be used for heating and cooling loads?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires a 15A, 240VAC circuit.
Can I install the EE2B015 in a standard residential load center?
No. The EE2B015 is a bolt-on molded case circuit breaker designed for commercial and industrial panelboards. It will not fit in standard residential plug-on load centers that require QP or QT type breakers.
How does the trip mechanism function on the EE2B015?
It utilizes a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) functions. This provides reliable protection against both sustained overloads and sudden short circuits.
