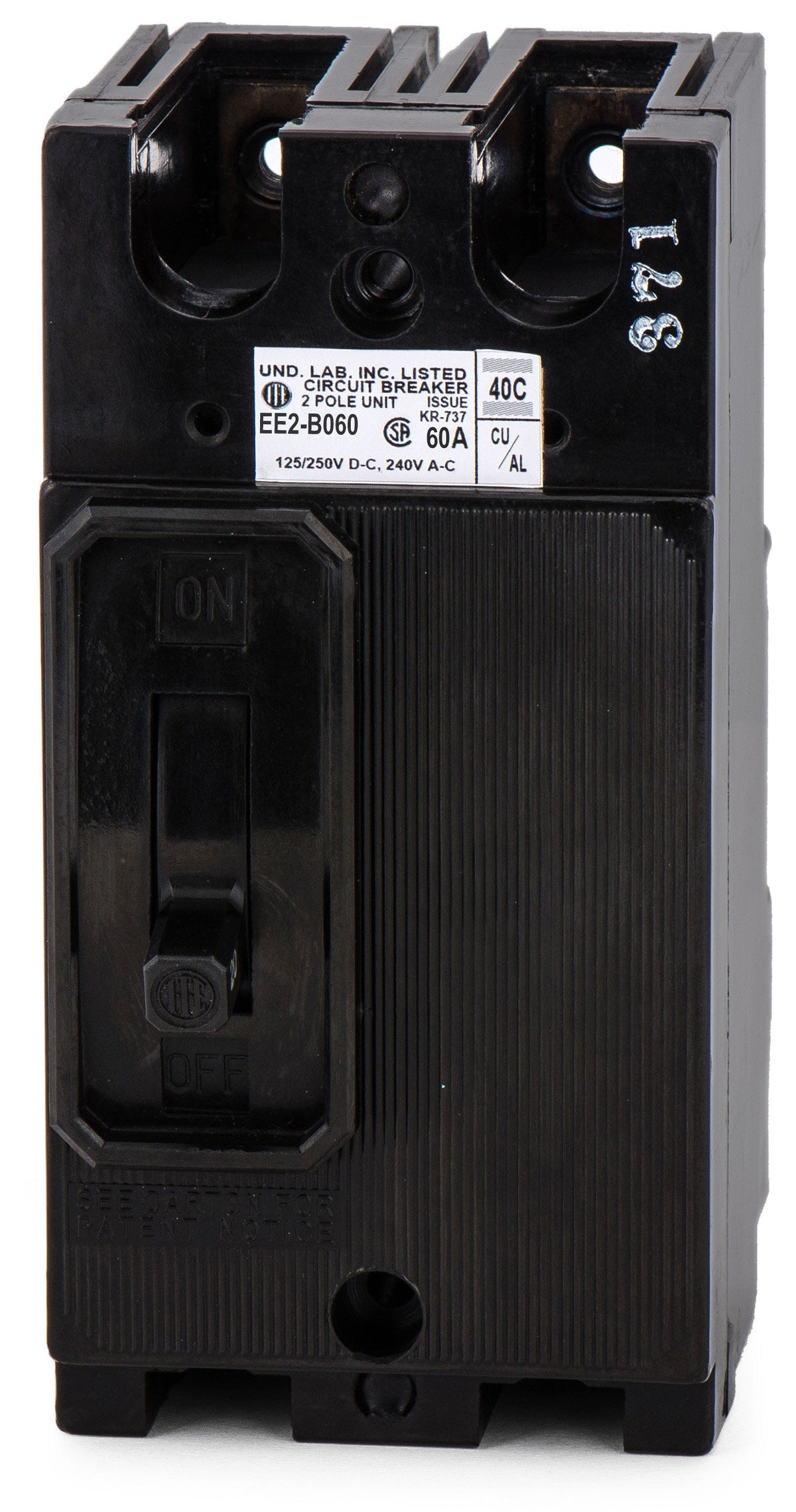

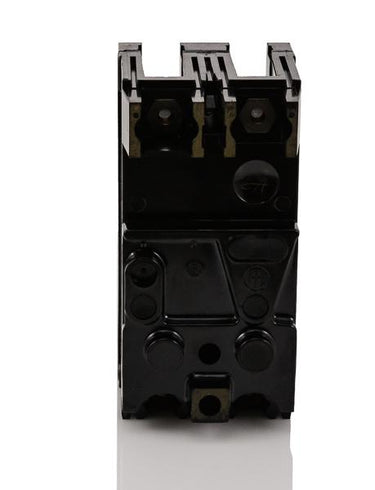

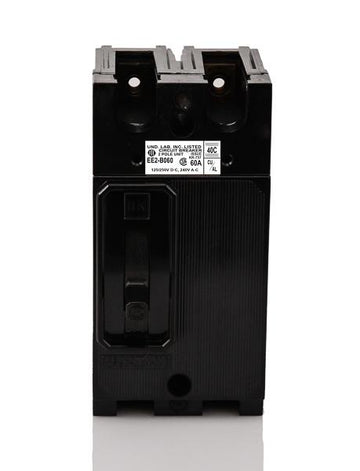

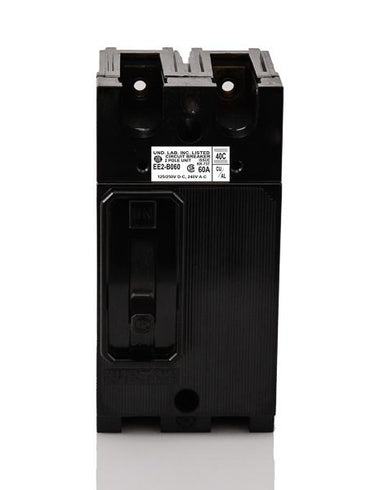

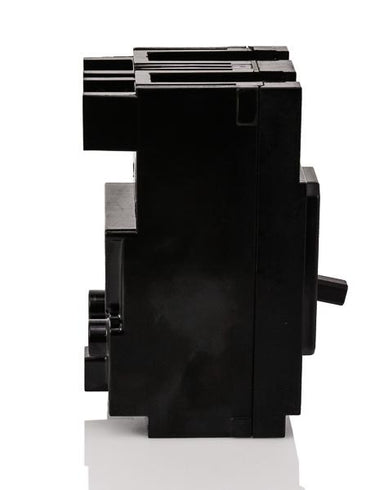

Siemens EE2B060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
EE2B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
EE2B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EE2B060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
A reliable solution for commercial power systems, the Siemens EE2B060 is a 60A, 2-pole molded case circuit breaker. It provides robust thermal-magnetic protection for branch circuits requiring a 10kAIC rating at 240VAC. This bolt-on unit is engineered to fit seamlessly into Siemens P1, P2, P3, as well as legacy ITE panelboards. For modern upgrades, this specific breaker is cross-referenced and replaced by the ED22B060. It includes load side lugs and is HACR rated for HVAC applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EE2B060-R |
| Series | EE |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the Siemens EE2B060 circuit breaker?
This E-Frame breaker is engineered to fit seamlessly into Siemens P1, P2, and P3 commercial panelboards, as well as older legacy ITE panelboard systems.
Is there a modern replacement for the legacy EE2B060 breaker?
Yes, the legacy EE-Frame EE2B060 has been superseded by the modern ED-Frame ED22B060, which serves as a direct cross-reference and replacement for panel upgrades.
What are the wire gauge requirements for the EE2B060 terminals?
The standard load-side lugs accommodate wire sizes ranging from 14 AWG up to 1/0 AWG. The terminals are dual-rated for both copper and aluminum conductors.
How does the thermal-magnetic trip unit operate on this E-Frame breaker?
It utilizes a fixed thermal element for long-time overload protection and a fixed magnetic element for instantaneous short-circuit protection, commonly referred to as an LI trip function.
How is the EE2B060 secured inside the panelboard?
It utilizes a bolt-on connection type, which fastens directly to the panelboard bus with screws. This provides a highly secure, vibration-resistant connection typical in commercial electrical systems.
Can I use this breaker in a standard residential plug-on load center?
No, the EE2B060 is a bolt-on molded case circuit breaker designed specifically for commercial panelboards like the Siemens P1 through P3 series. It will not fit in standard residential plug-on load centers.
