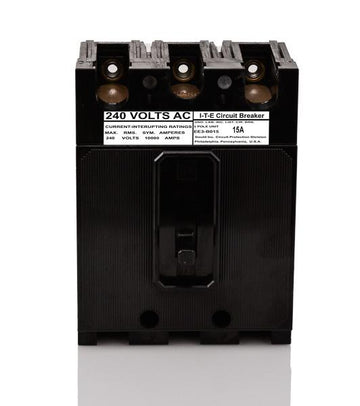

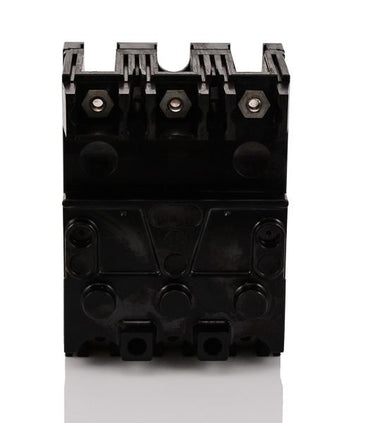

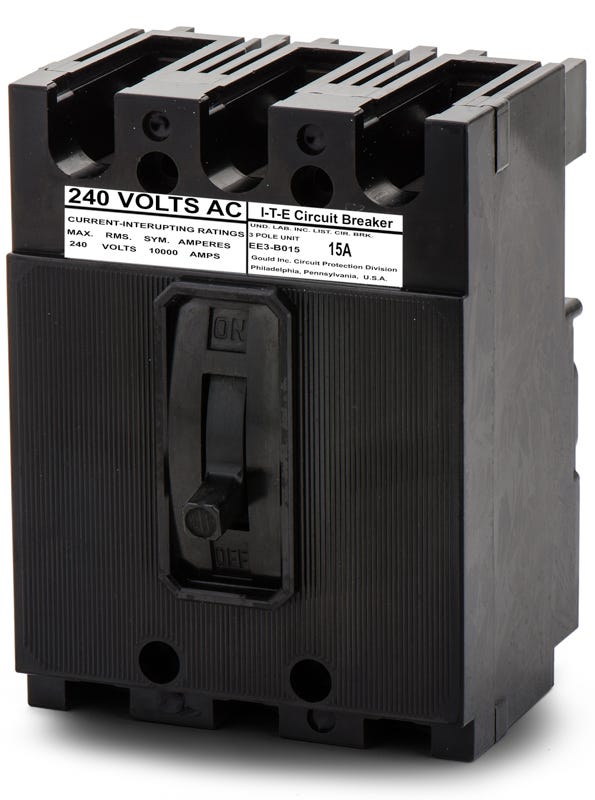

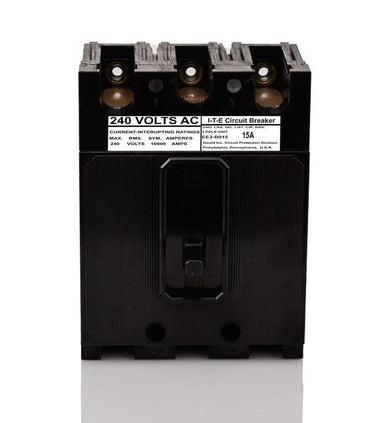

Siemens EE3B015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Siemens
EE3B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
EE3B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EE3B015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens EE3B015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EE3B015 |
| Series | EE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Siemens EE3B015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EE3B015-R |
| Series | EE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Delivering robust circuit protection for industrial environments, the Siemens EE3B015 is a 15A, three-phase molded case breaker. It features fixed thermal and magnetic trip elements to ensure accurate response to overloads and short circuits. The device utilizes a bolt-on connection for secure installation into Siemens FC, FE, CDP, P2, and P3 panelboards. Capable of handling 10kAIC at 240VAC, this HACR-rated breaker includes load side lugs and a non-interchangeable trip unit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EE3B015-R |
| Series | EE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the EE3B015 circuit breaker?
This breaker is designed for Siemens FC, FE, CDP, P2, and P3 panelboards. Because it is a legacy EE frame, it serves as a direct drop-in replacement for these specific panels without requiring aftermarket adapter hardware.
What wire sizes are accepted by the lugs on the EE3B015?
The factory-installed load side lugs accommodate 14 to 10 AWG copper (Cu) or 12 to 10 AWG aluminum (Al) conductors. Ensure proper torque specifications are followed during installation to maintain a secure connection.
Is the Siemens EE frame series still in active production?
The EE frame is a legacy molded case circuit breaker series that is now obsolete. However, exact replacements remain available to support existing panelboards, allowing you to maintain your current setup without upgrading the entire panel.
Can I adjust the trip settings on the EE3B015?
No, this breaker utilizes a non-interchangeable thermal magnetic trip unit. Both the thermal (long-time) and magnetic (instantaneous) trip elements are fixed at the factory and cannot be field-adjusted by the user.
Is the EE3B015 suitable for direct current (DC) systems?
Yes, alongside its standard 240VAC rating, this breaker is rated for up to 250VDC. This makes it a versatile option for specific industrial DC control circuits, battery systems, or distribution panels requiring a 10kA interrupting capacity.
Is the EE3B015 HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment. This ensures it can safely handle the inrush currents typical of HVAC motor loads.
