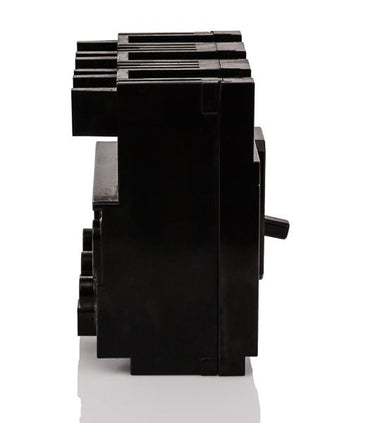

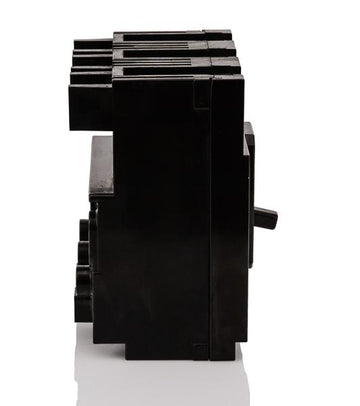

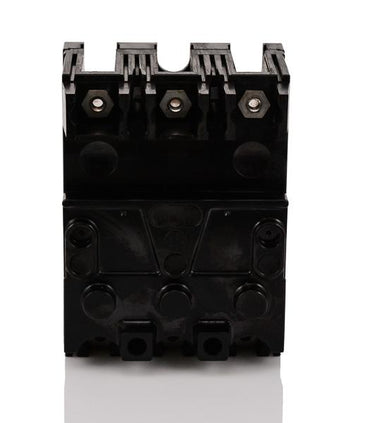

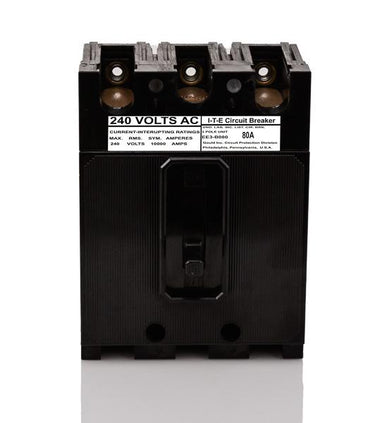

Siemens EE3B080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Siemens
EE3B080
Molded Case Circuit Breaker
Brand
Siemens
SKU
EE3B080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EE3B080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens EE3B080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EE3B080 |
| Series | EE |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Siemens EE3B080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EE3B080-R |
| Series | EE |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Operating as a core component in commercial distribution, the Siemens EE3B080 is an 80A, 3-pole legacy MCCB. It utilizes proven thermal-magnetic trip technology to safeguard circuits against overloads. This E-Frame breaker features a bolt-on design, making it compatible with classic Siemens FC, FE, CDP, P2, and P3 panelboards. For system upgrades, it is replaced by the ED23B080. Delivering a 10kAIC rating at 240VAC, the unit is HACR rated and includes load-side lugs for 10-1/0 AWG wire.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EE3B080 |
| Series | EE |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens FC, FE, CDP, P2, P3 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhich Siemens panelboards are compatible with the EE3B080 breaker?
This bolt-on branch breaker is designed for installation in Siemens FC, FE, CDP, P2, and P3 series commercial panelboards.
Is the EE3B080 an obsolete frame, and what is the direct replacement?
Yes, the EE frame is a legacy molded case circuit breaker. For system upgrades or modern replacements, the Siemens ED23B080 is the recommended current-generation equivalent.
Is the EE3B080 suitable for DC applications?
Yes, in addition to its standard AC ratings, this breaker is rated for use in 250V DC systems with a 10kA interrupting capacity.
Is the EE3B080 HACR rated for HVAC applications?
Yes, this breaker carries an HACR rating, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Can the EE3B080 be installed in standard plug-on load centers?
No, the EE3B080 is a bolt-on molded case circuit breaker designed strictly for commercial panelboards. It will not fit in residential plug-on load centers.
