Siemens EH2B060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
EH2B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
EH2B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

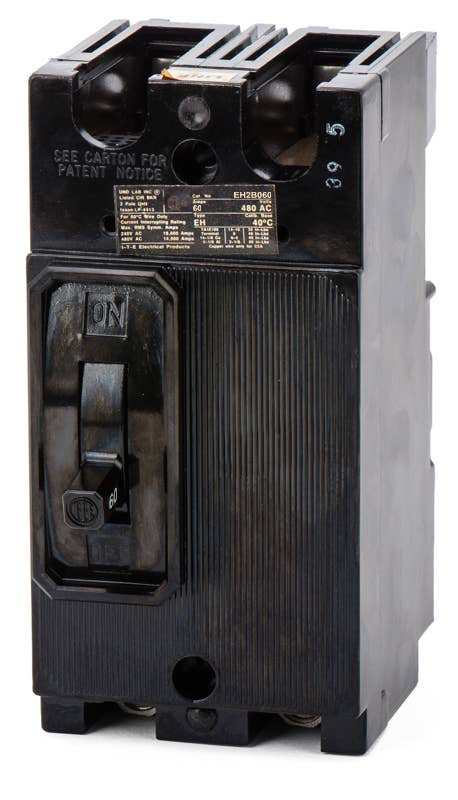

Siemens EH2B060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for older distribution systems, the Siemens EH2B060 is a 60A, 2-pole molded case circuit breaker. This legacy E-Frame component provides essential long-time and instantaneous trip functions for 480VAC applications. Mounting securely via a bolt-on configuration, it integrates into Siemens and ITE Type E2, F2, and P1 panelboards. If a newer alternative is required, the ED42B060 serves as the substitute. The breaker features a 14kAIC rating at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EH2B060 |
| Series | EH |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens / ITE Panelboards (Type E2, F2, P1) |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
4 answersWhich panelboards are compatible with the EH2B060 circuit breaker?
The EH2B060 is designed for use in Siemens and legacy ITE panelboards, specifically types E2, F2, and P1. It features a bolt-on connection for secure mounting directly to the panel bus.
Are the trip settings on the EH2B060 adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) trip functions are factory-set and cannot be adjusted in the field.
Can I use the Siemens EH2B060 to replace a legacy ITE EH2B060?
Yes. Siemens acquired ITE and maintained the same physical dimensions and mounting hardware for the EH frame. The Siemens EH2B060 is a direct, drop-in replacement for the original ITE version.
What safety precautions should be taken before installing the EH2B060?
Always de-energize the panelboard before installation or maintenance. Verify that the power is completely off using a properly rated voltage tester, and follow all applicable NEC guidelines and local electrical codes.
