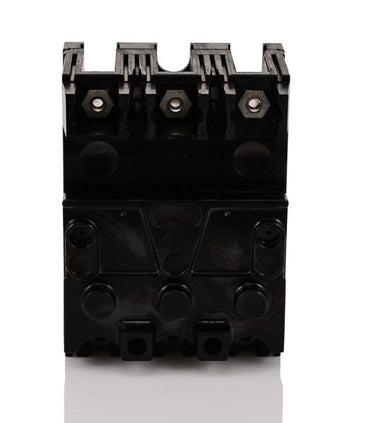

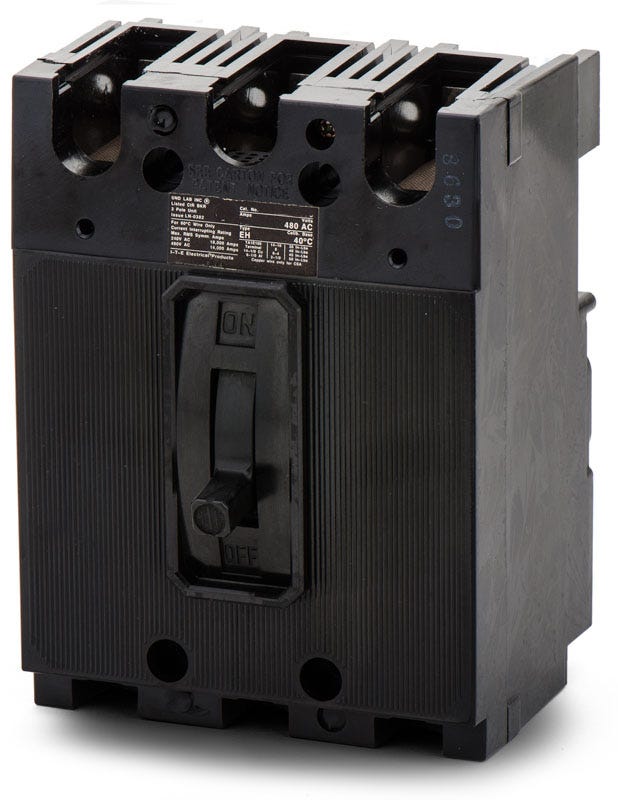

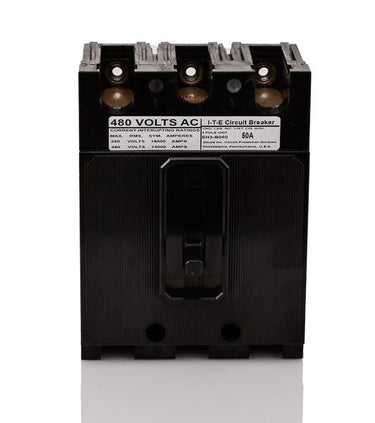

Siemens EH3B050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Siemens
EH3B050
Molded Case Circuit Breaker
Brand
Siemens
SKU
EH3B050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EH3B050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens EH3B050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EH3B050 |
| Series | EH |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Quantity
Siemens EH3B050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EH3B050-R |
| Series | EH |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Providing essential long-time and instantaneous protection, this legacy E-frame MCCB delivers dependable thermal-magnetic trip functions for industrial applications. The three-pole 50A breaker supports 480VAC maximum voltage systems in commercial facilities. Designed with a bolt-on mounting style, it installs into Siemens P1, P2, and P3 panelboards, as well as classic ITE enclosures. When upgrading, the ED43B050 serves as the replacement for this model. It features a 14 kAIC rating at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EH3B050-R |
| Series | EH |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the EH3B050 circuit breaker?
This breaker is designed for installation in legacy ITE panelboards as well as modern Siemens P1, P2, and P3 panelboards.
What is the direct replacement for the legacy EH3B050 circuit breaker?
The Siemens ED43B050 serves as the modern replacement for the EH3B050, offering the same 50A rating and 14kAIC at 480VAC.
What wire sizes are accepted by the standard lugs on the EH3B050?
The standard lugs accommodate 14 AWG through 1/0 AWG copper or aluminum conductors.
Can the EH3B050 be used in direct current (DC) applications?
Yes, this breaker is rated for DC applications up to 250VDC with an interrupting capacity of 10kA.
How does the EH3B050 mount into the panelboard?
It features a bolt-on connection type, securing directly to the panel bus rather than snapping into place.
Are the trip settings adjustable on the EH3B050?
No, it features a fixed thermal and fixed magnetic trip unit providing standard long-time and instantaneous (LI) protection.
