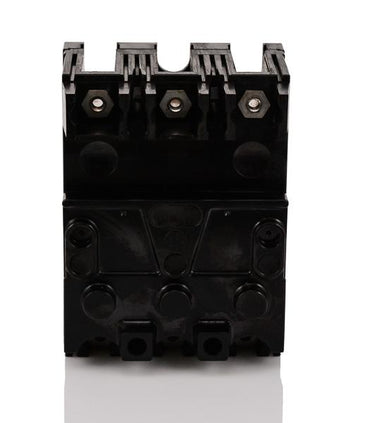

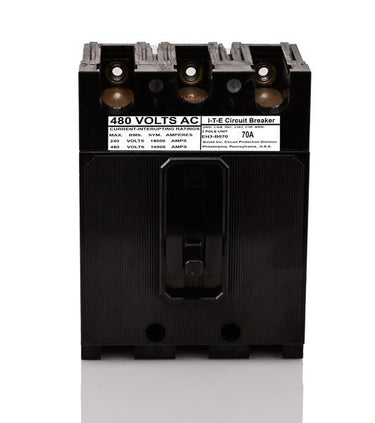

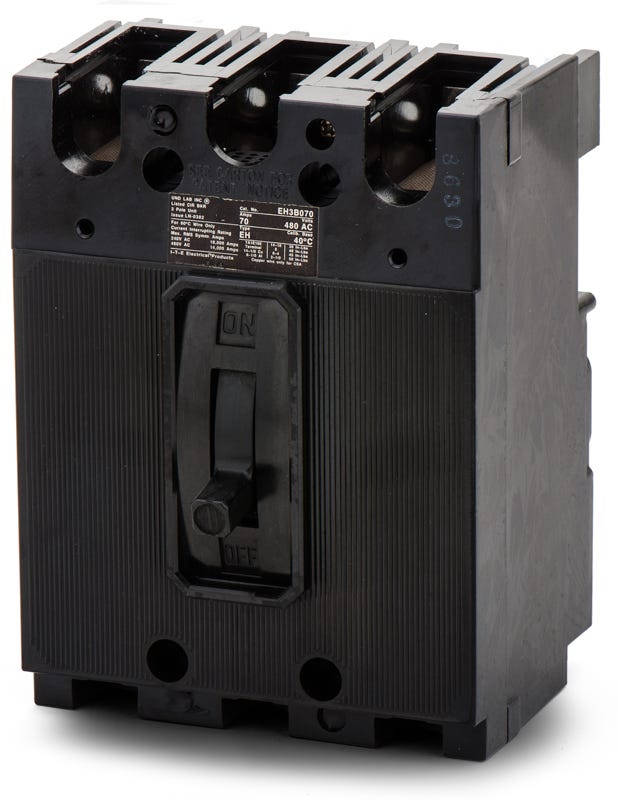

Siemens / ITE EH3B070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Siemens / ITE
EH3B070
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
EH3B070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE EH3B070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens / ITE EH3B070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens / ITE |
|---|---|
| Part Number | EH3B070 |
| Series | EH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Quantity
Siemens / ITE EH3B070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens / ITE |
|---|---|
| Part Number | EH3B070-R |
| Series | EH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Designed to support existing three-phase commercial infrastructure, the Siemens EH3B070 provides robust thermal-magnetic protection. This 70A, three-pole breaker belongs to the legacy E-Frame series. Featuring a standard bolt-on mounting style, it integrates into Siemens P2, P3, and classic ITE panelboards. It offers a direct physical replacement for original breakers and is the predecessor to the ED63B070. It delivers 14kAIC at 480VAC with fixed LI trip functions.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | EH3B070-R |
| Series | EH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens EH3B070?
This 3-pole legacy E-frame breaker is specifically designed for bolt-on installation in Siemens P2 and P3 panelboards, as well as older ITE panelboard systems.
Is there a modern cross-reference replacement for the legacy EH3B070?
Yes, the Siemens ED43B070 is the direct modern equivalent. It fits the exact same physical footprint for seamless integration into P2 and P3 panelboards, while offering an upgraded 18kA interrupting capacity at 480VAC.
What conductor types and sizes do the load lugs support?
The factory lugs are rated for dual-rated copper or aluminum conductors ranging from 10 AWG to 1/0 AWG. When wiring, always ensure conductors are tightened to the precise torque specifications printed directly on the breaker faceplate.
What protection does the LI trip function code provide?
The LI designation indicates that this thermal-magnetic breaker provides fixed Long-Time and fixed Instantaneous protection. The thermal element responds to gradual overcurrent conditions, while the magnetic element clears short-circuit faults immediately.
Can the trip settings on the EH3B070 be adjusted in the field?
No, this specific model features a non-interchangeable trip unit with fixed thermal and fixed magnetic elements. It does not support field adjustments to alter the trip curve thresholds.
