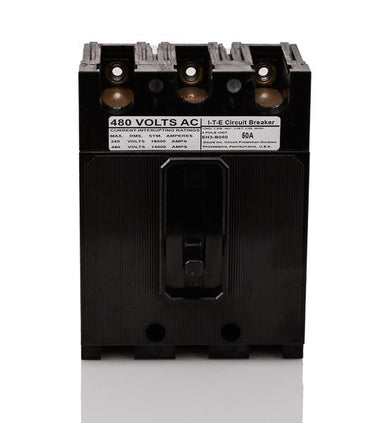

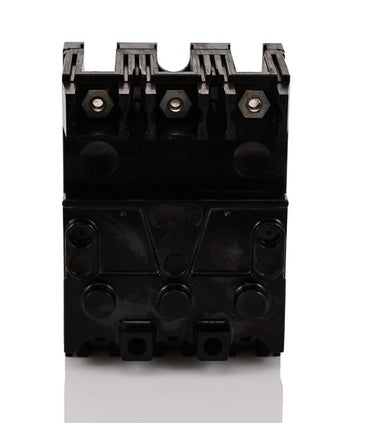

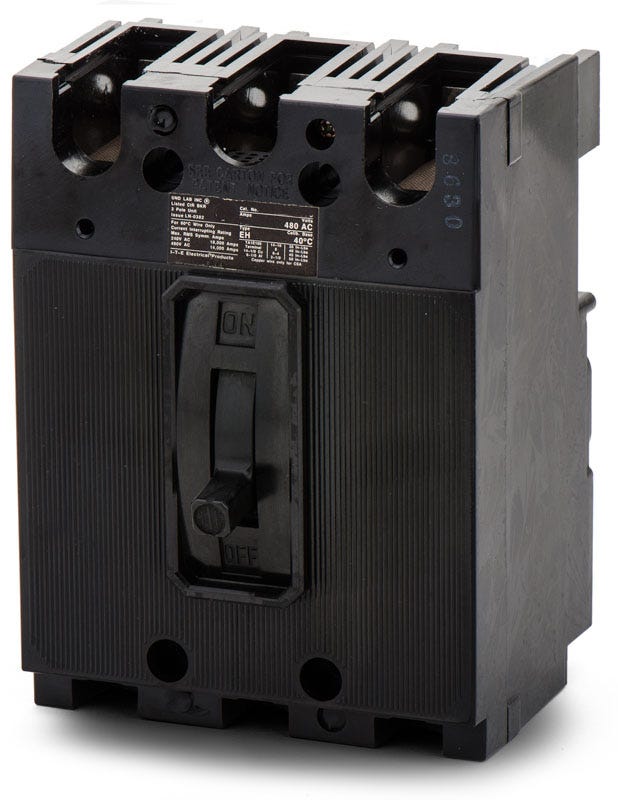

Siemens EH3B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
EH3B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
EH3B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EH3B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens EH3B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EH3B060 |
| Series | EH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Quantity
Siemens EH3B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | EH3B060-R |
| Series | EH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for three-phase commercial applications, this 60A molded case circuit breaker delivers consistent thermal-magnetic protection. It serves as a reliable safeguard for industrial machinery and facility distribution networks. Designed with a bolt-on mounting style, it fits seamlessly into Siemens P1, P2, P3, and legacy ITE panelboards. When seeking a current equivalent, this breaker is replaced by the ED43B060.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EH3B060-R |
| Series | EH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersCan the EH3B060 be installed in older ITE panelboards?
Yes. Since Siemens acquired ITE, this bolt-on circuit breaker is fully compatible with legacy ITE panelboards as well as modern Siemens P1, P2, and P3 panelboards. It serves as an exact drop-in replacement for original ITE breakers sharing the same catalog number.
What is the current Siemens replacement for the EH3B060?
The EH3B060 is a legacy EH frame circuit breaker. When a modern equivalent is required, it is typically replaced by the ED43B060 from the Siemens ED frame family.
Does this breaker include load-side lugs?
Yes, the breaker comes equipped with factory-installed load lugs. The terminals accept a wire range of 14 AWG to 1/0 AWG and are rated for both copper and aluminum conductors.
Is the trip unit on the EH3B060 adjustable?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. It provides standard long-time and instantaneous (LI) protection functions.
Does the EH3B060 mount onto a DIN rail?
No, this model features a bolt-on mounting style. It is designed to bolt directly to the busbars of compatible commercial panelboards rather than clipping onto a DIN rail.
