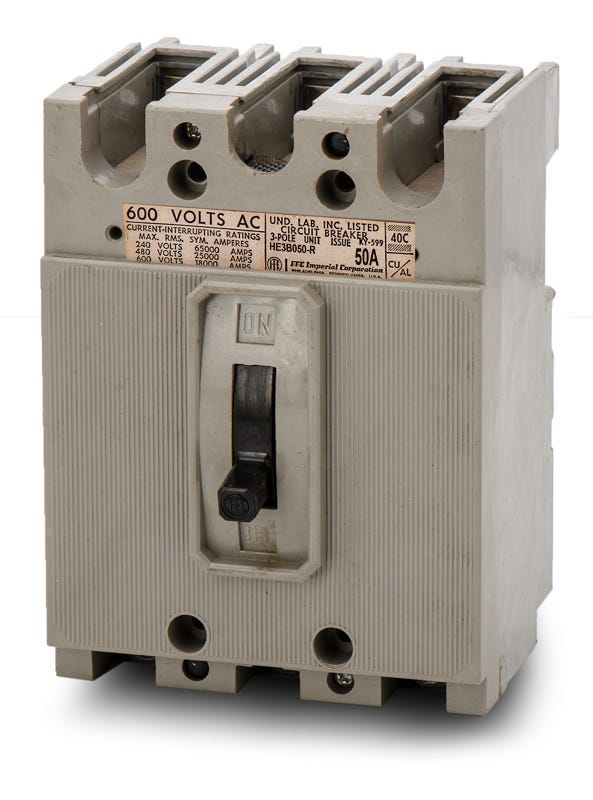

Siemens HE3B050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Siemens
HE3B050
Molded Case Circuit Breaker
Brand
Siemens
SKU
HE3B050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HE3B050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Siemens HE3B050 delivers 50 amps of thermal-magnetic protection. This 3-pole MCCB is ideal for commercial and industrial facilities requiring dependable long-time and instantaneous trip functions. Designed with a bolt-on mounting style, it fits seamlessly into Siemens P1, P2, and P3 panelboards. Facilities looking to upgrade can substitute this component with the newer HED63B050 breaker. With a 25kAIC rating at 480VAC, it handles fault currents.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HE3B050 |
| Series | HE |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | HE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the HE3B050 breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as legacy ITE panelboards.
What wire gauge range is supported by the standard lugs?
The factory-installed lugs accept either copper or aluminum conductors ranging from 10 AWG to 1/0 AWG.
Is the HE3B050 rated for direct current systems?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with a 10kA interrupting capacity.
Can this unit replace older ITE HE frame breakers?
Yes. Siemens acquired ITE and maintained the same physical dimensions and mounting for the HE frame. The Siemens HE3B050 is a direct replacement for the legacy ITE HE3B050.
Can the trip settings be adjusted on this breaker?
No, the HE3B050 features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be modified in the field.
