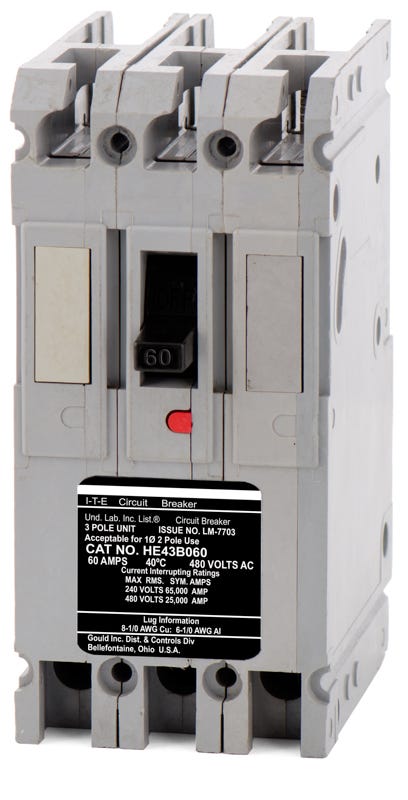

Siemens HE43B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
HE43B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
HE43B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HE43B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens HE43B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HE43B060 |
| Series | HE |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Siemens HE43B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HE43B060-R |
| Series | HE |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
The Siemens HE43B060 is a 3-pole, 60A molded case circuit breaker designed for commercial power distribution, utilizing thermal-magnetic trip technology. Equipped with a bolt-on mounting mechanism, it installs into Siemens P1, P2, P3, and older ITE panelboards. It is superseded by the HED43B060. With an interrupt capacity of 25kAIC at 480VAC, it includes a trip-free mechanism, reverse feed capability, and HACR certification.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HE43B060-R |
| Series | HE |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat is the direct replacement for the HE43B060?
The HE43B060 is a legacy E-frame breaker that has been superseded by the Siemens HED43B060. The HED43B060 is an exact physical match and mounts into the same panelboard spaces.
Which panelboards are compatible with the HE43B060?
This bolt-on E-frame breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as legacy ITE panelboards.
Can the HE43B060 be used in DC voltage applications?
Yes, in addition to its 480VAC rating, this thermal-magnetic breaker is rated for up to 250VDC for specific direct current applications.
Does the HE43B060 support reverse feeding?
Yes, this breaker features reverse feed capability, allowing it to be back-fed in applications where the power source is connected to the load terminals.
Is the HE43B060 approved for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What wire sizes do the HE43B060 load lugs accept?
The standard load side lugs accommodate copper or aluminum conductors ranging from 10 AWG to 1/0 AWG.
Does the HE43B060 feature a trip-free mechanism?
Yes, the trip-free mechanism ensures the breaker will trip during an overcurrent or short-circuit event even if the operating handle is physically held in the ON position.
Can internal accessories be added to the HE43B060?
Yes, this E-frame breaker supports internal accessories such as shunt trips, auxiliary switches, alarm switches, and undervoltage releases.
