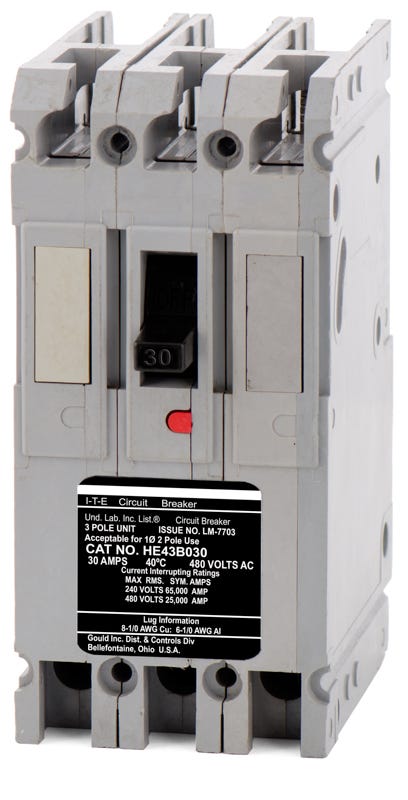

Siemens HE43B030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
HE43B030
Molded Case Circuit Breaker
Brand
Siemens
SKU
HE43B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HE43B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HE43B030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HE43B030 |
| Series | HE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC |
| Frame Type | HE4 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, HID Rated, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Siemens HE43B030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HE43B030-R |
| Series | HE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC |
| Frame Type | HE4 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, HID Rated, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial facilities, the Siemens HE43B030 is a 30A molded case circuit breaker. It provides dependable protection for three-phase systems. This bolt-on MCCB fits Siemens P1, P2, and P3 panelboards, plus older ITE enclosures. It replaces legacy HE-frame installations, with the HED43B030 as its current substitute. The breaker features a 25kA interrupt capacity at 480VAC and is HID rated for lighting applications. It utilizes a trip-free mechanism to ensure safety during faults.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HE43B030 |
| Series | HE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC |
| Frame Type | HE4 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, HID Rated, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat panelboards accept the HE43B030 circuit breaker?
This bolt-on breaker is compatible with Siemens P1, P2, and P3 panelboards, as well as legacy ITE panelboards.
Is the HE43B030 interchangeable with older ITE breakers?
Yes, the HE43B030 is a legacy HE frame circuit breaker originally manufactured by ITE. Siemens acquired ITE and continued producing this exact frame, making it a direct drop-in replacement for older ITE enclosures.
What is the current production replacement for the HE43B030?
The HED43B030 is the modern substitute for legacy HE frame installations requiring a 30A, 3-pole breaker with a 25kAIC rating at 480VAC.
Can the HE43B030 be used in direct current (DC) systems?
Yes, in addition to its AC ratings, this thermal magnetic breaker is rated for up to 250VDC applications.
How does the interrupting capacity change between 240V and 480V applications?
The HE43B030 provides a maximum interrupting capacity of 65kAIC when used on 240VAC systems, which drops to 25kAIC when applied to 480VAC systems.
Are the trip settings adjustable on the HE43B030?
No, this breaker features fixed thermal and fixed magnetic trip elements for both long-time and instantaneous protection.
What wire sizes and materials are compatible with the HE43B030 lugs?
The factory lugs accept 10 AWG to 1/0 AWG conductors and are rated for both copper (Cu) and aluminum (Al) wire.
How does the HE43B030 mount inside the panelboard?
This is a bolt-on MCCB. It secures directly to the panelboard busbars using bolted connections, providing a more secure mechanical and electrical joint than plug-in alternatives.
