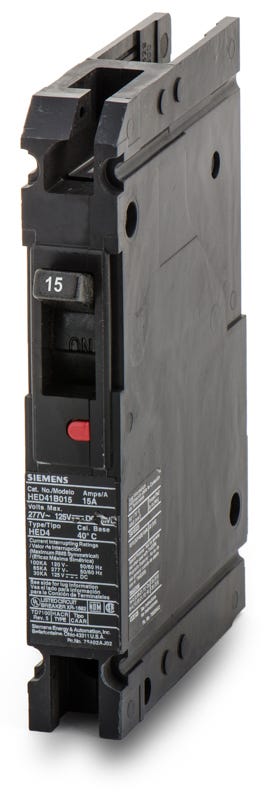

Siemens HED41B015L Molded Case Circuit Breaker
- 15A
- 1 Pole
- Unit Mount
Siemens
HED41B015L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED41B015L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED41B015L - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
The HED41B015L is part of the Sentron ED frame family, functioning as a 1-pole, 15A molded case circuit breaker. It provides dependable thermal magnetic protection for commercial enclosures, switchboards, and motor control centers. This unit mount MCCB features line and load side lugs for straightforward installation. It is officially replaced by the newer 3VA5115-6EC11-0AA0 frame. Rated for 100 kAIC at 120VAC, the breaker includes fixed trip settings and is both HACR and SWD rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED41B015L |
| Series | HED4 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Line and Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, SWD Rated, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, SWD Rated |
Product FAQs
7 answersWhat does the "L" suffix in the HED41B015L catalog number indicate?
The "L" suffix means the circuit breaker is supplied with both line and load side lugs factory-installed. Standard Siemens ED frame breakers typically include load side lugs only.
Can the Siemens HED41B015L be reverse fed?
Yes. Because Siemens ED frame circuit breakers feature a non-interchangeable trip unit, the HED41B015L is suitable for reverse feed applications in accordance with UL 489 standards.
What types of equipment will accept the HED41B015L breaker?
This unit mount ED frame breaker is designed for installation in compatible Siemens Sentron series enclosures, switchboards, and motor control centers.
Is the HED41B015L rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for 125VDC systems with a 30kA interrupting capacity.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the HED41B015L features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous trip functions cannot be adjusted in the field.
Does the HED41B015L provide arc fault or ground fault protection?
No. This is a standard thermal-magnetic breaker that provides long-time and instantaneous trip functions for overload and short-circuit protection. It does not include AFCI or GFCI circuitry.
Can the HED41B015L replace older ITE circuit breakers?
Yes, this Siemens Sentron breaker can replace legacy ITE or Siemens 1-pole, 15-amp ED4 and HED4 frame breakers, provided the voltage and interrupting ratings meet your system requirements.
