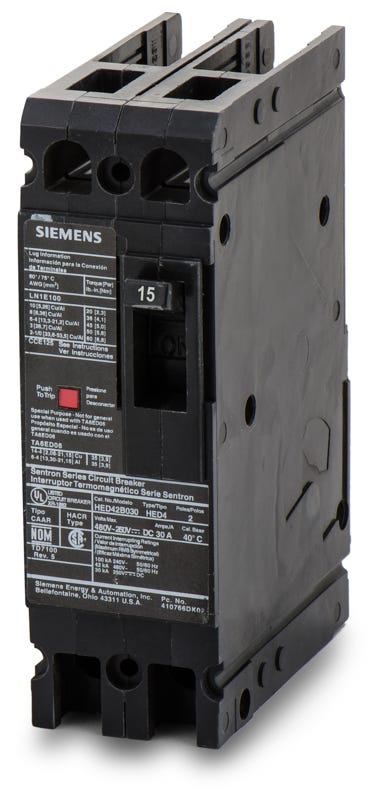

Siemens HED42B015L Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Siemens
HED42B015L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED42B015L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

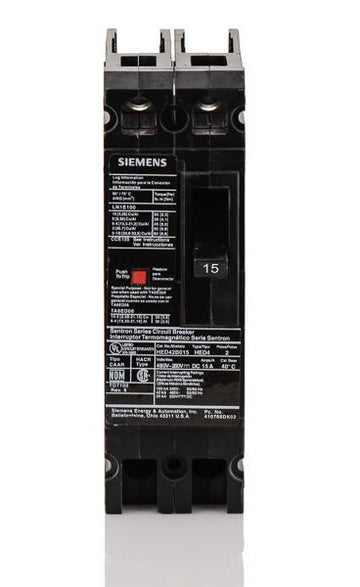

Siemens HED42B015L - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Siemens HED42B015L is a 2-pole, 15-amp molded case circuit breaker from the Sentron series. It features a unit mount design with line and load lugs included, making it ideal for standard enclosures, switchboards, and motor control centers. Rated for 42 kAIC at 480VAC and 100 kAIC at 240VAC, this ED frame breaker utilizes fixed thermal-magnetic trip technology. Note: This legacy unit is officially replaced by the 3VA5115-6EC21-0AA0.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED42B015L |
| Series | HED4 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the "L" suffix in the HED42B015L catalog number indicate?
The "L" suffix means the breaker is factory-supplied with both line and load side lugs installed. Standard Siemens ED frame breakers are typically supplied with only load side lugs.
Can the HED42B015L circuit breaker be reverse fed?
Yes. Siemens Sentron ED frame thermal-magnetic circuit breakers can be reverse connected, provided they are not factory marked with "LINE" and "LOAD" designations.
What internal accessories are compatible with this breaker?
You can field-install internal accessories such as shunt trips, auxiliary switches, alarm switches, and undervoltage releases. Only one internal accessory module can be added per breaker, and it is typically mounted in the left pole.
Is the HED42B015L a plug-in or bolt-on breaker?
This is a unit mount breaker designed for feed-thru connections. It bolts directly to the mounting surface or bus in switchboards and motor control centers, rather than plugging into a load center busbar.
What is the modern replacement for the HED42B015L?
This legacy Sentron ED frame breaker is officially replaced by the Siemens 3VA5115-6EC21-0AA0 molded case circuit breaker.
What is the maximum frame rating for this breaker family?
The HED42B015L is part of the Siemens Sentron ED frame family, which features a compact design with a maximum overall frame rating of 125 amps for standard depth panelboards.
