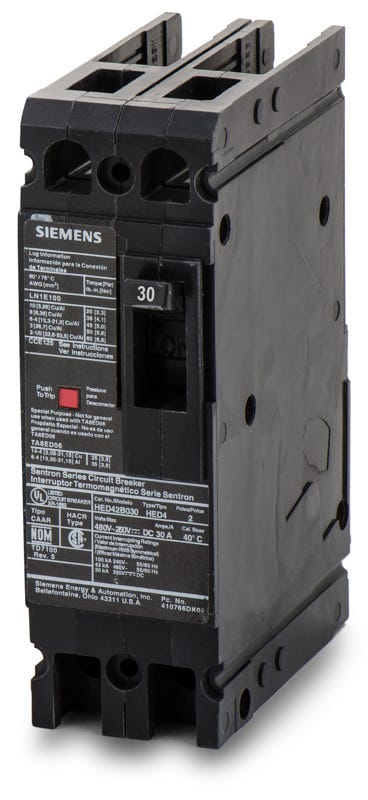

Siemens HED42B030L Molded Case Circuit Breaker
- 30A
- 2 Pole
- Unit Mount
Siemens
HED42B030L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED42B030L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED42B030L - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Utilizing a versatile unit-mount configuration, this 30-amp MCCB provides essential thermal-magnetic protection for commercial power distribution. Unlike standard bolt-on models, this version includes line and load lugs for installation into standalone enclosures. The 3VA5130-6ED26-0AA0 is its modern equivalent. The breaker achieves a 100kAIC rating at 240VAC and 42kAIC at 480VAC. It features a non-interchangeable trip unit and carries an HACR certification.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED42B030L |
| Series | HED4 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Line and Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat types of equipment are compatible with the HED42B030L breaker?
This Sentron ED-frame breaker is designed for unit-mount installations in Siemens switchboards, motor control centers, and individual enclosures. It is not compatible with standard residential load centers that require plug-on breakers.
What wire gauge is supported by the standard lugs on this 30A breaker?
The factory-installed lugs accept 10 AWG to 1/0 AWG copper or aluminum wire. Ensure connections are torqued to the specifications listed on the breaker label during installation.
Does the HED42B030L support DC voltage applications?
Yes, in addition to its 480V AC rating, this thermal magnetic breaker is rated for 250V DC applications with an interrupting capacity of 30kAIC.
Can the trip curve be adjusted on the HED42B030L?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
How is the HED42B030L mounted inside a panel?
It is a unit-mount, feed-thru circuit breaker. It bolts directly to the chassis or mounting pan using standard ED-frame mounting hardware, rather than snapping onto a bus bar.
Does the HED42B030L replace older ITE ED-frame breakers?
Yes, Siemens Sentron ED-frame breakers are direct replacements for legacy ITE E-frame and ED-frame breakers of the same physical size and configuration. Always verify the required interrupting capacity before replacing an older unit.
Is it safe to install this breaker in a non-Siemens switchboard?
You should only install this breaker in Siemens or legacy ITE equipment specifically listed for Sentron ED-frame breakers. Using it in unapproved panels violates UL listings and creates a severe fire hazard.
