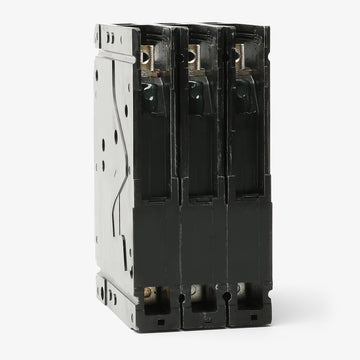

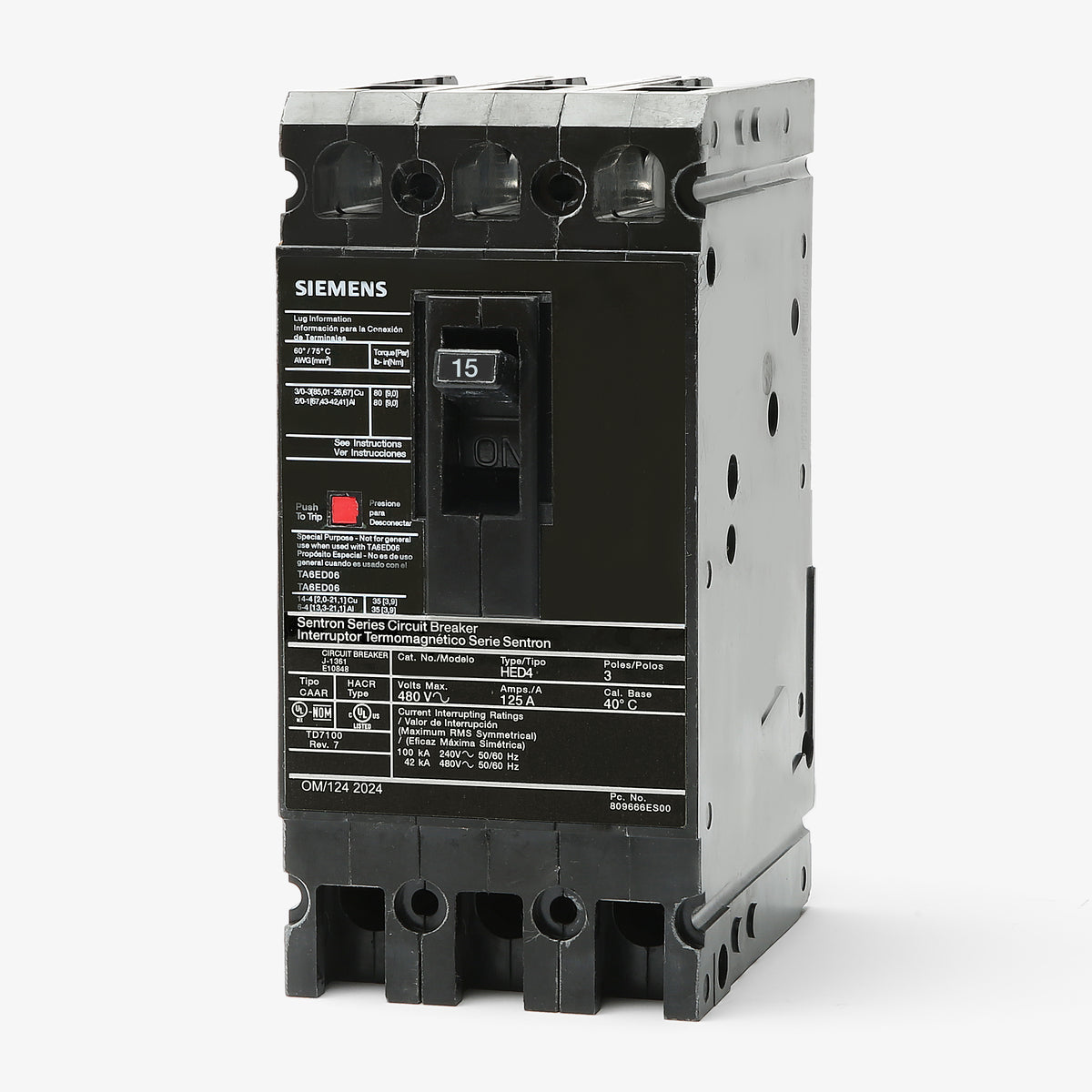

Siemens HED43B015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Siemens
HED43B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED43B015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED43B015 |
| Series | HED4 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu) / 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens HED43B015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED43B015-R |
| Series | HED4 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu) / 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Operating within the proven Sentron ED family, this 15A three-phase breaker delivers essential LI protection. It handles commercial distribution needs with a 42kAIC rating at 480VAC. The bolt-on connection ensures a stable fit into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards. It maintains existing infrastructure reliably. Equipped with factory-installed load side lugs, the unit is ready for wire termination. The HACR-rated construction also permits reverse feeding.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B015 |
| Series | HED4 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu) / 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (SA1E025) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the HED43B015?
This bolt-on circuit breaker is designed to mount directly into the busbars of Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.

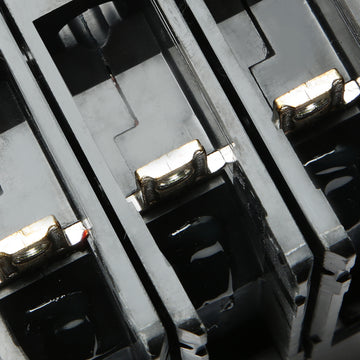

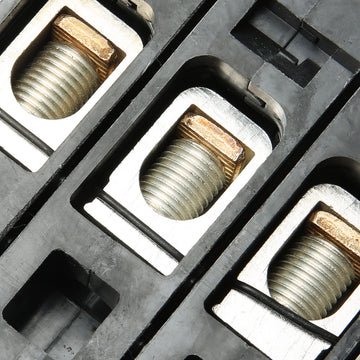

Are terminal lugs included on both the line and load sides of the breaker?
By default, this breaker includes load-side lugs only. Because it is a bolt-on breaker, the line side is designed to connect directly to the busbars of a panelboard. If you are installing it in a standalone enclosure, field-installable line-side lugs must be sourced separately.
What does the 'H' in the HED43B015 catalog number signify?
The 'H' indicates that this is a High-Interrupting capacity breaker. While it shares the same physical ED-frame footprint as a standard ED4 circuit breaker, the HED43B015 handles higher fault currents, offering an interrupting rating of 42kA at 480VAC and 100kA at 240VAC.
Is the HED43B015 suitable for reverse feeding?
Yes. Because it utilizes a non-interchangeable thermal-magnetic trip unit, this ED-frame circuit breaker is UL listed for reverse feed applications.
Can this breaker be used to protect direct current (DC) circuits?
Yes. In addition to its AC ratings, this thermal-magnetic breaker is fully approved for direct current applications, providing short-circuit protection with a 30kA interrupting capacity at 250VDC.
Will this breaker directly replace an older ITE HED43B015?
Yes. Siemens integrated the ITE electrical line, and current Siemens HED4 breakers are exact physical and electrical replacements for older ITE-branded breakers sharing the same catalog number.
