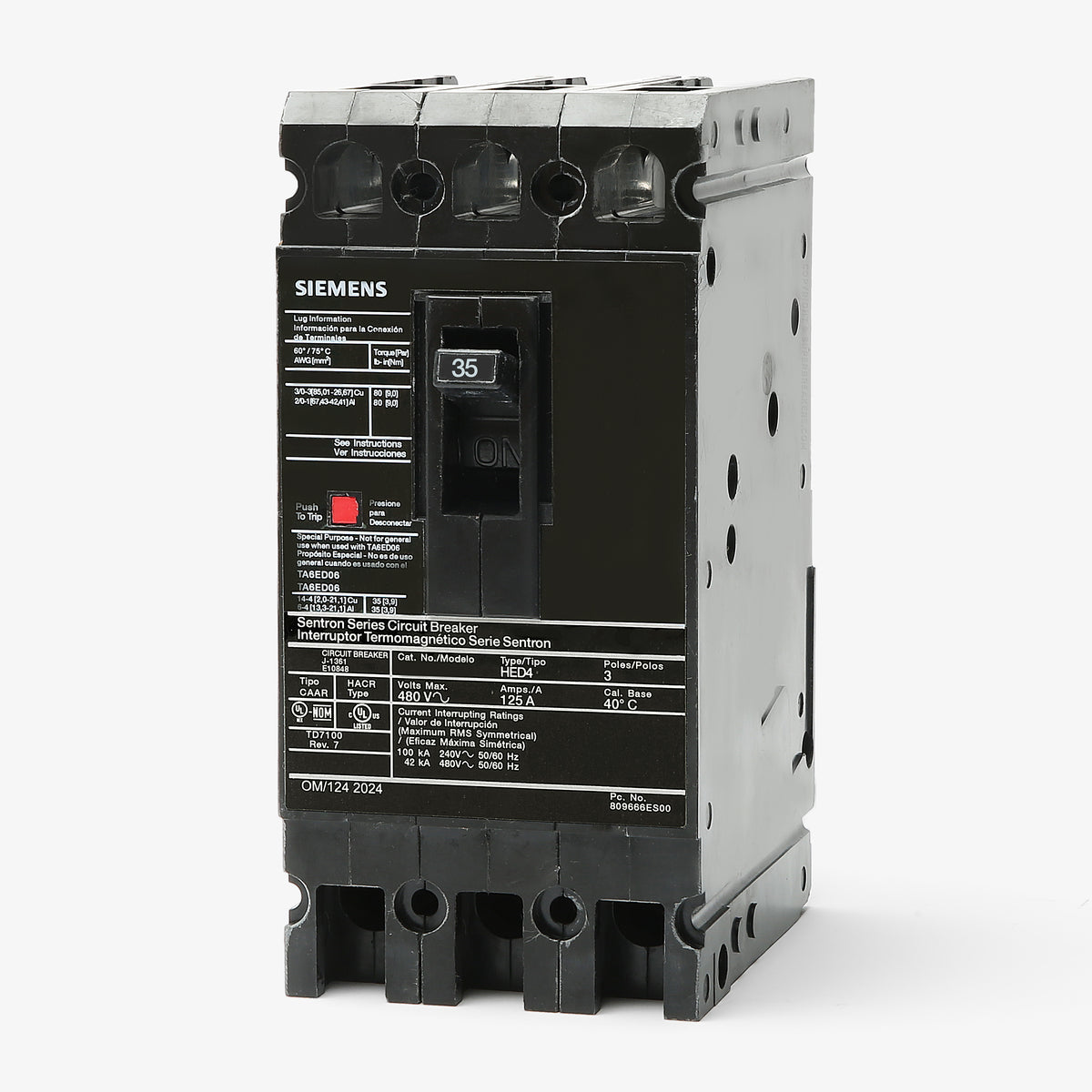

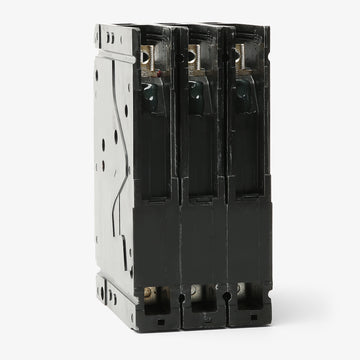

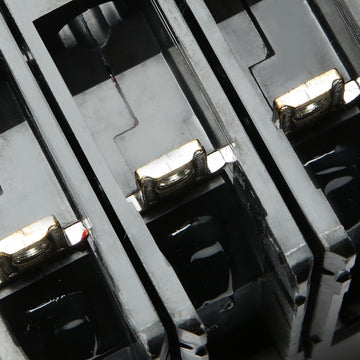

Siemens HED43B035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Siemens
HED43B035
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HED43B035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED43B035 |
| Series | HED4 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), SB Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Quantity
Siemens HED43B035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HED43B035-R |
| Series | HED4 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), SB Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Serving as a reliable overcurrent safeguard, this 35-amp ED-frame breaker offers fixed thermal and magnetic trip settings for commercial distribution networks. It mounts into Siemens Sentron P1, P2, and P3 panelboards as well as SB switchboards using a standard bolt-on connection. Delivering a 42kAIC rating at 480VAC, the device is fully HACR rated for HVAC equipment loads. Facilities upgrading their infrastructure can transition to the newer 3VA5135-6ED31-0AA0 using a compatible strap kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B035 |
| Series | HED4 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), SB Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
5 answersWhat is the difference between Siemens ED4 and HED4 circuit breakers?
The HED4 is the high-interrupting version of the standard ED4 frame. While a standard ED4 3-pole breaker has a standard interrupting capacity, the HED43B035 provides a higher interrupting rating of 42kAIC at 480VAC.
Can the HED43B035 be reverse fed?
Yes, Siemens ED frame thermal magnetic circuit breakers, including the HED43B035, can be reverse connected. They are not restricted by line and load markings.
What are the standard lug and wire size specifications for this breaker?

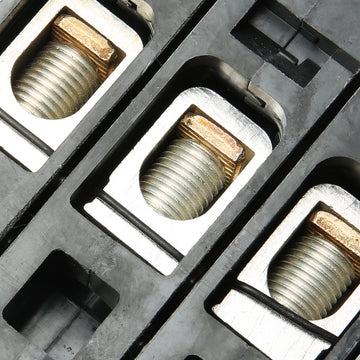

The HED43B035 comes standard with load lugs (catalog number LN1E100) that accept 10 AWG to 1/0 AWG copper or aluminum wire.
Is this breaker compatible with standard DIN rail mounting?
No, the HED43B035 is a bolt-on circuit breaker designed specifically for Siemens Sentron panelboards, SB switchboards, and motor control centers. It does not mount to a DIN rail.
Is the HED43B035 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
