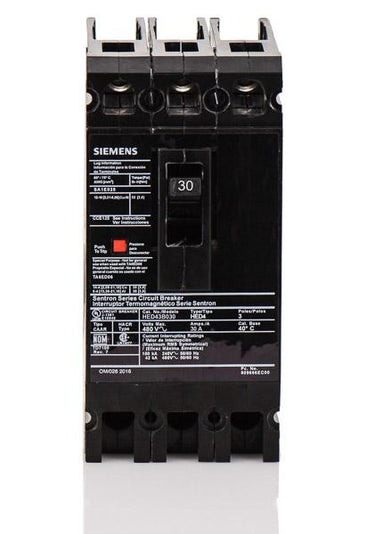

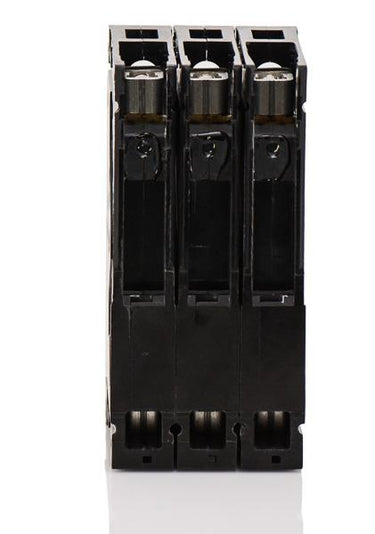

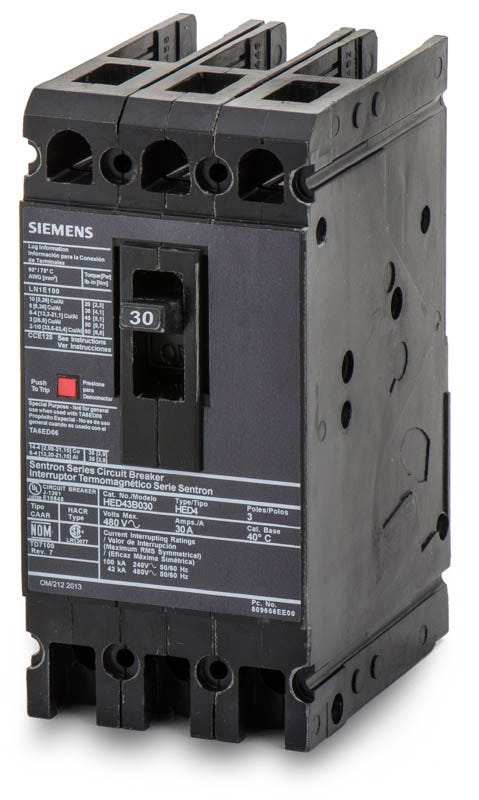

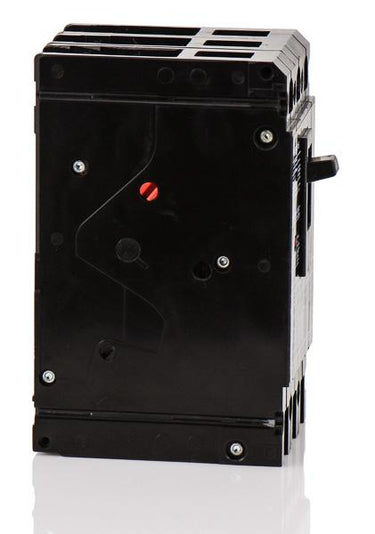

Siemens HED43B030L Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
Siemens
HED43B030L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B030L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B030L - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial switchboards and motor control centers, this 30-amp unit-mount breaker features factory-installed line and load lugs for standalone enclosure applications. The thermal-magnetic trip unit delivers precise long-time and instantaneous protection for critical commercial infrastructure. Capable of handling 42kA fault currents at 480VAC, it includes HACR and HID ratings for versatile deployment. This specific model is superseded by the 3VA5130-6EC36-0AA0 for newer installations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B030L |
| Series | HED4 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, HID Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhat does the L suffix in the HED43B030L catalog number mean?
The L suffix indicates that the circuit breaker is shipped factory-assembled with both line and load side lugs included. Without this suffix, the frame, trip unit, and lugs would typically be ordered or packaged separately.
How does the HED43B030L differ from a standard ED43B030L breaker?
The H in the HED4 prefix designates it as a high-interrupting capacity breaker. It safely clears higher fault currents (up to 42kA at 480VAC) compared to standard ED4 models, making it suitable for systems with higher available short-circuit current.
Can the Siemens HED43B030L be reverse fed?
Yes. Siemens Sentron ED-frame circuit breakers feature non-interchangeable trip units and are suitable for reverse feed applications where power flows from the bottom (load) to the top (line) terminals.
What type of mounting does the HED43B030L require?
This is a unit-mount, feed-thru circuit breaker. It is designed to be bolted directly to the chassis or backpan of compatible Siemens switchboards, motor control centers, and standalone enclosures, rather than plugging onto a busbar.
Is the trip unit on the HED43B030L adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit (LI functions). The long-time and instantaneous trip settings are factory-calibrated and cannot be modified in the field.
