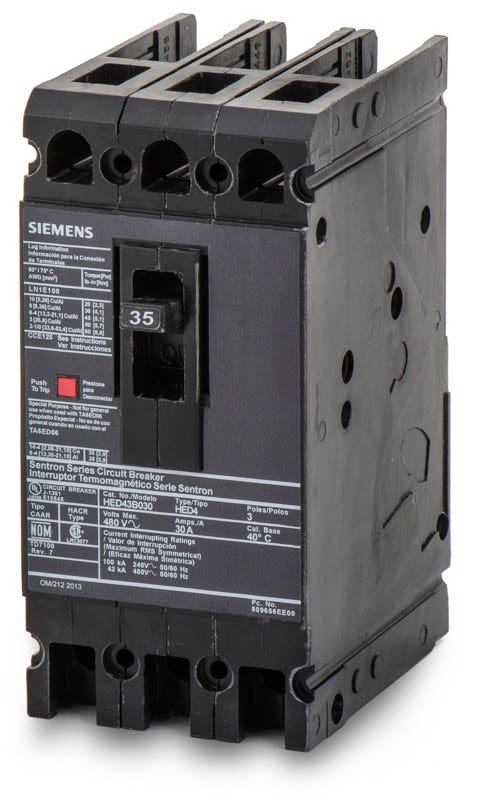

Siemens HED43B035L Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Siemens
HED43B035L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B035L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

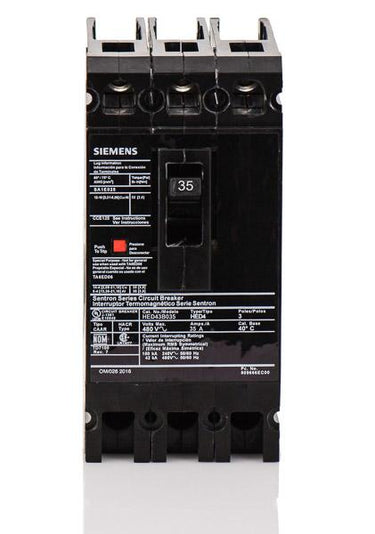

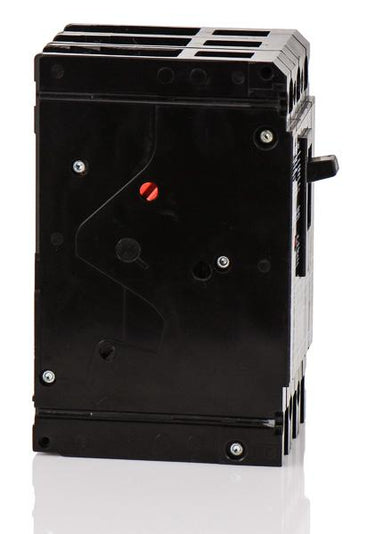

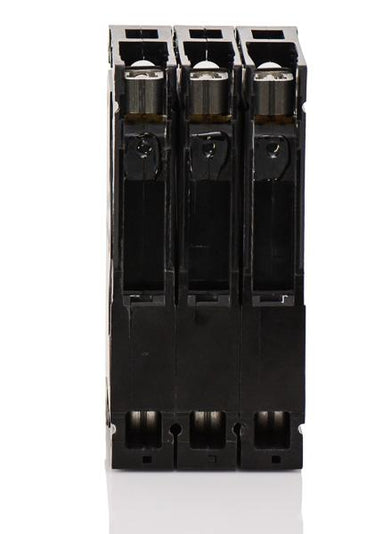

Siemens HED43B035L - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Designed for standalone enclosure mounting, the Siemens HED43B035L is a 3-pole, 35A molded case circuit breaker. It delivers dependable thermal-magnetic overcurrent protection for demanding industrial environments. This unit-mount breaker installs into Siemens enclosures, switchboards, and motor control centers. It features a reverse-feed capable design and is eventually replaced by the 3VA5135-6EC31-6AA0. With a 42kAIC rating at 480VAC, it safely clears severe electrical faults.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B035L |
| Series | HED4 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Current Limiting |
Product FAQs
6 answersWhat does the "L" suffix mean in the HED43B035L catalog number?
The "L" suffix indicates that the breaker comes factory-assembled with both line and load side lugs installed.
What type of mounting does the Siemens HED43B035L require?
This is a unit-mount, feed-thru circuit breaker. It is designed to be bolted directly into Siemens enclosures, switchboards, or motor control centers rather than plugging into a standard load center bus.
What wire sizes and materials are compatible with the terminals on this breaker?
The factory-installed lugs accept 10 AWG to 1/0 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
Can the HED43B035L be used in direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for use in 250VDC systems with an interrupting capacity of 30kA.
What trip functions are included in the HED43B035L?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions. Both the thermal and magnetic trip settings are fixed and cannot be adjusted.
Is the HED43B035L interchangeable with standard plug-on breakers?
No, this is an ED-frame molded case circuit breaker designed for unit mounting in industrial switchboards and motor control centers. It will not fit in standard residential plug-on load centers.
