Siemens HED43B060L Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Siemens
HED43B060L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B060L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

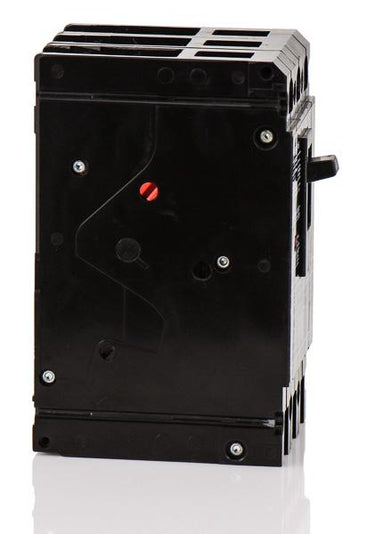

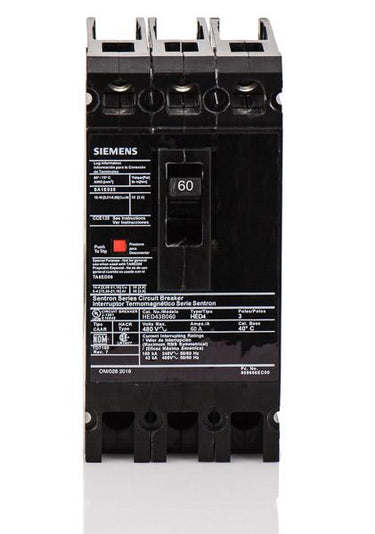

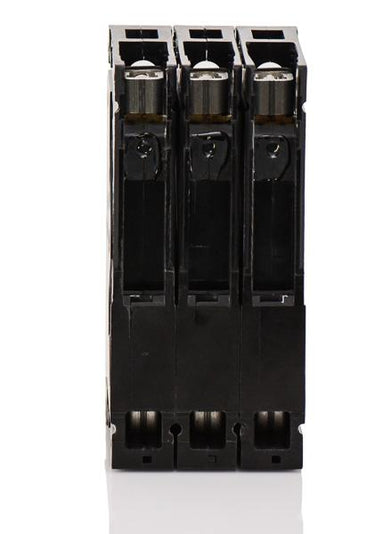

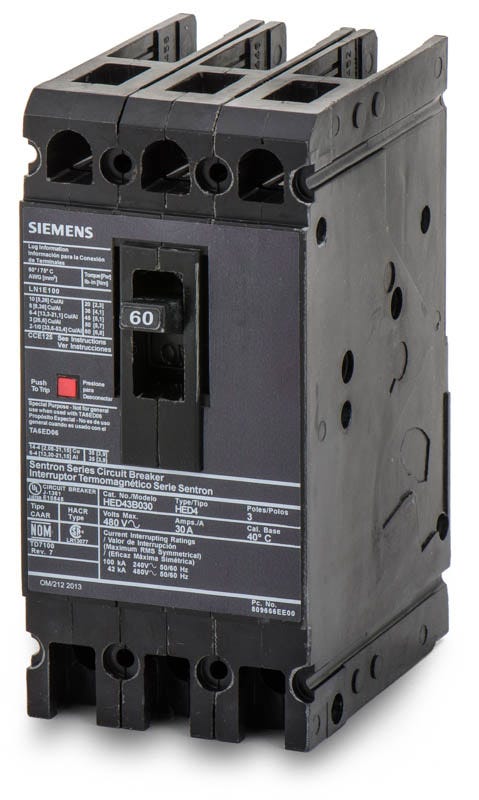

Siemens HED43B060L - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens HED43B060L provides reliable long-time and instantaneous trip functions. This 3-pole, 60A unit mount MCCB includes factory-installed LN1E100 line and load lugs for immediate wiring. With a robust 100kA rating at 240V and 42kA at 480V, it handles demanding fault currents. While Siemens has transitioned to the 3VA5160-6ED36-0AA0, this legacy Sentron ED frame remains essential for maintaining existing switchboards.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B060L |
| Series | HED4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat is the difference between the Siemens ED43B060 and HED43B060L?
The primary difference is the interrupting capacity. The standard ED43B060 is rated for 18 kAIC at 480V, while the HED43B060L is the high-interrupting version rated for 42 kAIC at 480V. Both share the same physical dimensions.
Can the Siemens HED43B060L be reverse fed?
Yes. Siemens ED frame circuit breakers, including the HED43B060L, feature non-interchangeable trip units and are UL listed for reverse feed applications.
What replacement lug kit is used for the HED43B060L?
The standard replacement lug kit for this 60A ED frame breaker is the Siemens LN1E100, which accommodates 10 AWG to 1/0 AWG copper or aluminum wire.
Is there a higher interrupting version of the HED43B060L available?
Yes. If your application requires a higher short-circuit current rating, the HHED63B060 offers a 65 kAIC rating at 480V in the exact same ED frame footprint.
Is the HED43B060L HACR rated?
Yes, this thermal-magnetic circuit breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment branch circuit protection.
Can the trip unit on the HED43B060L be swapped or adjusted?
No. The HED43B060L features a fixed thermal-magnetic trip unit that is non-interchangeable and non-adjustable.
