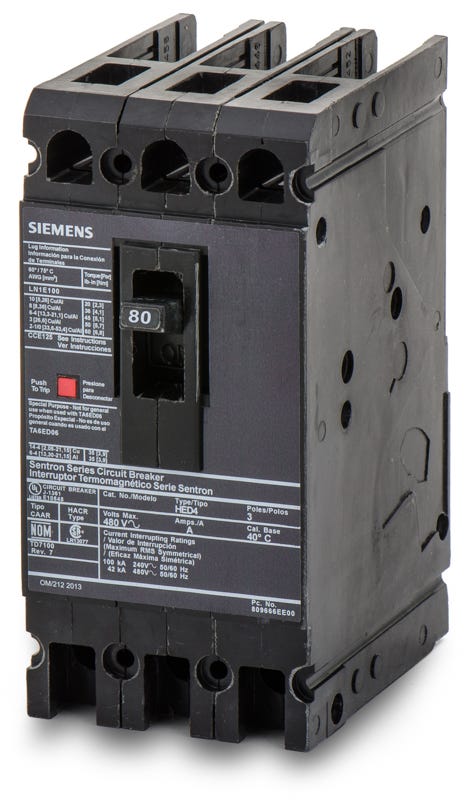

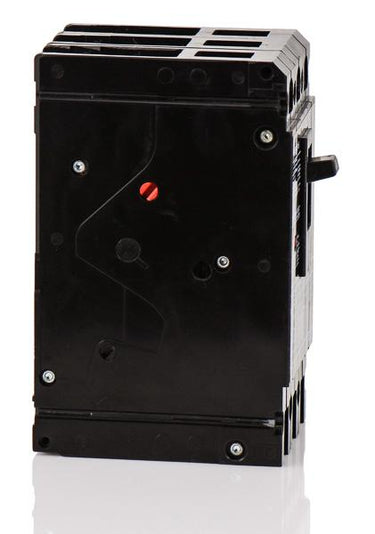

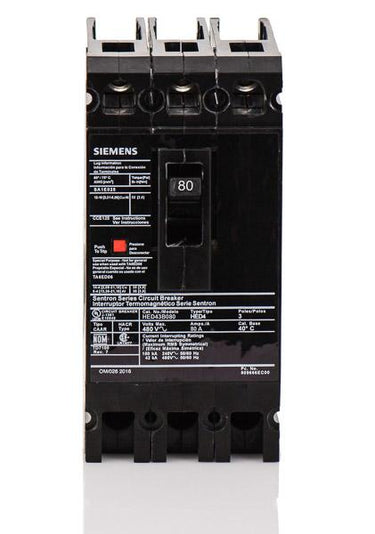

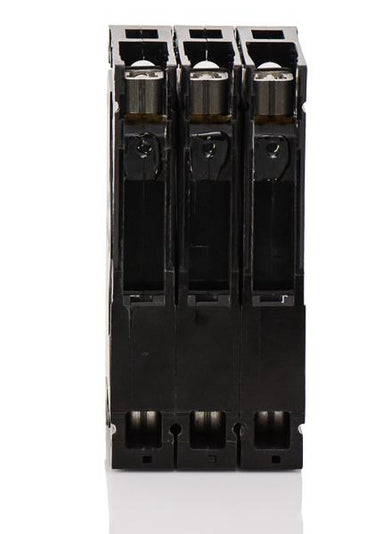

Siemens HED43B080L Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
Siemens
HED43B080L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B080L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B080L - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron ED frame family, this 80A three-pole breaker delivers robust high-interrupting capacity for commercial and industrial facilities. It installs into standard enclosures, switchboards, and motor control centers requiring a unit mount configuration. Featuring fixed thermal and magnetic trip elements, the device provides 42kAIC at 480VAC and includes both line and load lugs. Note that this legacy component is replaced by the 3VA5180-6EC36-0AA0 for newer installations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B080L |
| Series | HED4 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersIs the Siemens HED43B080L still in active production, or is there a direct replacement?
The HED43B080L is a legacy Sentron ED frame breaker. For newer installations, Siemens recommends the 3VA5180-6EC36-0AA0 as the modern equivalent.
What does the L suffix indicate on the HED43B080L catalog number?
The L suffix indicates that the breaker is supplied with both line and load side lugs factory installed. Standard ED frame breakers without this suffix typically include load side lugs only.
Can the HED43B080L be reverse fed?
Yes. Because this ED frame breaker features a non-interchangeable trip unit, it is suitable for reverse feed applications according to UL 489 standards.
Are the trip units on the HED43B080L interchangeable?
No. Like all Siemens ED frame circuit breakers, the HED43B080L features a fixed, non-interchangeable thermal magnetic trip unit.
How does the HED43B080L mount inside an enclosure or panel?
This is a unit mount, feed-thru circuit breaker. It bolts directly to the mounting surface or backpan in standard enclosures, switchboards, and motor control centers, rather than plugging onto a busbar.
How is the HED43B080L wired for 250VDC applications?
When applying this 3 pole thermal magnetic breaker on a 250VDC system, typically two poles are used, wiring one pole on each leg of the DC supply circuit to achieve the 30kA interrupting rating.
