Siemens HED43B125L Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Siemens
HED43B125L
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B125L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

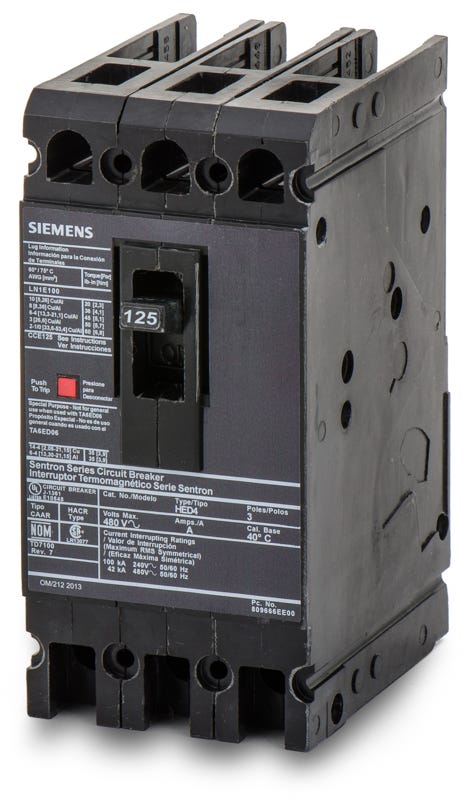

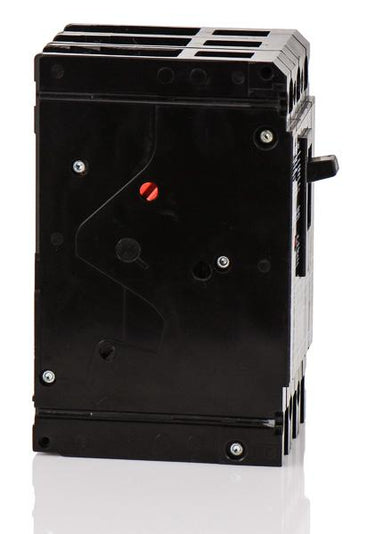

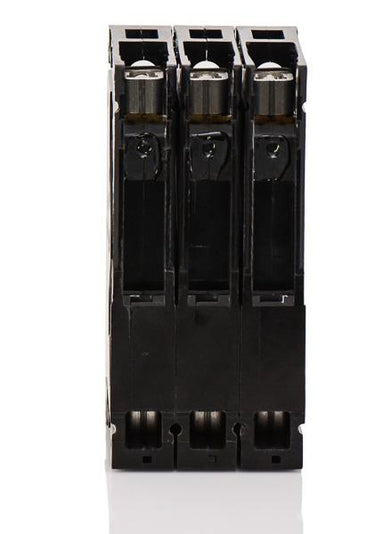

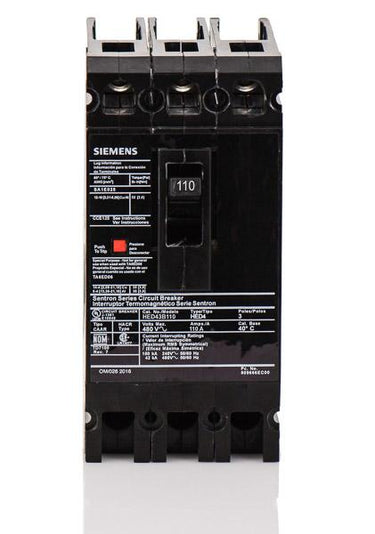

Siemens HED43B125L - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron ED-frame family, this 125A molded case circuit breaker delivers robust high-interrupting capacity for demanding industrial environments. The unit-mount configuration features factory-installed line and load lugs, making it ready for integration into commercial enclosures and motor control centers. While this specific HED4 series model has been succeeded by the 3VA5 architecture, it remains a critical component for maintaining existing 480VAC systems requiring 42kAIC ratings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED43B125L |
| Series | HED4 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat equipment is compatible with the HED43B125L circuit breaker?
This Sentron ED frame breaker is designed for installation in Siemens enclosures, switchboards, and motor control centers that accept unit mount breakers.
What does the "H" in the HED43B125L catalog number signify?
The "H" designates a high-interrupting capacity breaker. This model provides a 42 kAIC rating at 480V AC, which is higher than standard ED4 frame breakers.
What does the "L" suffix in HED43B125L indicate?
The "L" suffix means the breaker is factory-supplied with lugs on both the line and load sides. Standard Siemens ED frame breakers are typically supplied with load side lugs only.
What wire sizes and materials are supported by the HED43B125L lugs?
The factory-installed lugs accept 3 to 3/0 AWG copper (Cu) wire and 1 to 2/0 AWG aluminum (Al) wire.
How is the HED43B125L physically mounted?
It is a unit mount, feed-thru circuit breaker. It bolts directly to the backpan or mounting surface rather than plugging into a busbar system.
Can the HED43B125L be used to replace older ED frame breakers?
Yes, it shares the same physical dimensions and mounting footprint as legacy Siemens Sentron ED4 and HED4 frame breakers, making it a direct replacement for 125A, 3-pole applications.
