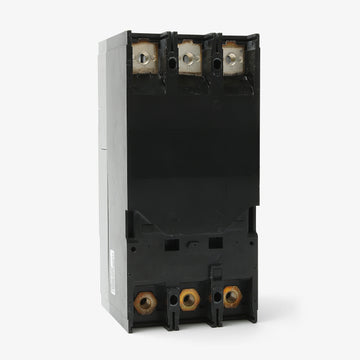

Siemens HFD63B250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Bolt-On
Siemens
HFD63B250
Molded Case Circuit Breaker
Brand
Siemens
SKU
HFD63B250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HFD63B250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens HFD63B250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HFD63B250 |
| Series | HFD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Rotary Handle, Motor Operator, Mechanical Interlock |
|---|---|
| Accessories | Line and Load Lugs Included (TA1FD350A) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit |
Quantity
Siemens HFD63B250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HFD63B250-R |
| Series | HFD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Rotary Handle, Motor Operator, Mechanical Interlock |
|---|---|
| Accessories | Line and Load Lugs Included (TA1FD350A) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy commercial use, the Siemens HFD63B250 is a 3-pole, 250A molded case circuit breaker within the Sentron FD frame family. It provides dependable long-time and instantaneous (LI) protection. This bolt-on breaker is designed to install into Siemens Sentron panelboards, switchboards, and motor control centers. It accommodates wire sizes from 6 AWG to 350 kcmil. With a 65kAIC rating at 480VAC, this HACR-rated unit features an interchangeable trip unit for future flexibility.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HFD63B250 |
| Series | HFD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 350 kcmil (Cu), 4 AWG - 350 kcmil (Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Rotary Handle, Motor Operator, Mechanical Interlock |
|---|---|
| Accessories | Line and Load Lugs Included (TA1FD350A) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
5 answersWhat enclosures and panelboards are compatible with the HFD63B250 breaker?
This bolt-on breaker is designed for installation in Siemens Sentron panelboards, switchboards, and motor control centers that accommodate FD frame molded case circuit breakers.
Is the thermal magnetic trip unit on the HFD63B250 adjustable?
The thermal long-time trip is fixed at 250 amps. However, the instantaneous magnetic trip setting is adjustable, allowing you to fine-tune short circuit protection for coordination with downstream loads.
What wire gauge is supported by the standard lugs on this 250A breaker?
The included lugs accept copper wire from 6 AWG to 350 kcmil, and aluminum conductors from 4 AWG to 350 kcmil. Ensure all connections are torqued to manufacturer specifications during installation.
How does the HFD63B250 differ from standard FD6 series breakers?
The H prefix designates a high interrupting capacity. Standard FD6 breakers typically offer 35kAIC at 480VAC, whereas the HFD63B250 provides 65kAIC at 480VAC for environments with higher available fault currents.
Can the HFD63B250 be utilized in direct current systems?
Yes, this thermal magnetic breaker carries a DC rating. It provides up to 25kAIC at 500VDC, making it suitable for industrial DC control panels and compatible distribution equipment.
