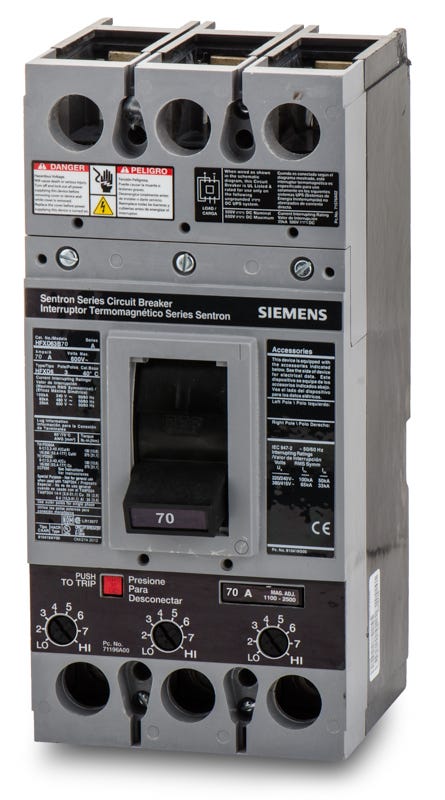

Siemens HFXD63B070L - 70A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HFXD63B070L
Siemens HFXD63B070L 3 Pole Circuit Breaker
Free Shipping Over $99

Siemens HFXD63B070L - 70A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HFXD63B070L
Select Item Condition
Earn 1486 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Siemens HFXD63B070L 3 Pole Circuit Breaker

Siemens HFXD63B070L - 70A 3 Pole Molded Case Circuit Breaker

New

$1486.80 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for heavy-duty industrial applications, the Siemens HFXD63B070L is a 70A, 3-pole molded case circuit breaker from the Sentron FD frame series. It provides robust thermal-magnetic protection for demanding power distribution systems. This unit mount MCCB is engineered for installation in Siemens enclosures and switchboards. It comes equipped with factory-installed line and load side lugs. Offering high interrupting capacity, the breaker is rated for 65kAIC at 480VAC and is HACR rated.

Specifications

Brand Siemens
Series HFXD6
Part Number HFXD63B070L
Amperage 70A
Voltage 240VAC, 480VAC, 600VAC, 500VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Siemens Enclosures, Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic
Wire Gauge 6 AWG - 350 kcmil (Cu/Al)
Max Wire 350 kcmil
Min Wire 6 AWG
Available Options Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Motor Operator, Rotary Handle
Accessories Line and Load Side Lugs
Standards HACR, IEC 60947-2, UL 489
Approval CE, CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed
