Siemens HGG2B050L - 50A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HGG2B050L
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

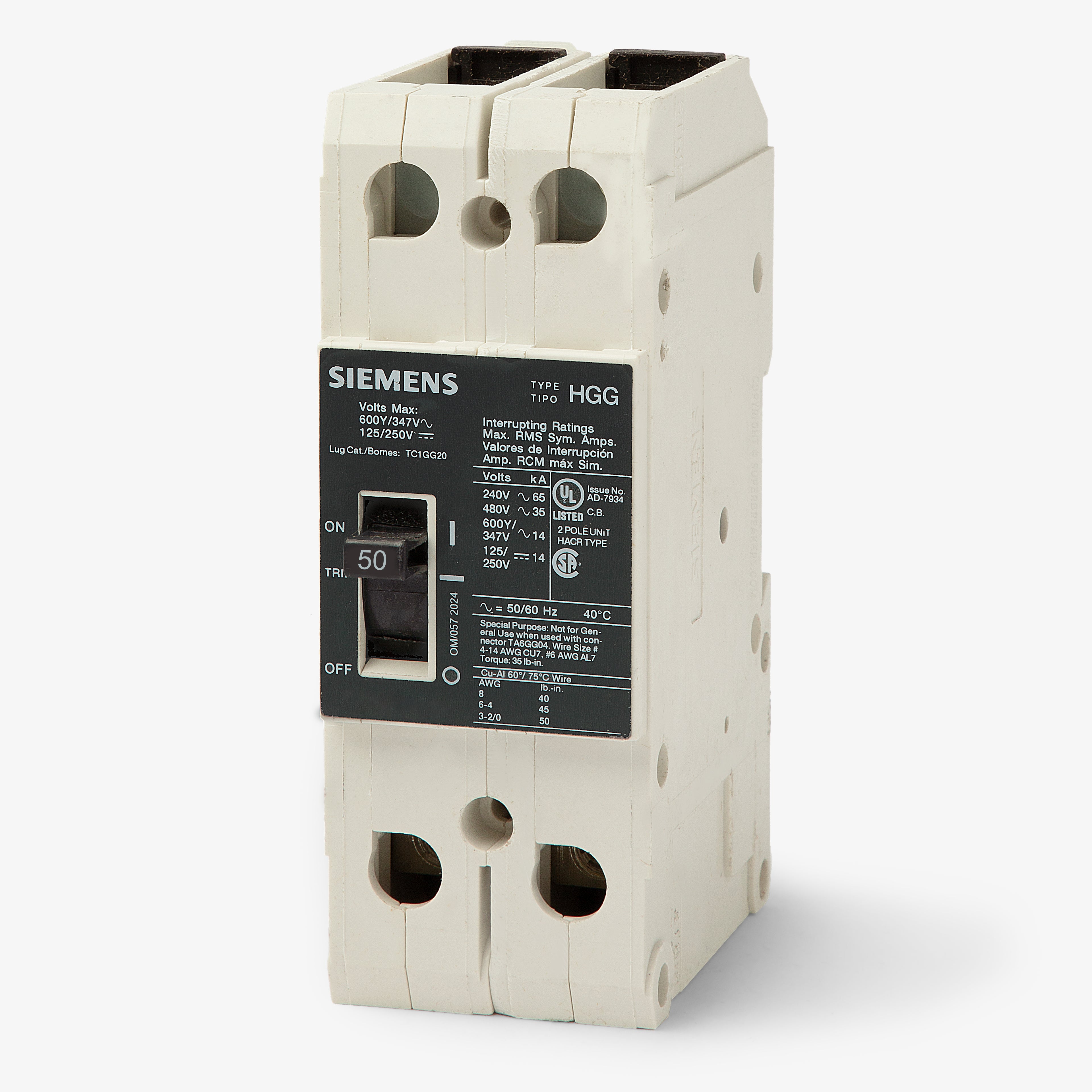

Siemens HGG2B050L - 50A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HGG2B050L
Select Item Condition
Earn 522 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens HGG2B050L - 50A 2 Pole Molded Case Circuit Breaker

New

$522.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed for reliable power distribution, the Siemens HGG2B050L is a high-performance 2-pole, 50A molded case circuit breaker. Utilizing fixed thermal and magnetic trip units, it provides essential long-time and instantaneous (LI) protection for commercial and industrial systems. This unit mount breaker is engineered for use in Siemens enclosures, control panels, and DIN rail applications. With a 65kAIC rating at 240V, it replaces legacy NGG units and is replaced by the 3VA51 series.

Specifications

Brand Siemens
Series HGG
Amperage 50A
Voltage 240VAC, 480VAC, 600Y/347VAC, 250VDC
Poles 2
Phase 1
AIC Rating 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 30kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Siemens Enclosures, DIN Rail, Industrial Control Panels
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 8-1/0 AWG (Cu), 8-2/0 AWG (Al)
Max Wire 1/0 AWG (Cu) / 2/0 AWG (Al)
Min Wire 8 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Rotary Handle, Padlock Attachment
Accessories Line and Load Side Lugs (3TC1GG20)
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, HACR, HID, UL
Temp Rating 40C
