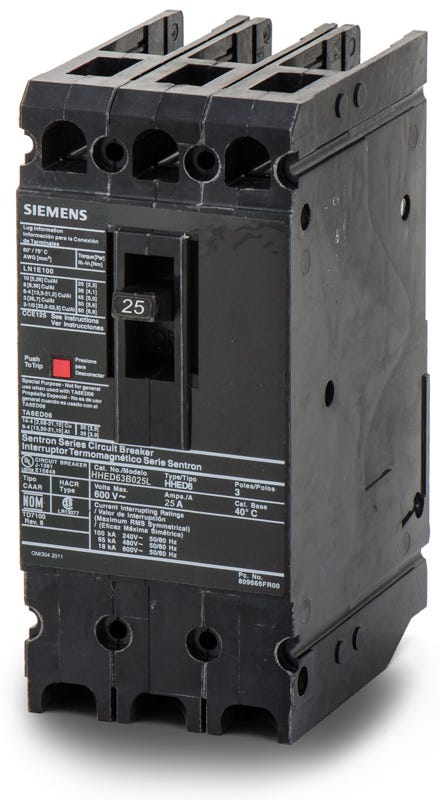

Siemens HHED63B025L - 25A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HHED63B025L
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens HHED63B025L - 25A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HHED63B025L
Select Item Condition
Earn 1421 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens HHED63B025L - 25A 3 Pole Molded Case Circuit Breaker

New

$1421.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for standalone enclosures and motor control centers, this 25A unit-mount MCCB offers versatile installation outside of standard panelboards. The inclusion of factory-installed SA1E025 line and load lugs accelerates the wiring process for electrical contractors. Operating with a fixed thermal-magnetic trip, the HHED63B025L achieves a 65kAIC rating at 480VAC. This Sentron ED-frame component provides current-limiting, reverse-feed capable protection for rigorous industrial applications.

Specifications

Brand Siemens
Series HHED6
Part Number HHED63B025L
Amperage 25A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Enclosures, Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-10 AWG (Cu), 12-10 AWG (Al)
Max Wire 10 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Line and Load Lugs Included (SA1E025)
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489
Approval CSA, UL, IEC
Temp Rating 40C
Construction Features Extra High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Reverse Feed
