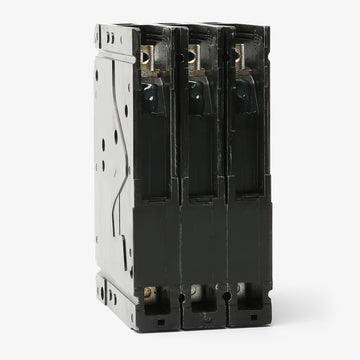

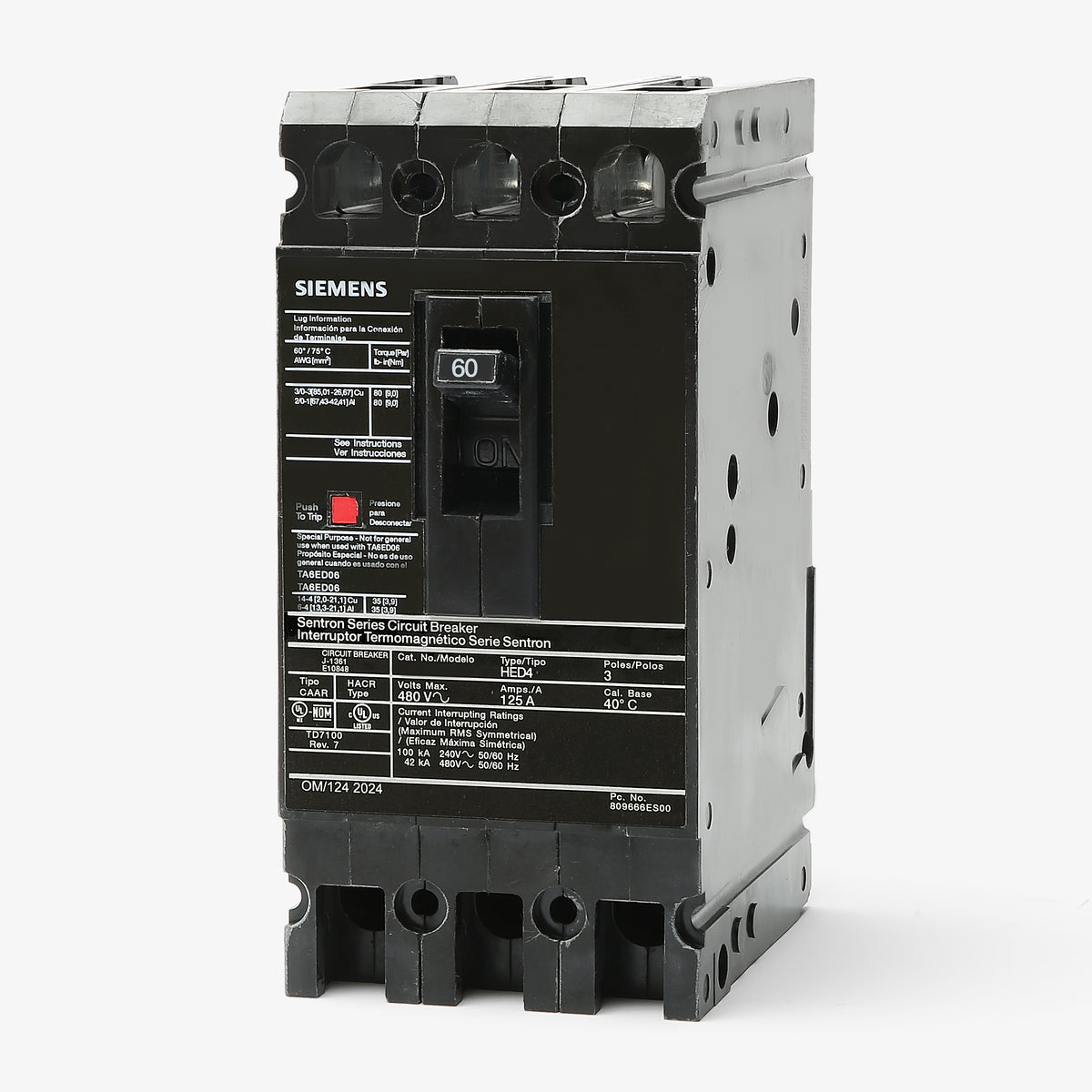

Siemens HHED63B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
HHED63B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
HHED63B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HHED63B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens HHED63B060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHED63B060 |
| Series | HHED6 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity |
Quantity
Siemens HHED63B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HHED63B060-R |
| Series | HHED6 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
The HHED63B060 is a 3-pole, 60A molded case circuit breaker from Siemens' Sentron ED Frame family. Built for commercial applications, it provides reliable thermal-magnetic overcurrent protection for 600VAC systems. This breaker mounts into Siemens P1, P2, and P3 panelboards as well as compatible switchboards. Rated for an extra-high interrupting capacity of 65kAIC at 480V and 100kAIC at 240V, it features non-interchangeable LI trip functions and comes equipped with load-side lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HHED63B060-R |
| Series | HHED6 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Extra High Interrupting Capacity |
Product FAQs
4 answersWhich panelboards accept the HHED63B060 breaker?
This Sentron ED-frame breaker is engineered for installation in Siemens P1, P2, and P3 panelboards and switchboards. It requires the correct branch mounting hardware kit specific to the panelboard series being used.
What type of line and load connections are used on this breaker?

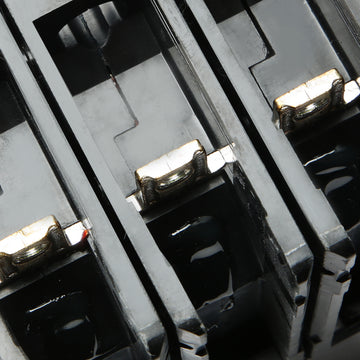

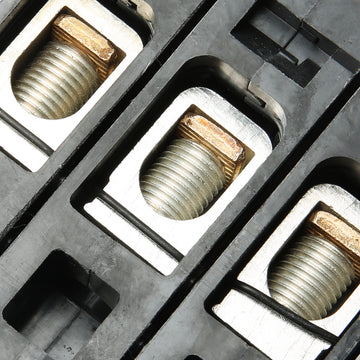

As a bolt-on breaker, the line side mounts directly to the panelboard bus using bolt-on hardware. The load side features mechanical lugs that accept stranded or solid wire.
What is the difference between an HHED6 and a standard ED6 breaker?
The HH prefix designates this as an ultra-high interrupting molded case breaker. It is capable of clearing significantly higher fault currents than standard ED4 or ED6 frames while sharing the exact same physical footprint.
Can this Siemens breaker be used to replace a legacy ITE unit?
Yes. Siemens continues to manufacture the Sentron ED-frame series originally developed by ITE. This breaker will serve as a direct, drop-in replacement for an older ITE-branded unit that carries the same catalog number.
