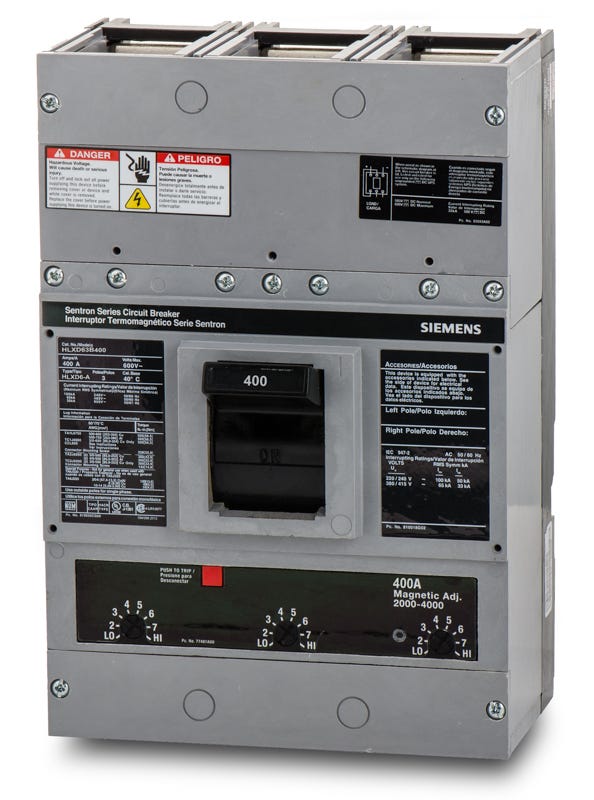

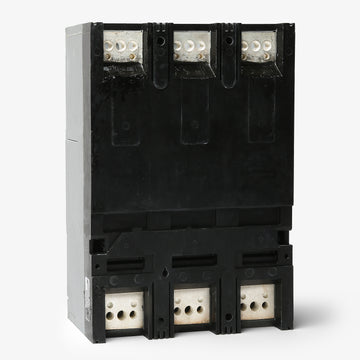

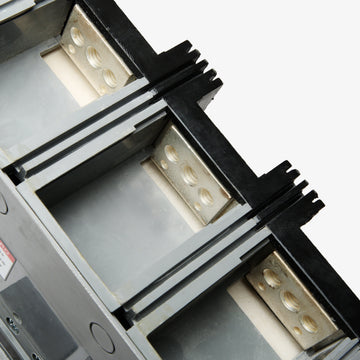

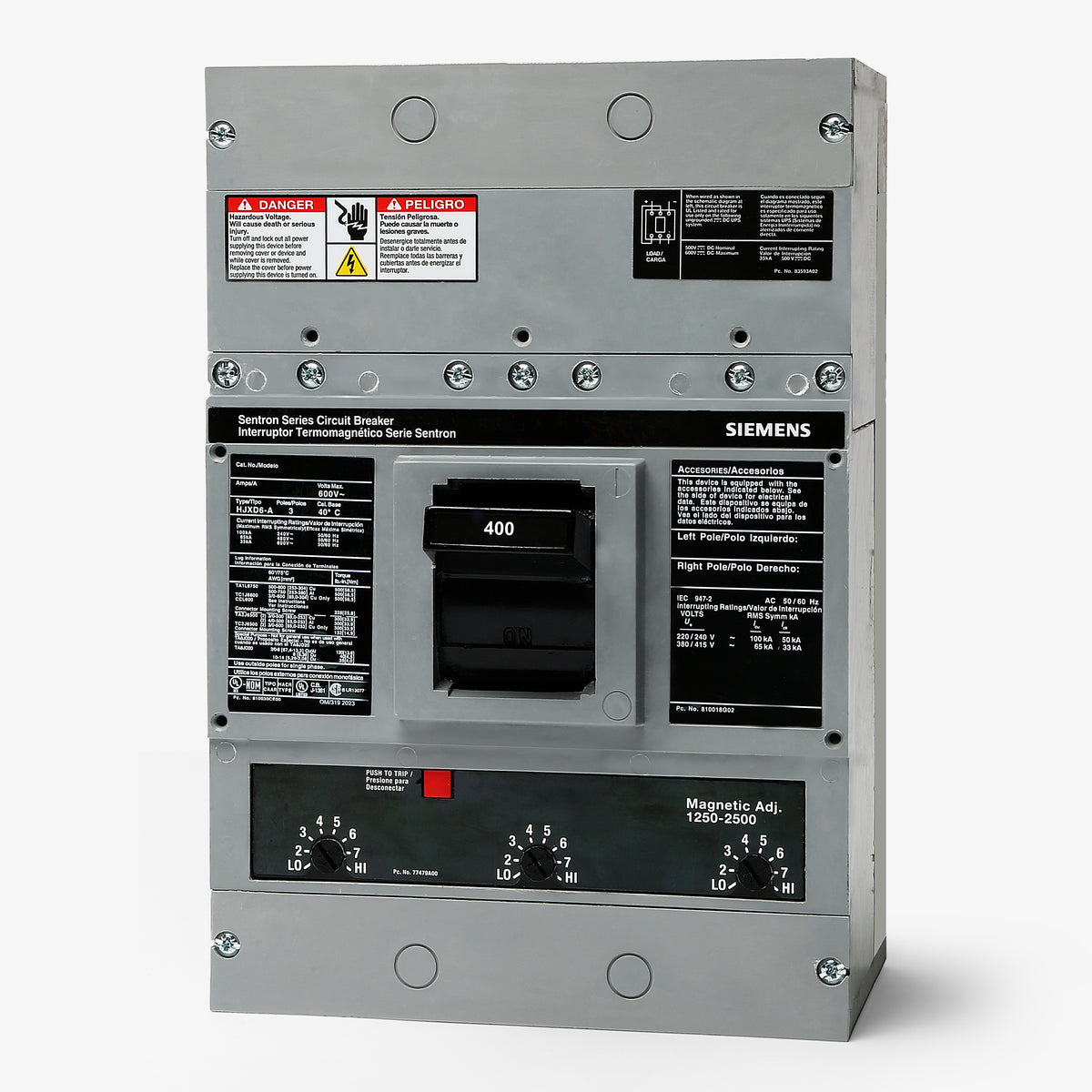

Siemens HLXD63B400 Circuit Breaker
- 400
- 3 Pole
- Unit
Siemens
HLXD63B400
Circuit Breaker
Brand
Siemens
SKU
HLXD63B400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HLXD63B400 3 Pole Circuit Breaker
New
Quantity
Quantity
Siemens HLXD63B400 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HLXD63B400 |
| Series | Sentron |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Sentron Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Lugs Not Included |
| Standards | RoHS, REACh |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Non-Interchangeable Trip, HACR Rated |
Quantity
Siemens HLXD63B400 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | Sentron |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Sentron Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Lugs Not Included |
| Standards | RoHS, REACh |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Non-Interchangeable Trip, HACR Rated |
Similar Items
500A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
Description
Siemens HLXD63B400 3 Pole Circuit Breaker
The Siemens HLXD63B400 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The HLXD63B400 has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | HLXD63B400 |
| Series | Sentron |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Sentron Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Lugs Not Included |
| Standards | RoHS, REACh |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Non-Interchangeable Trip, HACR Rated |
Product FAQs
6 answersWhat is the difference between Siemens HLD and HLXD circuit breakers?
The HLXD series, including the HLXD63B400, features a factory-sealed, non-interchangeable trip unit. Standard HLD breakers have interchangeable trip units. The non-interchangeable design is required by UL for reverse-feed applications.
Can the Siemens HLXD63B400 be reverse fed?
Yes. Because it is manufactured with a non-interchangeable trip unit, this breaker is UL Listed for reverse-feed applications.
What is the standard lug wire range for this 400A LD-frame breaker?
When fitted with standard TA2J6500 mechanical lugs, the breaker accepts two 3/0 AWG to 500 kcmil copper or aluminum conductors per phase.
How is the trip unit configured on the HLXD63B400?
It features an LI (Long-Time and Instantaneous) thermal-magnetic trip unit. The thermal protection for overloads is fixed at 400 amps, while the magnetic protection for short circuits is adjustable from 2000 to 4000 amps.
Is the HLXD63B400 a 100% rated circuit breaker?
No, this is a standard 80% rated breaker. For a 100% rated version of this breaker, a special catalog number with an H suffix is required, and it must be installed with 90-degree Celsius copper wire sized at the 75-degree ampacity.
Can this 3-pole breaker be used in a single-phase application?
Yes. When applying this 3-pole breaker in a single-phase system, Siemens recommends wiring across the two outside poles.
