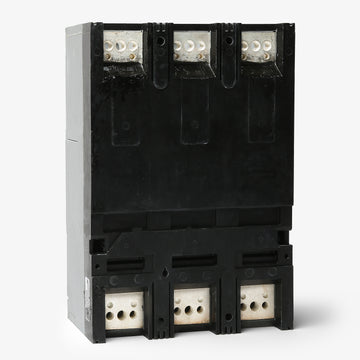

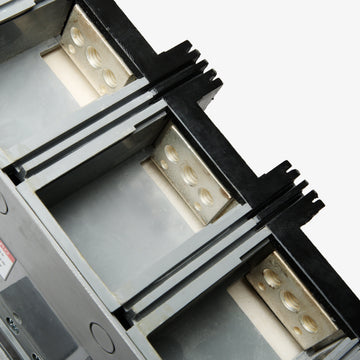

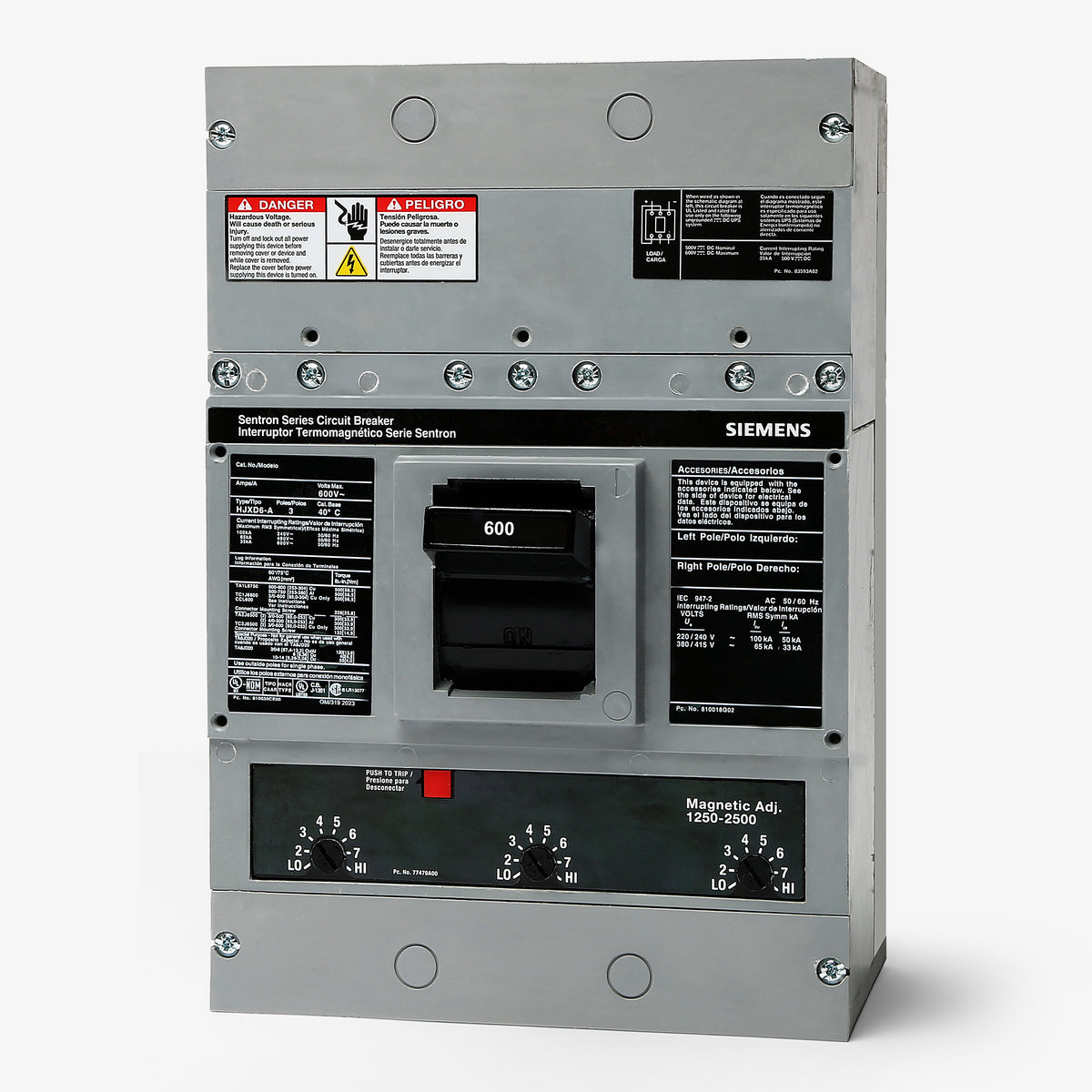

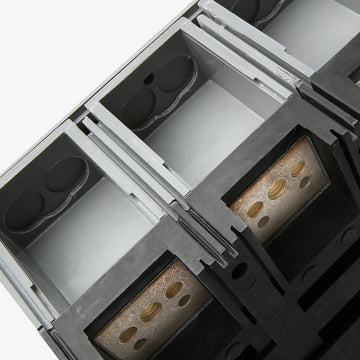

Siemens LXD63B600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
Siemens
LXD63B600
Molded Case Circuit Breaker
Brand
Siemens
SKU
LXD63B600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens LXD63B600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens LXD63B600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LXD63B600 |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Mounting Hardware, Lugs Not Included (Requires TA2J6500) |
| Standards | HACR, IEC 60947-2, RoHS, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, HACR Rated, Reverse Feed |
Quantity
Siemens LXD63B600 - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LXD63B600-R |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Mounting Hardware, Lugs Not Included (Requires TA2J6500) |
| Standards | HACR, IEC 60947-2, RoHS, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, HACR Rated, Reverse Feed |
Similar Items
600A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Siemens LXD63B600 is a 3-pole, 600A molded case circuit breaker. It belongs to the Sentron LD frame series and delivers reliable LI protection with an adjustable magnetic trip. This breaker mounts into Siemens P4 and P5 panelboards or switchboards. It is reverse-feed capable and requires TA2J6500 lug kits for termination. Delivering a 35kAIC rating at 480VAC, this HACR-rated unit is ideal for demanding commercial and industrial environments.Specifications
| Brand | Siemens |
|---|---|
| Part Number | LXD63B600 |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Mounting Hardware, Lugs Not Included (Requires TA2J6500) |
| Standards | HACR, IEC 60947-2, RoHS, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, HACR Rated, Reverse Feed |
Product FAQs
8 answersWhich panelboards and switchboards accept the Siemens LXD63B600?
This LD frame molded case circuit breaker is designed for unit mounting in Siemens P4 and P5 panelboards, as well as compatible Siemens switchboards.
What is the difference between the LXD63B600 and the LD63B600?
The LXD63B600 features a factory assembled, non interchangeable trip unit. The LD63B600 uses the same LD frame but includes an interchangeable trip unit, allowing for field modifications to the continuous current rating.
How does the trip unit adjustability work on this breaker?
The LXD63B600 features a thermal magnetic trip unit with a fixed thermal element for long time overload protection and an adjustable magnetic element for instantaneous short circuit protection.
What lug kits are used for termination on the LXD63B600?
The standard line and load connections for this breaker utilize TA2J6500 lug kits, which accept 3/0 AWG to 500 kcmil copper or aluminum wire.
Is the LXD63B600 breaker rated for reverse feed installations?
Yes, this circuit breaker is UL listed for reverse feed applications, meaning the line and load power connections can be safely swapped if dictated by your enclosure layout.
What does the LXD6 prefix indicate in the part number?
The LXD6 prefix designates a Siemens Sentron LD frame breaker that includes a standard interrupting capacity and a non interchangeable thermal magnetic trip unit.
Is the LXD63B600 suitable for HVAC applications?
Yes, this breaker carries an HACR rating, making it approved for multi motor group protection in commercial heating, air conditioning, and refrigeration equipment.
Is the LXD63B600 rated for 100 percent continuous current?
No, the standard LXD63B600 is an 80 percent rated breaker. For applications requiring a 100 percent continuous current rating, you must specify the LXD63B600H variant and use 90C rated copper wire.
