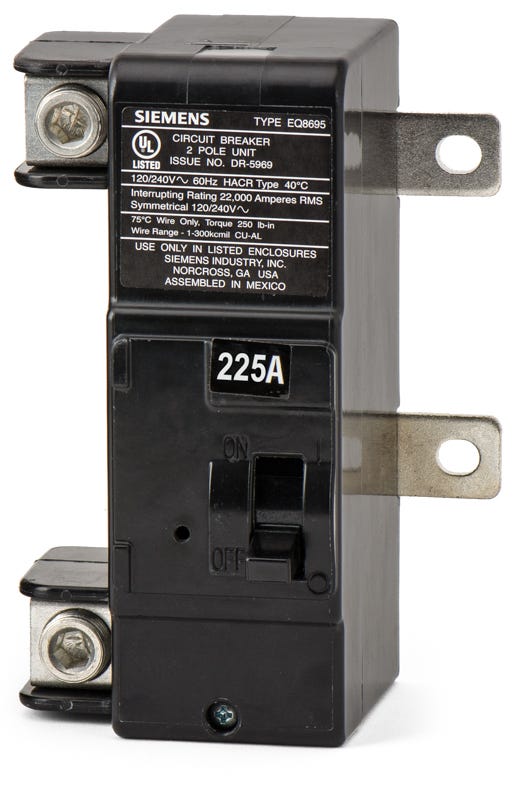

Siemens MBK225A - 225A 2 Pole Main Breaker Kit
New
Quantity
Quantity
Siemens MBK225A - 225A 2 Pole Main Breaker Kit
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | MBK225A |
| Series | MBK |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Ultimate Load Centers, PL Series, ES Series |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Mounting Hardware, Line Side Lugs Included |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker Kit, 22kA Interrupt Rating, HACR Rated, For Ultimate Load Centers |
Sold out
Quantity
Siemens MBK225A - 225A 2 Pole Main Breaker Kit
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | MBK225A-R |
| Series | MBK |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Ultimate Load Centers, PL Series, ES Series |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Mounting Hardware, Line Side Lugs Included |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker Kit, 22kA Interrupt Rating, HACR Rated, For Ultimate Load Centers |
Similar Items
150A 2 Pole Main Breaker Kit
125A 2 Pole Main Breaker Kit
125A 2 Pole Main Breaker Kit
Description
Built for residential and light commercial applications, the Siemens MBK225A is a 2-pole, 225A main breaker kit rated for 120/240VAC. It provides essential overcurrent and short-circuit protection for your electrical system's service entrance. This bolt-on main breaker is specifically engineered to install into Siemens Ultimate, PL Series, and ES Series load centers. It serves as an exact replacement for the legacy MBK225. Featuring thermal-magnetic trip technology, it delivers a 22kA rating.Specifications
| Brand | Siemens |
|---|---|
| Part Number | MBK225A |
| Series | MBK |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Ultimate Load Centers, PL Series, ES Series |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Mounting Hardware, Line Side Lugs Included |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker Kit, 22kA Interrupt Rating, HACR Rated, For Ultimate Load Centers |
