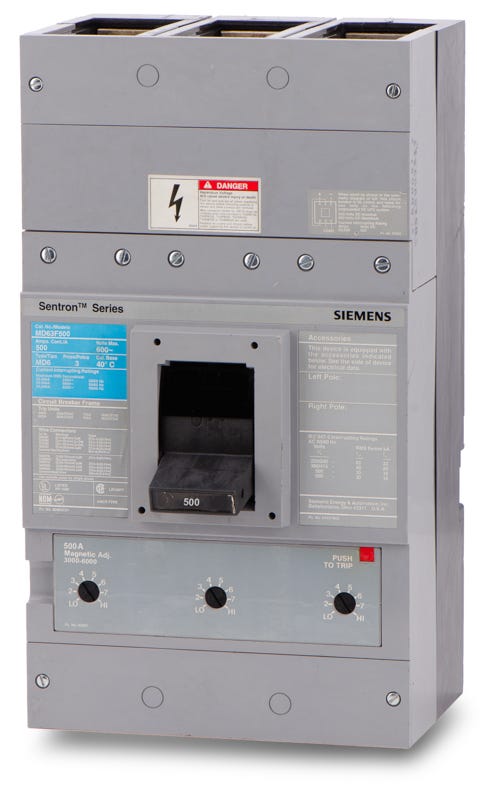

Siemens MD63B500 Molded Case Circuit Breaker
- 500A
- 3 Pole
- Unit Mount
Siemens
MD63B500
Molded Case Circuit Breaker
Brand
Siemens
SKU
MD63B500
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens MD63B500 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
700A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty industrial use, the MD63B500 is a 3-pole molded case circuit breaker from the Siemens Sentron family. It features an interchangeable thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings for precise long-time and instantaneous (LI) protection. This 500A breaker mounts into Siemens S4, S5, P4, and P5 panelboards, as well as SB switchboards. It delivers a 50kAIC rating at 480V and includes TA3K500 line and load side lugs for installation.Specifications
| Brand | Siemens |
|---|---|
| Part Number | MD63B500 |
| Series | MD6 |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 25kA @ 250VDC |
| Frame Type | MD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens S4, S5, P4, P5, SPP, FPP Panelboards, SB1, SB2, SB3 Switchboards, Motor Control Centers |
| Wire Gauge | (3) 1/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs (TA3K500) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
7 answersWhat panelboards and switchboards accept the MD63B500?
This breaker is compatible with Siemens S4, S5, P4, P5, SPP, and FPP panelboards, as well as SB1, SB2, and SB3 switchboards. Note that installing this unit-mount breaker into a panelboard requires the appropriate strap kit for your specific enclosure.
What is the standard lug capacity for the MD63B500?
The factory-installed lugs accept up to three conductors per phase. They are rated for 1/0 AWG to 500 kcmil wire and are compatible with both copper and aluminum conductors.
How does the thermal-magnetic trip unit operate on this model?
The trip unit provides LI (Long-Time and Instantaneous) protection. It features a fixed thermal element for standard overload conditions and an adjustable magnetic element, allowing you to fine-tune the instantaneous short-circuit trip threshold.
Is the MD63B500 a direct replacement for legacy I-T-E breakers?
Yes. Because Siemens acquired I-T-E, this breaker is a direct drop-in replacement for older I-T-E branded MD frame breakers sharing the MD63B500 catalog number.
What is the correct replacement lug kit for the MD63B500?
If you need to replace the factory lugs, the correct 3-barrel lug kit is catalog number TA3K500. This kit is designed specifically for Siemens MD and ND frame breakers.
Is this breaker rated for DC applications?
Yes. While primarily used in AC systems up to 600VAC, it is also fully rated for 250VDC applications, providing a 25kA interrupting capacity for direct current circuits.
Does this breaker feature a push-to-trip button?
Yes. The MD63B500 includes a red push-to-trip button on the front of the breaker, allowing you to manually exercise the tripping mechanism and verify proper mechanical operation.
