Siemens MP245 Miniature Circuit Breaker
- 45A
- 2 Pole
- Plug-On
Siemens
MP245
Miniature Circuit Breaker
Brand
Siemens
SKU
MP245
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

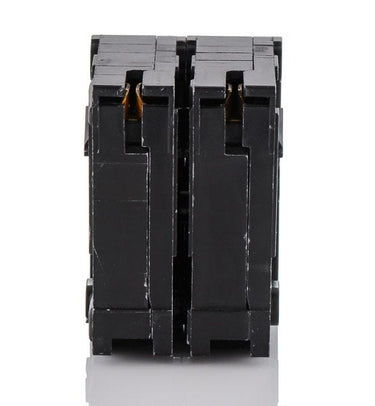

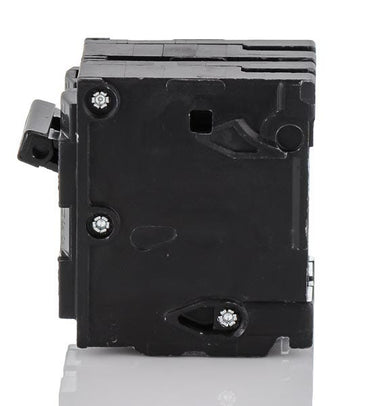

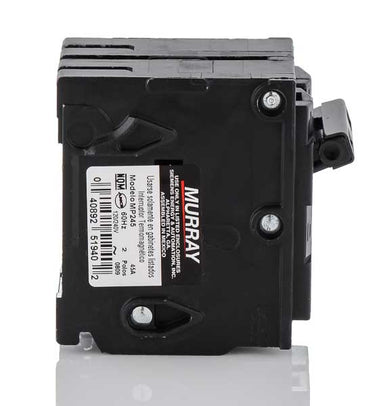

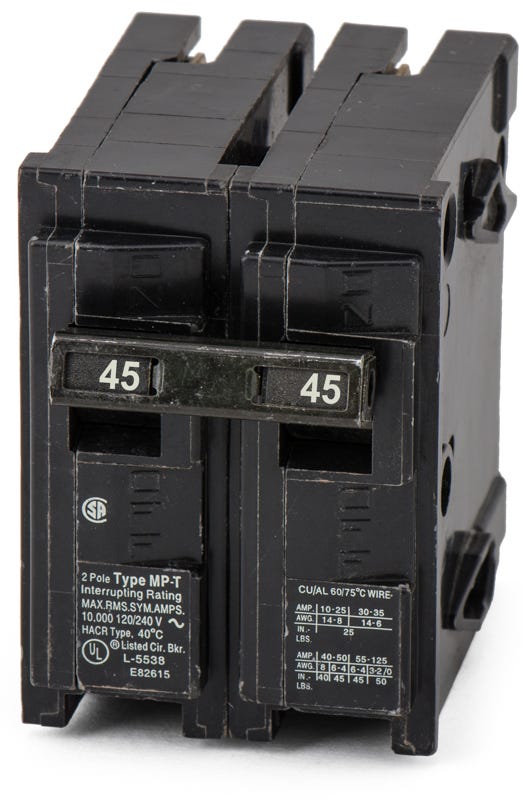

Siemens MP245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
Description
Engineered to streamline installation, this 45-amp, two-pole miniature circuit breaker provides robust thermal-magnetic protection. It handles residential branch circuits requiring a specific 45A rating. This breaker mounts into Murray and Siemens plug-on load centers. It serves as a reliable component for existing panels and is officially replaced by the Siemens Q245 model for newer system upgrades.Specifications
| Brand | Siemens |
|---|---|
| Part Number | MP245 |
| Series | MP |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Insta-Wire |
Product FAQs
5 answersIs the MP245 compatible with older Murray load centers?
Yes, this breaker is specifically designed for Murray load centers that accept MP-T frame plug-in breakers. It is also compatible with Siemens load centers, as Siemens now manufactures the Murray product line.
What is the direct Siemens replacement for the Murray MP245?
The Siemens Q245 (QP series) is the official, UL listed replacement for the MP245. Siemens acquired Murray and cross-references the QP line as the direct substitute for legacy MP-T breakers.
What wire gauges and materials are approved for the MP245 terminals?
The load lugs accept 8 to 6 AWG copper (Cu) conductors or 8 to 4 AWG aluminum (Al) conductors. Always apply the correct torque as specified on the breaker label to ensure a secure connection.
How does the thermal-magnetic trip unit function on the MP245?
The breaker uses a fixed thermal element to provide long-time protection against sustained overloads, combined with a fixed magnetic element for instantaneous tripping during short circuits.
Is it safe to substitute other breaker brands in a panel designed for the MP245?
No. Even if breakers from brands like Eaton or Cutler-Hammer physically fit, they are not UL listed for Murray or Siemens enclosures. Using unapproved breakers can cause poor bus bar contact, arcing, and inspection failures.
